| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-016-540-268 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 16 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-016-540-268 |
337-016-540-268
| Heilind Number: | EDA337-016-540-268 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-016-540-268 |
| ECAD Model: | |
Description:

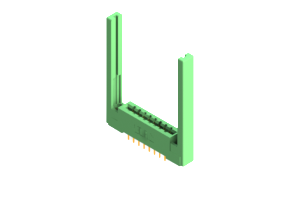

337 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 16 Wire Wrap contacts. The tails are .025"Sq' (0.64mm Sq') and .560" (14.22mm) long in a Double Row formation. The Insulator is Green in color and has Flush Mounting Lugs with .344" (8.74mm) Offset Card Guides.
More >>Specifications
Detailed Description
Introducing the 337-016-540-268, a high-performance Card Edge Connector designed for seamless board-to-board connections. This two-row connector features 16 positions, with a pitch of .156 inches and row spacing of .2 inches, ensuring secure and precise connectivity. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, this connector offers reliable performance in demanding environments. With a current rating of 3A and an operating temperature range of -40 to 105°C, it is suitable for a wide range of applications. Its straight mount orientation and sleek green design make it a versatile and visually appealing choice for your PCB connection needs. Trust in the 337-016-540-268 for efficient and dependable connectivity in your projects.
