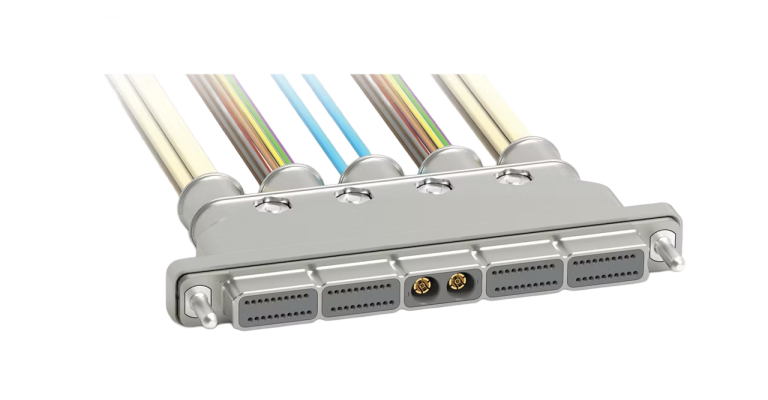

Molex AirBorn SInergy Series - High-Speed Hybrid Connectors
Molex AirBorn SInergy connectors combine high-speed signal, power, and RF connectivity in a compact, rugged interface for aerospace, defense, and space systems. With one to five configurable bays, designers can tailor contact combinations to application requirements while reducing connector count and board congestion. Tested to MIL-DTL-83513 performance requirements, SInergy connectors offer reliable connectivity for mission-critical systems exposed to shock, vibration, moisture, and extreme temperatures.
Features
Segments
Applications
Resources
Features
- Voltage: up to 250V AC (RMS)
- Current: up to 2.5A (HD) or 25.0A (Power)
- Pitch: 0315″ (0.8mm) Signal and 0.173″ (4.39mm) SMPM RF Pitch
- One to five configurable bays combine high-density signal, power, and SMPM RF interfaces
- Signal modules support up to 25 Gbps per lane, RF modules support frequencies up to 40 GHz, and power contacts are rated up to 25 A
- Four-point signal contacts and rugged metal housings support reliable connections and EMI/RFI shielding
- Vertical and right-angle board-mount options, panel mounts, and cable assemblies accommodate varied system layouts
Segments
- Military & Defense
- Aerospace & Avionics
- Space Systems
Applications
- Avionics and head-up displays
- Unmanned aerial systems
- Radar and missile systems
- Combat vehicles and tactical communications
- Satellites, CubeSats, and space-based imaging systems
