| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Part Number: | Cinch Connectivity Solutions MS24265R16B10S9 L/C |
| Gender: | Female |
| Mount Type: | Panel Mount |
| Shell Size: | 16 |
| Mating Type: | Bayonet |
| Shell Finish: | Anodized |
| Mating Cycles: | 500 cycle |
| Seal Material: | Fluorosilicone, Silicone Rubber |
| Current Rating: | 13 A |
| Voltage Rating: | 1500 VAC |
| Housing Material: | Aluminum |
| Number of Contacts: | 10 |
| Termination Method: | Crimp |
| Military Specification: | MIL-C-26500 |
| Maximum Operating Temperature: | 200 °C |
| Minimum Operating Temperature: | -55 °C |
| Shell Size - Insert Arrangement: | 16-10 |
| Series: | Omega |
| Shell Type: | Single Hole Mount Receptacle |
| Contact Type: | Socket |
| Shell Material: | Aluminum |
| Without Contacts: | Yes |
| Locking Mechanism: | Bayonet |
| Insert Arrangement: | 16-10 |
| SKU: | CIMMS24265R16B10S9 L/C |

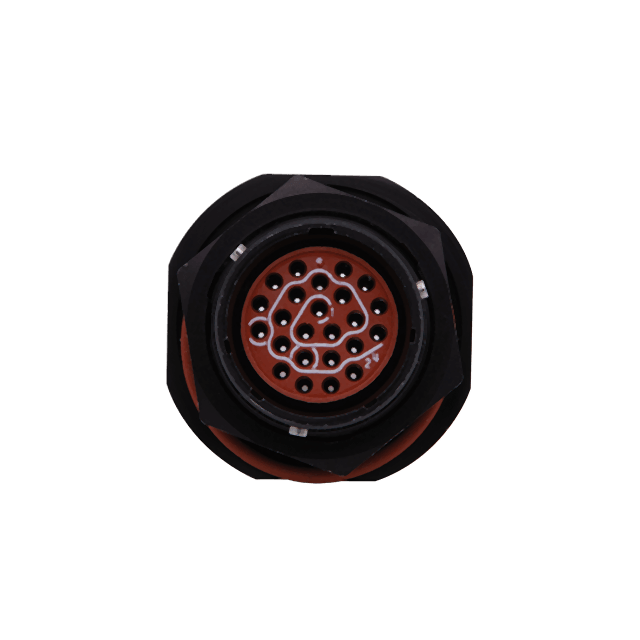

MS24265R16B10S9 L/C
| Heilind Number: | CIMMS24265R16B10S9 L/C |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Number: | MS24265R16B10S9 L/C |
| ECAD Model: | |
Specifications
Detailed Description
This MIL-DTL-26500 military specification Omega Series female connector, designated by SKU MS24265R16B10S9 L/C, offers high-reliability performance in demanding environments. Featuring a rugged aluminum housing with a panel mount design and bayonet mating type, this connector ensures secure and efficient connections. With a shell size of 16 and accommodating 10 contacts via crimp termination, it is suitable for a wide range of applications. The assembly, rated for a maximum operating temperature of 200 °C and a minimum of -55 °C, boasts excellent durability. Please note that this product does not ship with contacts.
