| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Part Number: | Cinch Connectivity Solutions MS24264R16T24P7 L/C |
| Military Specification: | MIL-C-26500 |
| Series: | Omega |
| Gender: | Male |
| Housing Material: | Aluminum |
| Number of Contacts: | 24 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 200 °C |
| Minimum Operating Temperature: | -55 °C |
| Shell Size: | 16 |
| Contact Type: | Pin |
| Mating Type: | Threaded |
| Seal Material: | Fluorosilicone, Silicone Rubber |
| Shell Size - Insert Arrangement: | 16-24 |
| Shell Material: | Aluminum |
| Mating Cycles: | 200 cycle |
| Shell Type: | Square Flange Receptacle |
| Shell Finish: | Anodized |
| Current Rating: | 7.5 A |
| Voltage Rating: | 1500 VAC |
| Insert Arrangement: | 16-24 |
| Locking Mechanism: | Threaded |
| Without Contacts: | Yes |
| SKU: | CIMMS24264R16T24P7 L/C |

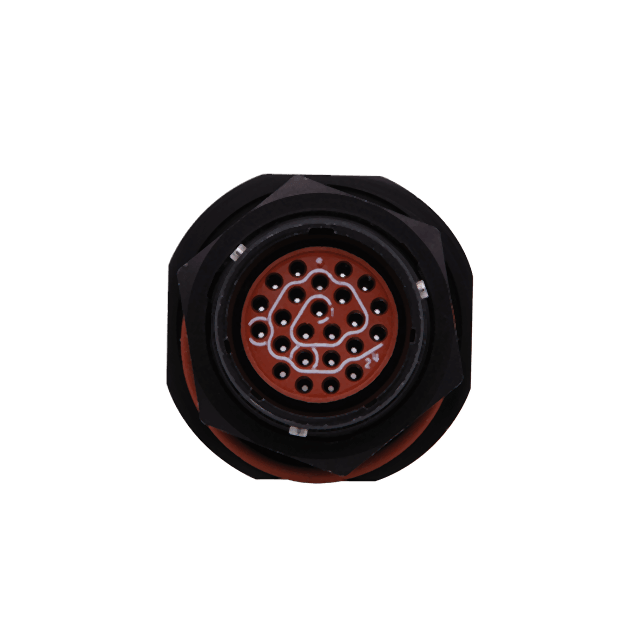

MS24264R16T24P7 L/C
| Heilind Number: | CIMMS24264R16T24P7 L/C |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Number: | MS24264R16T24P7 L/C |
| ECAD Model: | |
Specifications
Detailed Description
The Omega MIL-DTL-26500 series connector, featuring the rugged L/C designation, is a vital component for high-reliability applications in demanding environments. Constructed with durable aluminum housing and boasting military-grade specifications, this male connector ensures optimal performance in the harshest conditions. With 24 shell size 16 contacts and a panel mount configuration, it offers secure and efficient connectivity. Termination is easily facilitated through the reliable crimp method, guaranteeing robust contact integrity. Operating flawlessly across a wide temperature range from -55°C to 200°C, and with a voltage rating of 1500 VAC, this connector is ideal for critical systems. Please note, this assembly does not ship with contacts.
