| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Part Number: | Cinch Connectivity Solutions MS24264R16T10S9 L/C |
| Gender: | Female |
| Mount Type: | Panel Mount |
| Shell Size: | 16 |
| Mating Type: | Threaded |
| Shell Finish: | Anodized |
| Mating Cycles: | 200 cycle |
| Seal Material: | Fluorosilicone, Silicone Rubber |
| Current Rating: | 13 A |
| Voltage Rating: | 1500 VAC |
| Housing Material: | Aluminum |
| Number of Contacts: | 10 |
| Termination Method: | Crimp |
| Military Specification: | MIL-C-26500 |
| Maximum Operating Temperature: | 200 °C |
| Minimum Operating Temperature: | -55 °C |
| Shell Size - Insert Arrangement: | 16-10 |
| Series: | Omega |
| Shell Type: | Square Flange Receptacle |
| Contact Type: | Socket |
| Shell Material: | Aluminum |
| Without Contacts: | Yes |
| Locking Mechanism: | Threaded |
| Insert Arrangement: | 16-10 |
| SKU: | CIMMS24264R16T10S9 L/C |

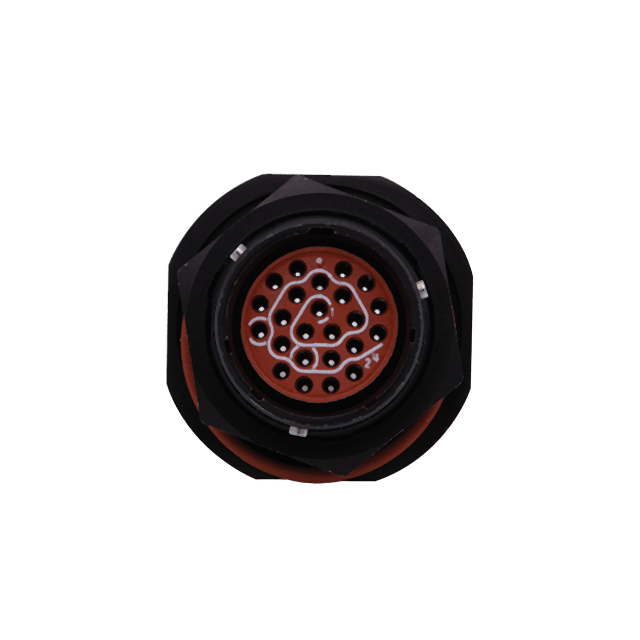

MS24264R16T10S9 L/C
| Heilind Number: | CIMMS24264R16T10S9 L/C |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Number: | MS24264R16T10S9 L/C |
| ECAD Model: | |
Specifications
Detailed Description
The MIL-DTL-26500 Omega series female connector, featuring a durable aluminum housing and a panel mount design, is engineered for high-reliability applications in demanding environments. With a shell size of 16 and a 10-contact arrangement, this connector ensures secure and efficient connectivity. Its crimp termination method and silicone rubber/fluorosilicone seals guarantee excellent performance even in extreme temperatures ranging from -55 °C to 200 °C. Anodized for added durability, this connector has a maximum voltage rating of 1500 VAC and a current rating of 13 A. Please note that this assembly does not ship with contacts.
