| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Part Number: | Cinch Connectivity Solutions MS24264R14B4S6 L/C |
| Military Specification: | MIL-C-26500 |
| Series: | Omega |
| Gender: | Female |
| Housing Material: | Aluminum |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 200 °C |
| Minimum Operating Temperature: | -55 °C |
| Shell Size: | 14 |
| Contact Type: | Socket |
| Mating Type: | Bayonet |
| Seal Material: | Fluorosilicone, Silicone Rubber |
| Shell Size - Insert Arrangement: | 14-4 |
| Shell Material: | Aluminum |
| Mating Cycles: | 500 cycle |
| Shell Type: | Square Flange Receptacle |
| Shell Finish: | Anodized |
| Current Rating: | 23 A |
| Voltage Rating: | 1500 VAC |
| Insert Arrangement: | 14-4 |
| Locking Mechanism: | Bayonet |
| Without Contacts: | Yes |
| SKU: | CIMMS24264R14B4S6 L/C |
MS24264R14B4S6 L/C
| Heilind Number: | CIMMS24264R14B4S6 L/C |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Number: | MS24264R14B4S6 L/C |
| ECAD Model: | |
Specifications
Detailed Description

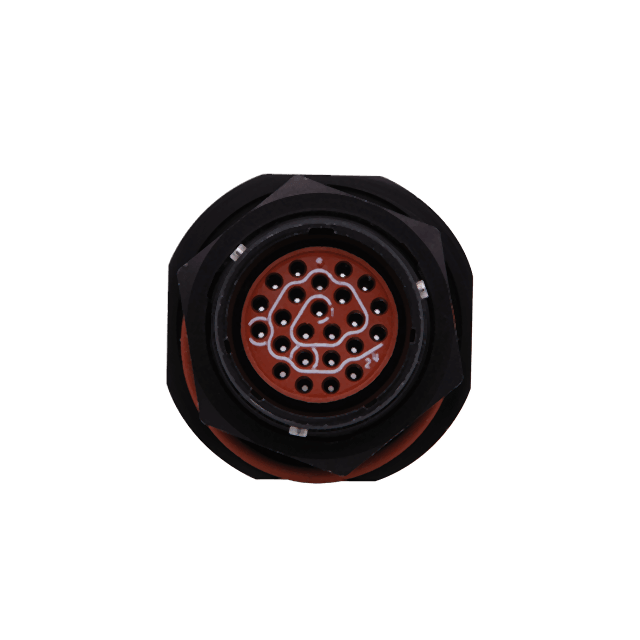

The Omega series MS24264R14B4S6 L/C Circular Connector offers high-reliability performance, meeting stringent MIL-DTL-26500 military specifications. Designed for female panel mount installation, this connector features a durable aluminum housing with a shell size of 14 and a robust bayonet mating type, ensuring secure connections in harsh environments. With a wide operating temperature range from -55°C to 200°C and a voltage rating of 1500 VAC, it is suitable for demanding applications. The shell is finished with a protective anodized coating, and the seal is made of silicone rubber and fluorosilicone for enhanced durability. Please note that this assembly does not ship with contacts.
