| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Part Number: | Cinch Connectivity Solutions MS24264R14B4PY |
| Military Specification: | MIL-C-26500 |
| Series: | Omega |
| Gender: | Male |
| Housing Material: | Aluminum |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 200 °C |
| Minimum Operating Temperature: | -55 °C |
| Shell Size: | 14 |
| Contact Type: | Pin |
| Mating Type: | Bayonet |
| Seal Material: | Fluorosilicone, Silicone Rubber |
| Shell Size - Insert Arrangement: | 14-4 |
| Shell Material: | Aluminum |
| Mating Cycles: | 500 cycle |
| Shell Type: | Square Flange Receptacle |
| Shell Finish: | Anodized |
| Current Rating: | 23 A |
| Voltage Rating: | 1500 VAC |
| Insert Arrangement: | 14-4 |
| Locking Mechanism: | Bayonet |
| SKU: | CIMMS24264R14B4PY |

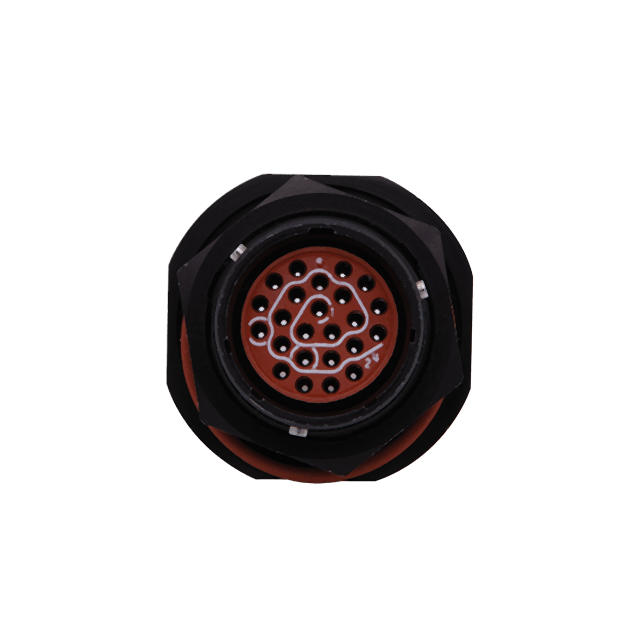

MS24264R14B4PY
| Heilind Number: | CIMMS24264R14B4PY |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Number: | MS24264R14B4PY |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the MS24264R14B4PY, a rugged and reliable circular connector designed for high-reliability applications. This male Omega series connector, made of durable aluminum with a panel mount housing, is built to withstand extreme conditions. With a military specification of MIL-DTL-26500, it guarantees quality and performance. Featuring 4 crimp termination contacts, a shell size of 14, and a bayonet mating type, it ensures secure and efficient connections. The connector operates flawlessly in a wide temperature range from -55°C to 200°C, with a voltage rating of 1500 VAC and a current rating of 23 A. Its silicone rubber and fluorosilicone seals offer excellent protection, and with a shell finish of anodized aluminum, it provides superior corrosion resistance. Ideal for use in demanding environments, this connector is perfect for military, aerospace, and industrial applications. Please note, it is not RoHS compliant.
