| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Part Number: | Cinch Connectivity Solutions MS24264R10B20S6 L/C |
| Military Specification: | MIL-C-26500 |
| Series: | Omega |
| Gender: | Female |
| Housing Material: | Aluminum |
| Number of Contacts: | 2 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 200 °C |
| Minimum Operating Temperature: | -55 °C |
| Shell Size: | 10 |
| Contact Type: | Socket |
| Mating Type: | Bayonet |
| Seal Material: | Fluorosilicone, Silicone Rubber |
| Shell Size - Insert Arrangement: | 10-20 |
| Shell Material: | Aluminum |
| Mating Cycles: | 500 cycle |
| Shell Type: | Square Flange Receptacle |
| Shell Finish: | Anodized |
| Current Rating: | 13 A |
| Voltage Rating: | 1500 VAC |
| Insert Arrangement: | 10-20 |
| Locking Mechanism: | Bayonet |
| Without Contacts: | Yes |
| SKU: | CIMMS24264R10B20S6 L/C |

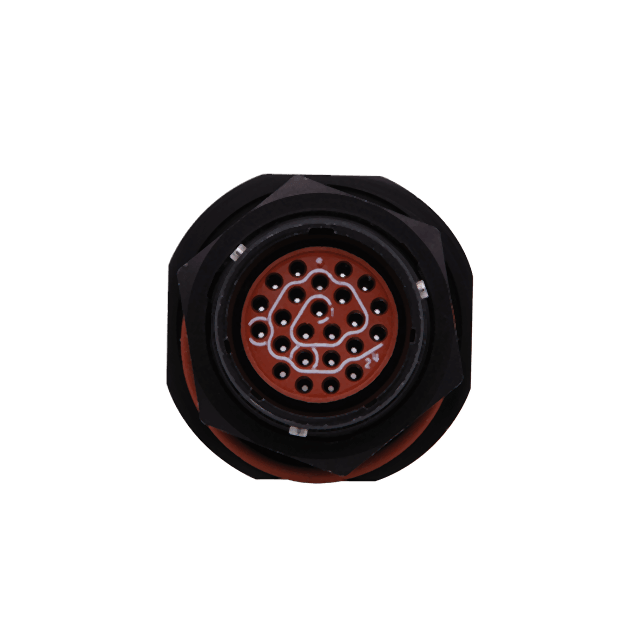

MS24264R10B20S6 L/C
| Heilind Number: | CIMMS24264R10B20S6 L/C |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Number: | MS24264R10B20S6 L/C |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the MS24264R10B20S6LC Omega Series Female Circular Connector, a high-reliability solution designed for demanding applications in military and aerospace environments. This panel-mount connector, constructed with durable aluminum housing and featuring a bayonet mating type, ensures secure and efficient connectivity. With a shell size of 10 and a 10-20 insert arrangement, it accommodates two contacts for power and signal transmission. Rated for operating temperatures ranging from -55°C to 200°C and with a voltage rating of 1500 VAC, this connector guarantees performance in harsh conditions. Please note, this assembly does not ship with contacts.
