SF1211-60193-1S

ASVSF1211_60193_1S
Heilind Number:ASVSF1211-60193-1S
Manufacturer:Amphenol SV Microwave
Manufacturer Number:SF1211-60193-1S
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

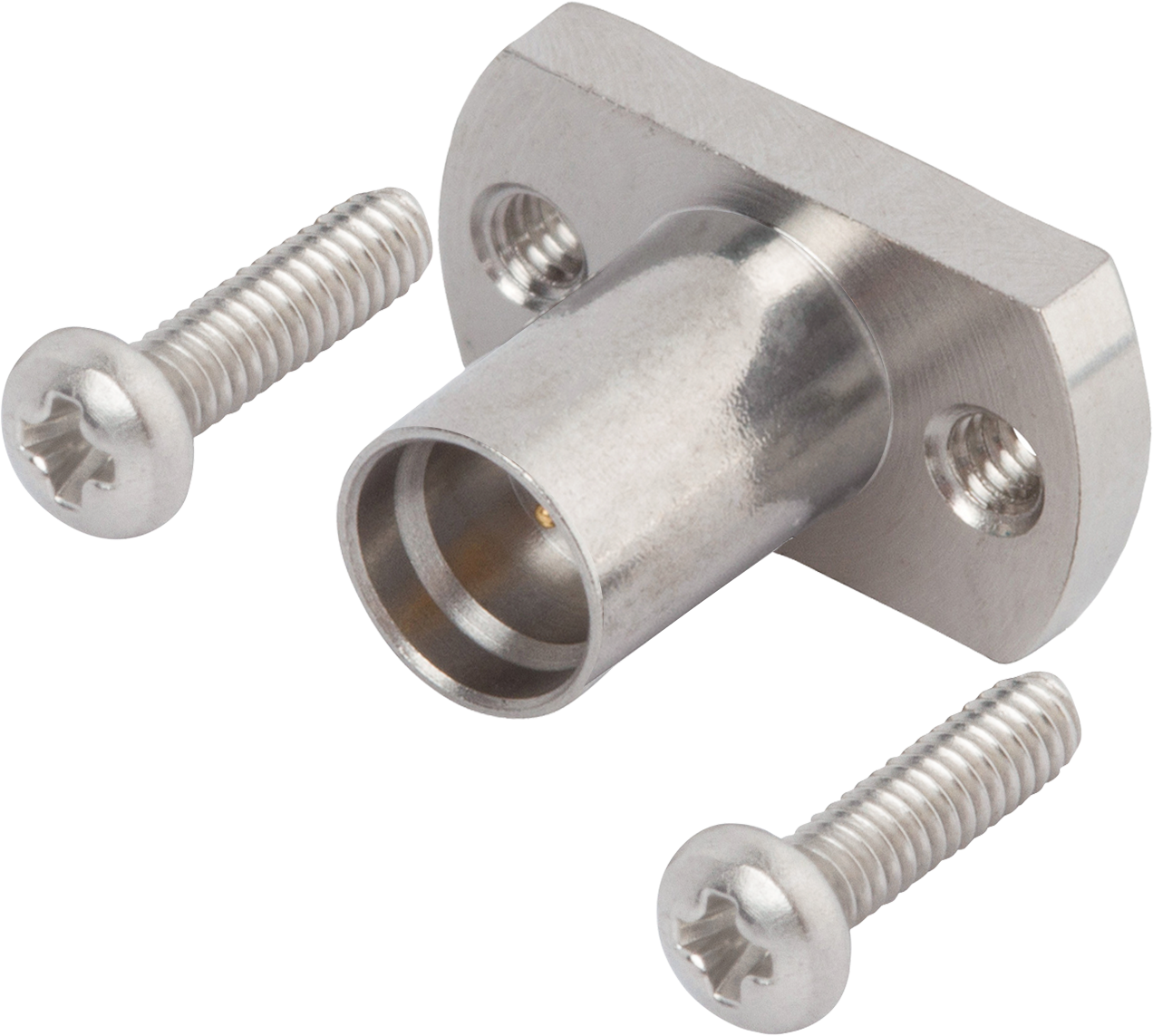

SMP Male Solderless PCB Compression Mount Connector, 2 Hole, with 4.76mm Screws (Stripline)

More >>

Specifications

AttributeValue
Product Category:
RF Coaxial Connectors & Accessories RF Coaxial Connectors
Manufacturer:Amphenol SV Microwave
Manufacturer Part Number:Amphenol SV Microwave SF1211-60193-1S
Connector Type:SMP
Gender:Plug
Mount Type:PCB
Termination Method:PCB - Surface Mount
Orientation:Straight
Impedance:50 Ω
Operating Frequency:40 GHz
Body Material:Stainless Steel
SKU:ASVSF1211-60193-1S

Detailed Description

Introducing the SMP Male Solderless PCB Compression Mount Connector, SF1211-60193-1S, designed for high-performance RF coaxial applications. This connector features a 2-hole PCB mount with 4.76mm screws for secure installation, making it ideal for stripline configurations. With a straight orientation and 50 Ω impedance, it ensures reliable signal transmission up to 40 GHz. Constructed from durable stainless steel, this connector is suitable for high-reliability environments. The SMP connector is a plug type, offering easy and efficient connectivity for your PCB surface mount needs. Trust in the SF1211-60193-1S for robust and dependable RF connections in your hi-rel applications.
