| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol RF |
| Manufacturer Part Number: | Amphenol RF 112521 |
| Connector Type: | BNC |
| Gender: | Plug |
| Termination Method: | Cable - Crimp |
| Contact Material: | Brass |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | Not Rated |
| Orientation: | Straight |
| Impedance: | 75 Ω |
| Operating Frequency: | 4 Max GHz |
| Body Material: | Brass |
| Panel Mount Type: | Not Applicable |
| Body Finish: | Nickel |
| Coupling Type: | Bayonet |
| SKU: | AMR112521 |
| Mil Qualified: | No |
| Cable Group: | D4 |
| Cable Type: | Belden 1855A,Belden 4855R,Belden 4855P |
| Insulator Material: | Delrin |
| Operating Level: | Commercial |
| Isolated: | No |
| Low PIM: | No |
| Non Magnetic: | No |
| Contact Finish: | Gold |
| Contact Termination: | Crimp |
| Mating Cycles (Min): | 500 |
| Assembly Tool: | 47-10150 |
112521
| Heilind Number: | AMR112521 |
| Manufacturer: | Amphenol RF |
| Manufacturer Number: | 112521 |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the BNC Straight Crimp Plug for Belden 1855A cables, a high-performance RF connector designed for professional audio and video applications. This 75 Ohm connector features a durable brass construction with a nickel finish, ensuring reliable performance in a wide range of environments. With a straight orientation and bayonet coupling type, it offers easy and secure connections. Suitable for cable termination via crimping, this plug guarantees a stable and low-loss connection. Operating at temperatures ranging from -40 °C to 85 °C, it is ideal for both indoor and outdoor use. With RoHS compliance and 4 GHz maximum operating frequency, this connector meets the stringent requirements of modern broadcast and telecommunications systems. Upgrade your connectivity solutions with the BNC Straight Crimp Plug, the perfect choice for high-speed and high-definition signal transmission.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

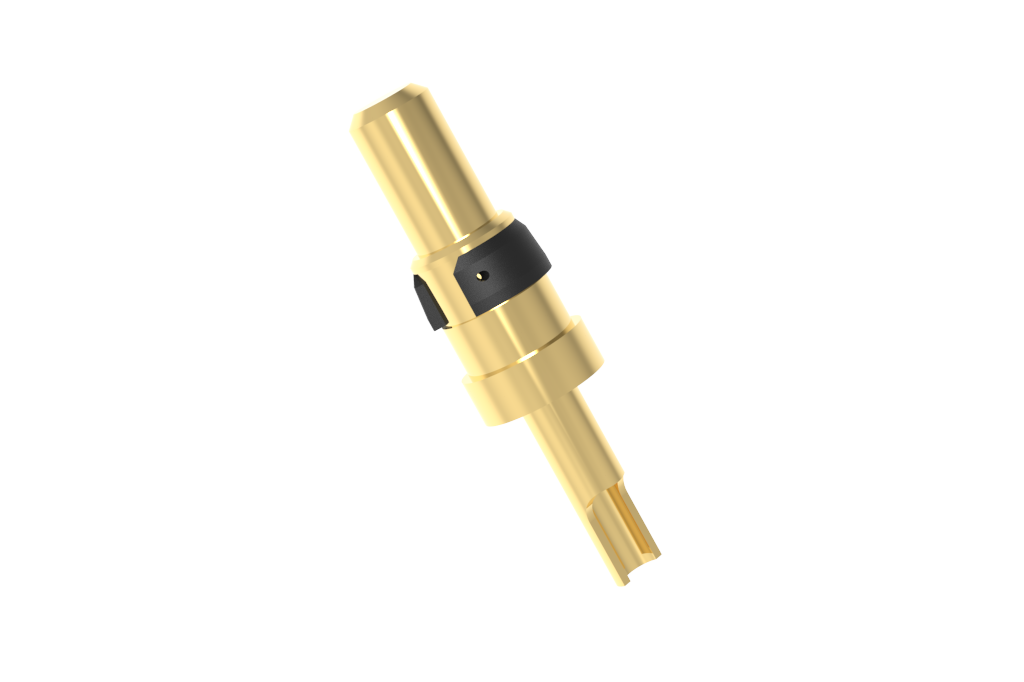

 | Amphenol RF AT62-201-16141 | FEMALE CONTACT, MACHINED SIZE 6 16-18AWG, NICKEL |  |
