| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol RF |
| Manufacturer Part Number: | Amphenol RF 000-34000 |
| Connector Type: | N-Type |
| Gender: | Plug |
| Termination Method: | Cable - Clamp |
| Contact Material: | Brass |
| Maximum Operating Temperature: | 165 °C |
| Minimum Operating Temperature: | -65 °C |
| IP Rating: | Not Rated |
| Orientation: | Straight |
| Impedance: | 50 Ω |
| Operating Frequency: | 11 Max GHz |
| Body Material: | Brass |
| Panel Mount Type: | Not Applicable |
| Body Finish: | Nickel |
| Coupling Type: | Threaded |
| Part Aliases: | UG-536/U |
| SKU: | AMR000-34000 |
000-34000
| ICC Number: | AMR000-34000 |
| Manufacturer: | Amphenol RF |
| Manufacturer Number: | 000-34000 |
| ECAD Model: | |
Specifications
Detailed Description

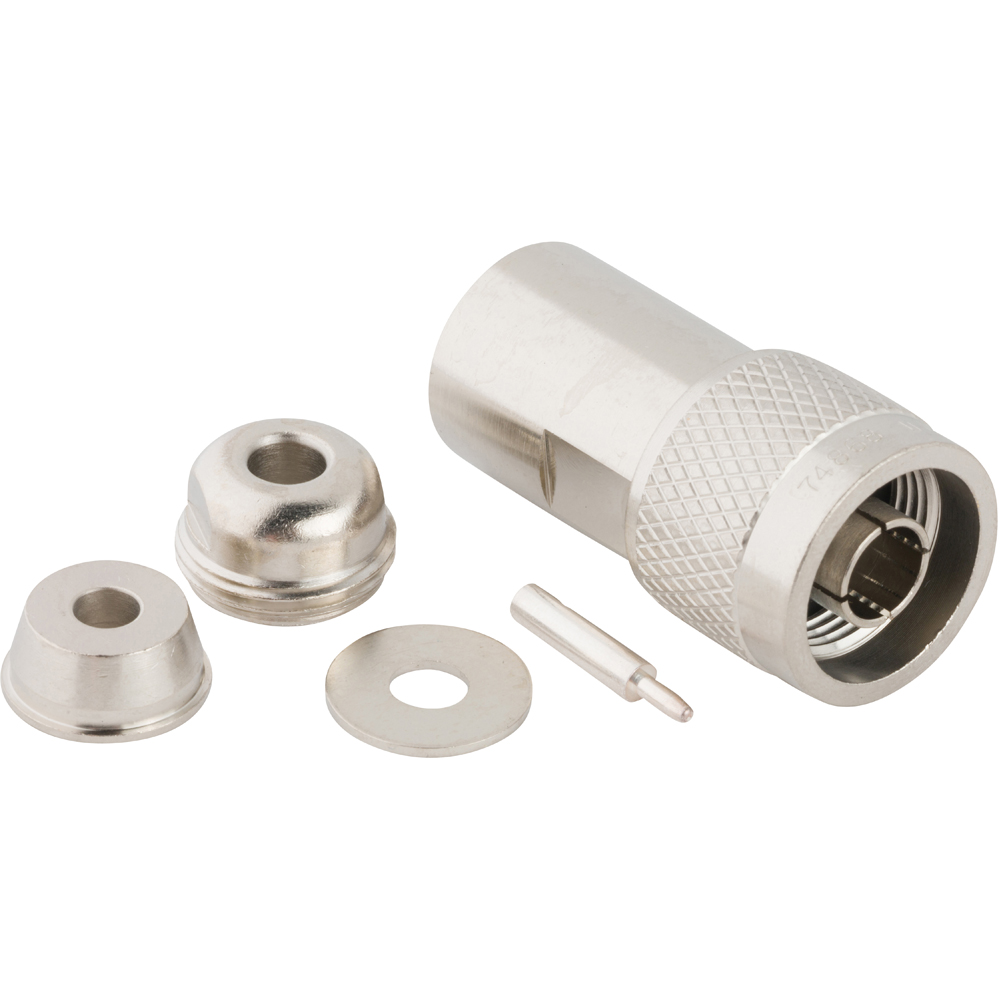

The RF Connector N-Type Straight Clamp Plug is a versatile and durable solution for your connectivity needs. With compatibility for RG-58, RG-141, Times LMR-195, and 50 Ohm cables, this connector ensures reliable performance in various applications. Constructed with brass contacts and a nickel finish, it offers excellent conductivity and corrosion resistance. The straight orientation and threaded coupling type make it easy to install securely. With a wide operating temperature range from -65°C to 165°C and a maximum operating frequency of 11 GHz, this connector is suitable for demanding environments. RoHS compliant and featuring the part alias UG-536/U, it meets industry standards for quality and performance. Upgrade your RF connections with this high-quality N-Type Clamp Plug.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Amphenol RF: | 000-34000 |
| Other Names: | UG-536/U |
