9-2176312-6
RP 1E 0.1W 121K 0.1% 25PPM 1K RL

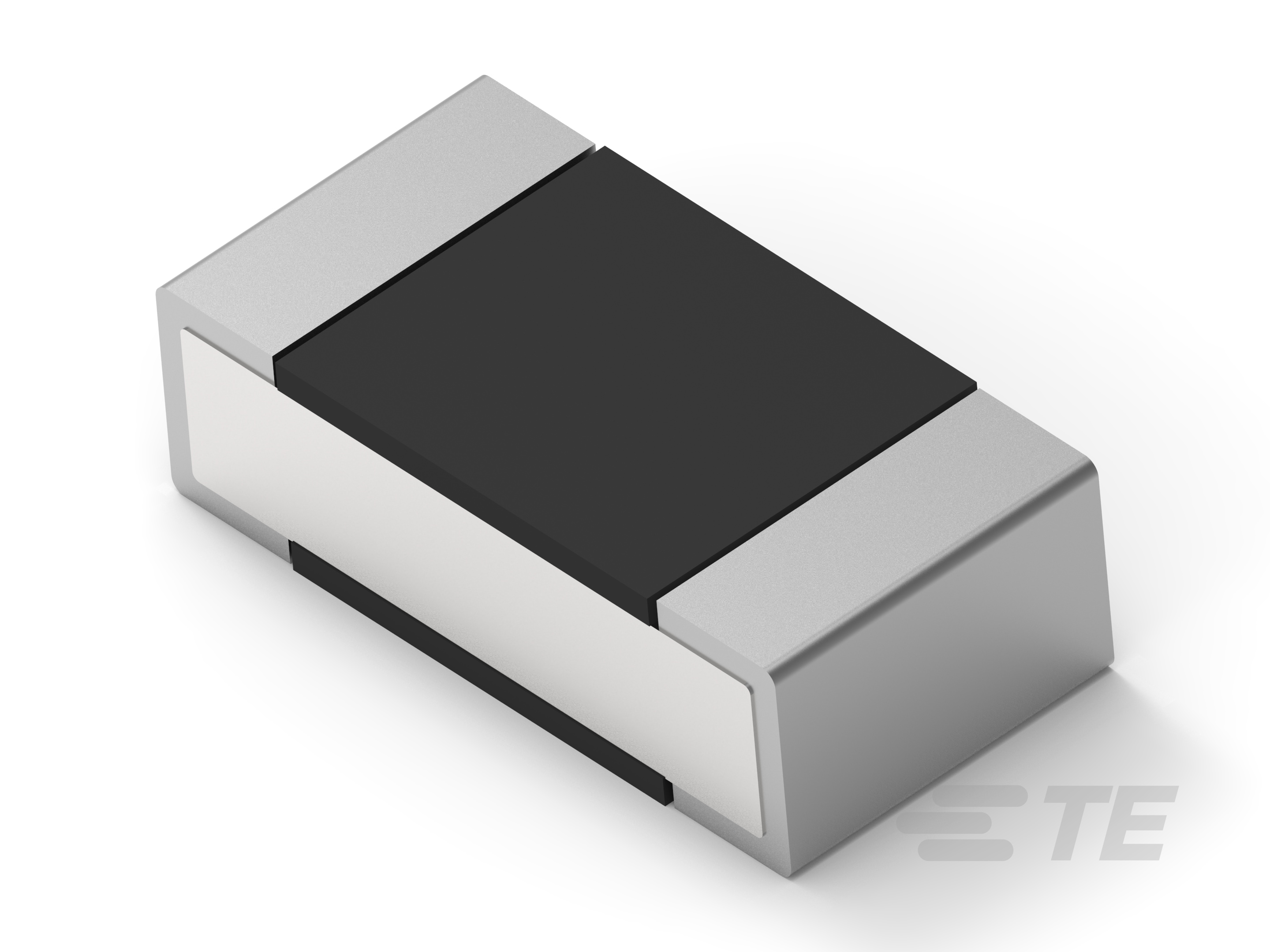

The RP 1E 0.1W 121K 0.1% 25PPM 1K RL, a high-precision surface mount resistor designed for critical electronic applications. With a power rating of .1 W and a resistance value of 121 KΩ, this thin film resistor ensures reliable performance in demanding environments. Operating at a rated voltage of 25 V, it offers robust protection against voltage fluctuations. The 0402 size code and solder termination make it easy to install onto circuit boards, while its compact dimensions of 1 x .5 x .3 mm save valuable space. With a tight tolerance of .1% and low TCR of 25PPM, this resistor guarantees accurate and stable resistance levels over time. Perfect for use in high-precision electronic systems, the RP 1E 121K resistor is a dependable choice for your design needs.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 9-2176312-6 |
| Size Code: | 0402 |
| Power Rating: | .1 W |
| Termination Type: | Solder |
| Resistance: | 121 KΩ |
| Rated Voltage: | 25 V |
| Mounting Style: | Surface Mount |
| Dimensions: | 1 x .5 x .3 mm |
| Product: | Surface Mount Resistors |
| Product Type: | Precision Resistor |
| Element Type: | Thin Film |
| Tolerance: | .1% |
| Number of Terminations: | 2 |
| SKU: | AMP9-2176312-6 |
| Number of Resistors: | 1 |
| Resistance Range: | 1kΩ - 1MΩ Ω |
| Product Type: | Fixed Resistor |
| Operating Temperature Range: | -55 - 155 °C |
| Temperature Coefficient: | ±25 ppm/°C |
| Part Alias: | 9-2176312-6 |
Use With
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
