9-2176311-2
RP 1E 0.1W 10K2 0.1% 25PPM 1K RL

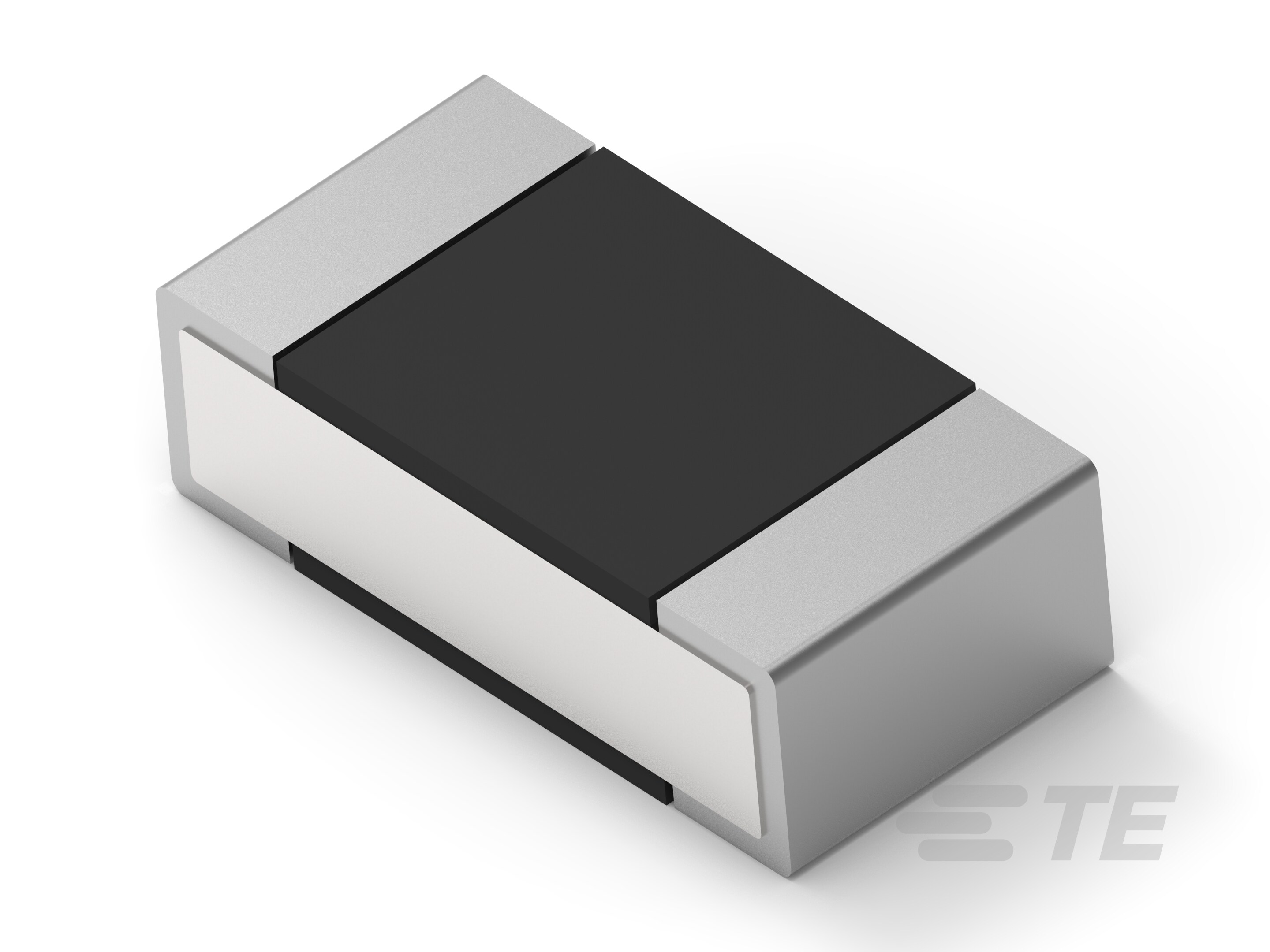

The 9-2176311-2, a precision surface mount resistor that delivers high performance in a compact 0402 package. With a power rating of 0.1 W and a resistance of 10.2 KΩ, this thin film resistor is perfect for applications requiring tight tolerance and stability. Rated for 25 V, it ensures reliable operation in demanding environments. Featuring solder termination and measuring just 1 x .5 x .3 mm, it offers easy integration onto PCBs. The 9-2176311-2 is ideal for use in a wide range of electronic devices, providing accurate and consistent performance. Please note, this product is not RoHS compliant.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 9-2176311-2 |
| Size Code: | 0402 |
| Power Rating: | .1 W |
| Termination Type: | Solder |
| Resistance: | 10.2 KΩ |
| Rated Voltage: | 25 V |
| Mounting Style: | Surface Mount |
| Dimensions: | 1 x .5 x .3 mm |
| Product: | Surface Mount Resistors |
| Product Type: | Precision Resistor |
| Element Type: | Thin Film |
| Tolerance: | .1% |
| Number of Terminations: | 2 |
| SKU: | AMP9-2176311-2 |
| Number of Resistors: | 1 |
| Resistance Range: | 1kΩ - 1MΩ Ω |
| Product Type: | Fixed Resistor |
| Operating Temperature Range: | -55 - 155 °C |
| Temperature Coefficient: | ±25 ppm/°C |
| Part Alias: | 9-2176311-2 |
Use With
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
