9-1617784-3
FCB-205-0118L=M83536/1-018L
Part Aliases: TE Connectivity M83536/1-018L

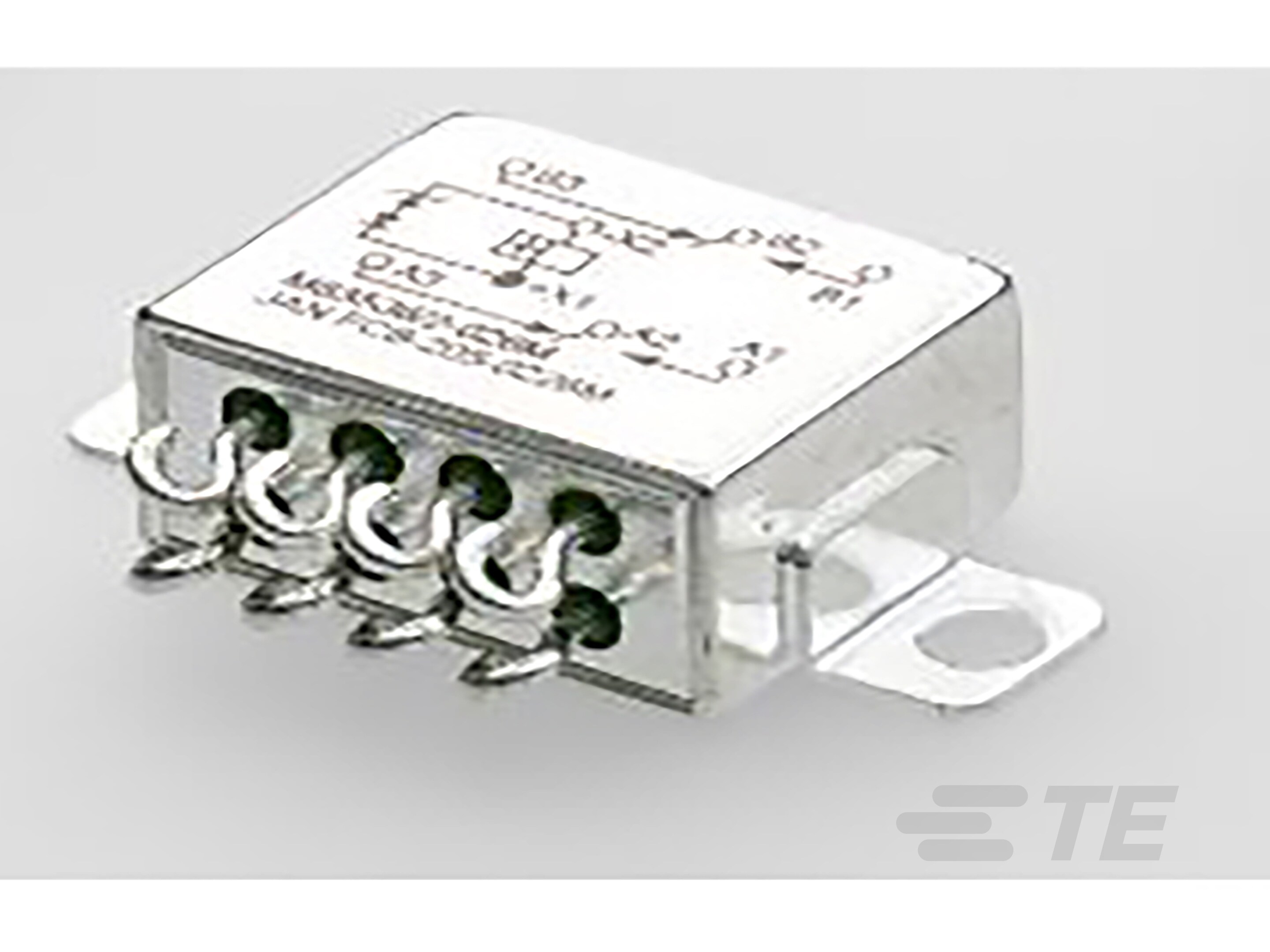

The FCB-205-0118L=M83536/1-018L power relay, a high-performance component designed for demanding applications in harsh environments. With a rugged horizontal flange mount construction, this relay ensures reliable operation in extreme conditions ranging from -70 to 125°C. Featuring silver cadmium oxide (AgCdO) contacts, it offers superior conductivity and corrosion resistance. The DPDT contact arrangement with 2 C/O connections allows for versatile control of power circuits. With a low coil resistance of 125 Ω and a coil voltage of 12 VDC, this relay delivers efficient and responsive performance. Ideal for military, aerospace, and industrial systems, the FCB-205-0118L=M83536/1-018L is a dependable solution for critical power switching applications. Please note, this product is not RoHS compliant.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 9-1617784-3 |
| Amperage: | 5 A |
| Mount Type: | Horizontal Flange Mount |
| Contact Material: | Silver Cadmium Oxide (AgCdO) |
| Coil Resistance: | 125 Ω |
| Coil Voltage: | 12 VDC |
| Operating Temperature Range: | -70 - 125 °C |
| Terminal Configuration: | Solder Pins, 90° |
| Contact Arrangement: | 2 Form C, DPDT, 2 C/O |
| Part Aliases: | M83536/1-018L |
| SKU: | AMP9-1617784-3 |
| Auxiliary Contacts: | Without |
| Terminal Plating: | Tin-Lead |
| Actuating System: | DC |
| Coil Magnetic System: | Polarized, Monostable |
| Shock: | 200G's, 6ms |
| Vibration: | 30G's, 70 - 3000Hz |
| Back EMF Suppression: | Without |
| Coil Suppression Diode: | Without |
| Product Type: | Relay |
| Relay Type: | Military/Aerospace Mid-Range |
| Enclosure Type: | Hermetically Sealed |
| Supplier Product: | Mid-Range Relays |
| Part Alias: | 9-1617784-3 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
