| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 86566-2 |
| Series: | FFC |
| Amperage: | 2 A |
| Gender: | Female |
| Mount Type: | Cable Mount (Free-Hanging) |
| Termination Method: | Crimp |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Gold Flash over Palladium Nickel |
| Pitch: | .1 in, 2.54 mm |
| Contact Type: | Socket |
| Wire Type: | Round Wire, Discrete |
| GPL: | 323 |
| Packaging: | Reel |
| Operating Temperature Range: | -65 - 105 °C, -85 - 221 °F |
| Circuit Application: | Signal |
| Contact Mating Area Plating: | Gold Flash/Palladium Nickel or Gold/Nickel |
| Contact Mating Area Plating Thickness: | 15 µin |
| Contact Underplating Material: | Nickel |
| PCB Contact Termination Area Plating: | Gold Flash |
| Sealable: | No |
| GPL Description: | Data and Devices |
| Connector and Contact Terminate To: | Wire & Cable |
| Product Code: | 5176 |
| Wire Size: | .12 - .4 mm², 22 - 26 AWG |
| Connector System: | Cable-to-Cable |
| Accepts Wire Insulation Diameter: | .04 - .056 in, 1.02 - 1.42 mm |
| Conductor Width: | 1.27 mm, 1.82 mm |
| Part Aliases: | 86566-2 |
| SKU: | AMP86566-2 |
86566-2
| Heilind Number: | AMP86566-2 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 86566-2 |
| Datasheet: | Instruction Sheet |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 86566-2 FFC RECP CONT PLTD 1 FULL AU, a high-performance female cable mount connector designed for signal applications. Featuring a durable phosphor bronze contact material with gold flash over palladium nickel plating, this connector ensures reliable conductivity. With a low amperage rating of 2A and a pitch of 2.54mm, it is suitable for fine wire connections. Operating temperature ranging from -65 to 105°C, this connector is ideal for a wide range of environments. RoHS compliant and suitable for use with 22-26 AWG wire sizes, the 86566-2 is a versatile and reliable solution for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 1-480704-0 | 6 Position, Plug, Housing, Crimp, Wire-to-Board / Wire-to-Wire, UL 94V-2, 6.35 mm [.25 in] Centerline, 2 Row, 600 VAC, Universal MATE-N-LOK |  |
 | TE Connectivity 1658655-1 | KIT,HDP-20,ENCLSUR,PLUG,SIZE 1 | |
 | TE Connectivity 1658659-1 | KIT,HDP-20,ENCLSUR,PLUG,SIZE 3 | |
 | TE Connectivity 206037-1 | CPC PLUG ASSEMBLY SIZE 17-16 | |
Application Tooling
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 2151980-1 | | |

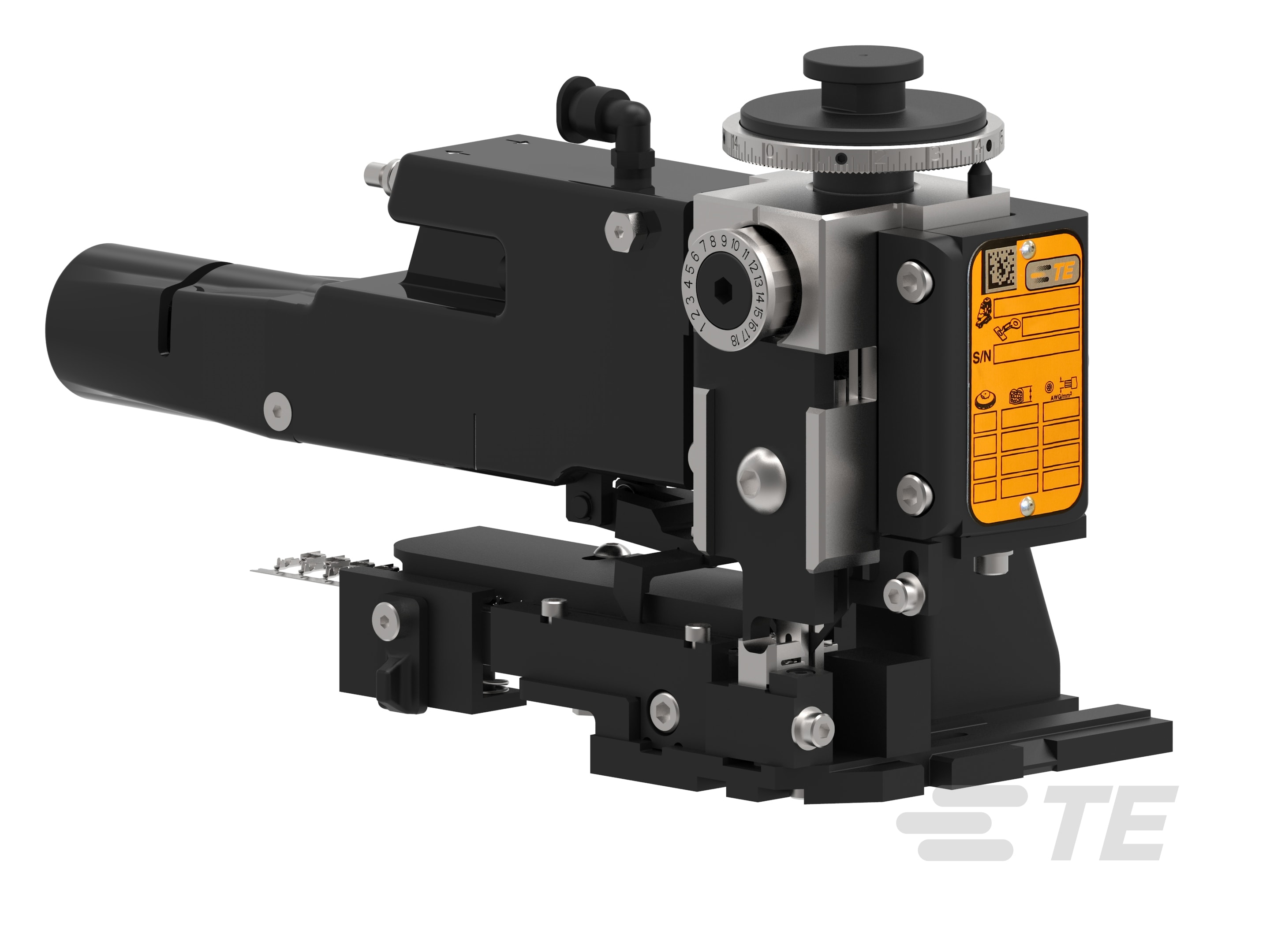

 | TE Connectivity 2151980-2 | | |
 | TE Connectivity 7-2151980-7 | | |
 | TE Connectivity 2305570-1 | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 06/26/2017 | P-17-014014 - Manufacturing Location Change. TE Connectivity (TE) is moving manufacturing location of the products listed below from TE Rock Hill to TE Guangdong. Please contact your TE Sales Engineer with questions. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
