| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 776437-4 |
| Series: | AMPSEAL 16 |
| Gender: | Housing for female terminals |
| Number of Rows: | 2 |
| Pitch: | .177 in, 4.5 mm |
| Voltage: | 250 VDC |
| IP Rating: | IP67 |
| Strain Relief: | Add By Accessory |
| Row Spacing: | .209 in, 5.3 mm |
| Polarization: | Yes |
| Body Material: | PBT GF |
| Number of Positions: | 12 |
| GPL: | N41 |
| Packaging: | Package |
| Operating Temperature Range: | -40 - 125 °C, -40 - 257 °F |
| Sealable: | Yes |
| GPL Description: | Industrial & Commercial Transportation |
| Product Code: | M097 |
| Connector System: | Wire to Wire |
| Length: | 1.509 in |
| Cable Exit Angle: | 180° |
| Height: | 1.24 in, 31.5 mm |
| Width: | 1.449 in, 36.8 mm |
| Nominal Voltage Architecture: | 125 V, 12 V, 240 V, 24 V, 42 V, 48 V, 80 V, 90 V |
| Body Color: | Green |
| Serviceable: | Yes |
| Mating Pin Diameter: | .059 in, 1.5 mm |
| Connector Code : | 4 |
| Mounting Feature: | Without |
| Terminal Position Assurance: | Yes |
| Connector Position Assurance Capable: | Yes |
| Hybrid Connector : | No |
| Primary Locking Feature: | Integrated in Housing |
| Material Flammability Standard: | UL 94-HB |
| Part Aliases: | 776437-4 |
| SKU: | AMP776437-4 |
776437-4
Specifications
Detailed Description
776437-4 - Introducing the AS 16, 12P PLUG ASSY, KEY 4 from our AMPSEAL 16 series, a rugged and reliable connector designed for industrial and commercial transportation applications. Featuring a housing for female terminals with two rows and a pitch of 4.5 mm, it ensures efficient power and signal transmission. With a voltage rating of 250 VDC and an IP67 ingress protection rating, this connector is suitable for harsh environments. Constructed from PBT GF material that meets UL 94-HB flammability standards, it offers enhanced safety. The 12 positions with polarization allow for secure connections, while the integrated strain relief and terminal position assurance ensure robust performance. With a compact 1.509" x 1.449" x 1.24" (L x W x H) size and 180° cable exit angle, it offers versatility in installation. Trust in the 776437-4 for your connectivity needs in demanding environments.

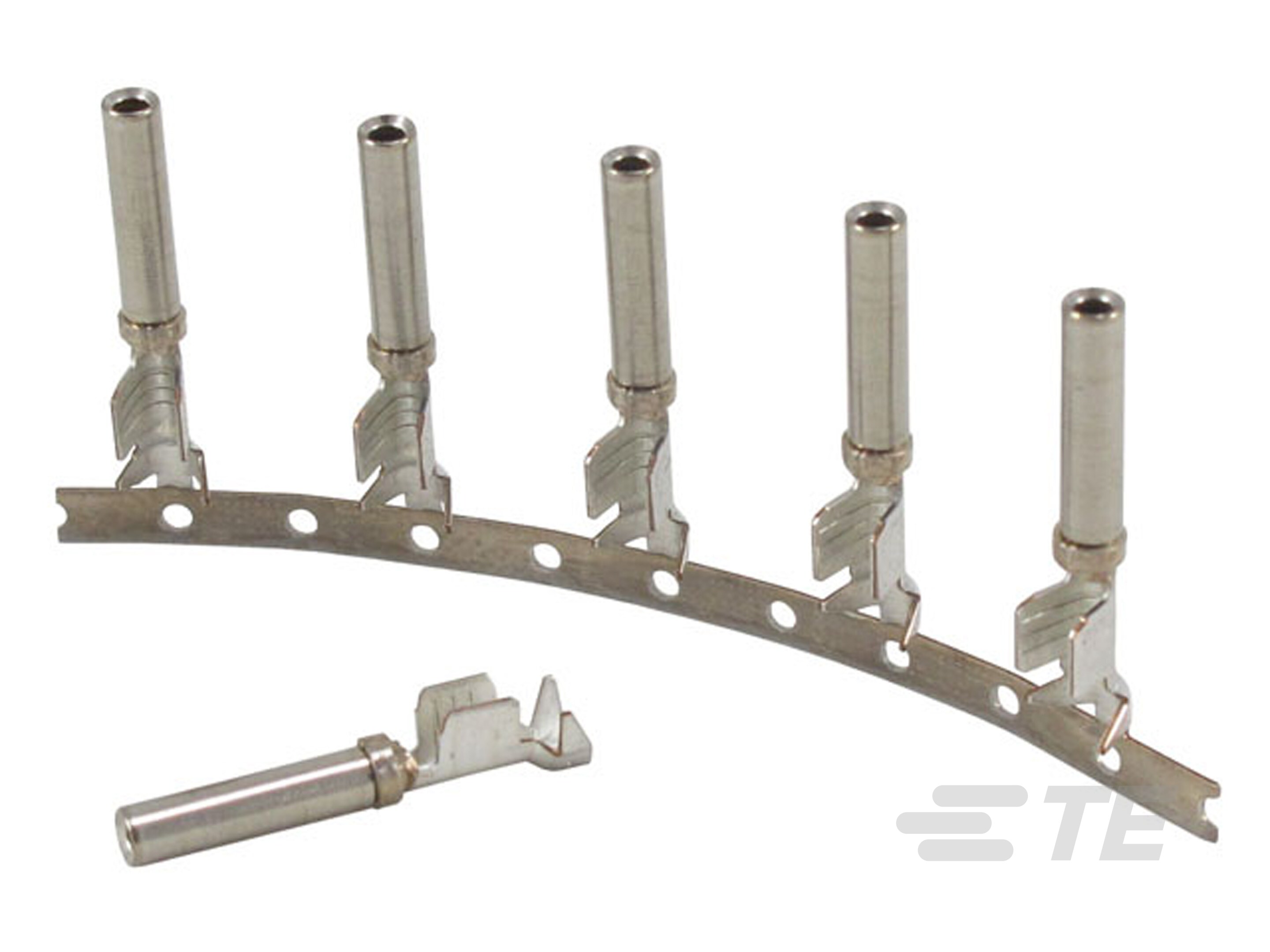

For Use With
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
