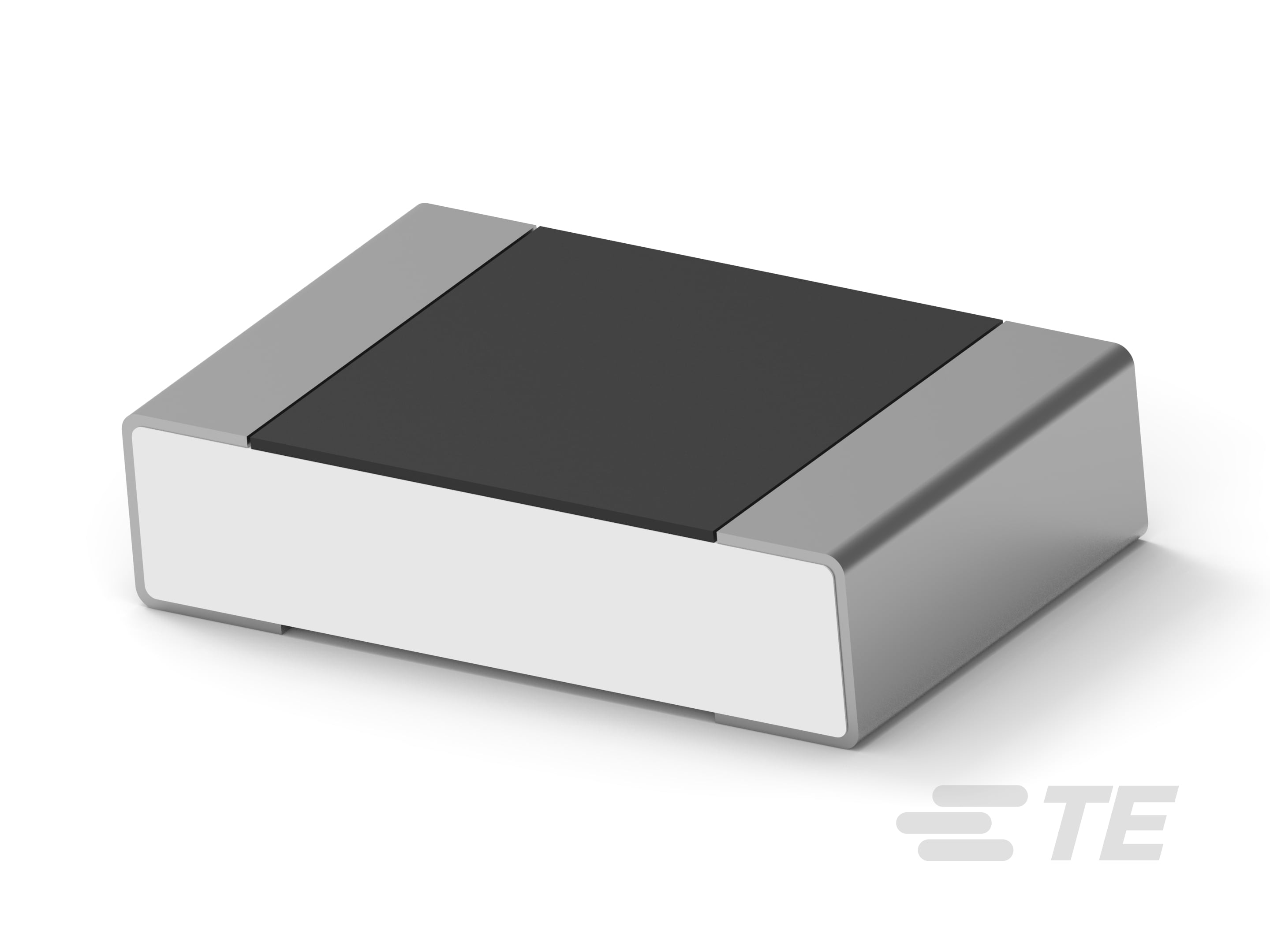

7-2176373-7
RQ 0805 61R9 0.1% 10PPM 1K RL
The RQ 0805 61R9 0.1% 10PPM 1K RL, a high-precision surface mount resistor that delivers exceptional performance in electronic circuits. With a power rating of .2 W and a rated voltage of 100 V, this resistor is suitable for a wide range of applications. Its compact 0805 size and solder termination make it easy to install on PCBs. Crafted with a thin film element, it offers superior accuracy with a tolerance of .1%. Each resistor has two terminations and measures 2 x 1.25 x .5 mm in dimensions. While not RoHS compliant, it is a reliable component for various projects. Upgrade your circuit design with the 7-2176373-7 resistor.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 7-2176373-7 |
| Size Code: | 0805 |
| Power Rating: | .2 W |
| Termination Type: | Solder |
| Resistance: | 61.9 Ω |
| Rated Voltage: | 100 V |
| Mounting Style: | Surface Mount |
| Dimensions: | 2 x 1.25 x .5 mm |
| Product: | Surface Mount Resistors |
| Product Type: | Precision Resistor |
| Element Type: | Thin Film |
| Tolerance: | .1% |
| Number of Terminations: | 2 |
| SKU: | AMP7-2176373-7 |
| series: | Holsworthy RQ73 |
| Number of Resistors: | 1 |
| Resistance Range: | Up to 1kΩ Ω |
| Product Type: | Fixed Resistor |
| Temperature Coefficient: | ±10 ppm/°C |
| Part Alias: | 7-2176373-7 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
