6-963715-5
MQS0,63 AuGel rec LL unseal. 0,5-0,75
MQS0.63 AuGel rec LL unseal. 0.5-0.75 is a high-quality automotive terminal designed for reliable performance in demanding environments. With a low profile and a current rating of 7.5 A, this gold-plated terminal ensures excellent conductivity and corrosion resistance. The F-Crimp termination method allows for secure and easy installation onto 20 AWG wires, while the Locking Lance feature provides added stability. RoHS compliant and suitable for use in a wide temperature range (-40 to 140°C), this terminal is perfect for automotive, truck, bus, and off-road applications. Upgrade your electrical connections with the MQS0.63 AuGel terminal for unparalleled durability and performance.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 6-963715-5 |
| Amperage: | 7.5 A |
| Termination Method: | Crimp |
| Contact Plating: | Gold |
| Operating Temperature Range: | -40 - 140 °C, -40 - 284 °F |
| Wire Size: | 20 AWG, .5 - .75 mm² |
| Crimp Type: | F-Crimp |
| Terminal Primary Locking Feature: | Locking Lance |
| Terminal / Splice Type: | Receptacle |
| Product: | Automotive, Truck, Bus, & Off-Road Terminals |
| SKU: | AMP6-963715-5 |
| series: | MQS |
| Interface Plating: | Gold (Au) |
| Mating Tab Thickness: | .63 mm / .025 in |
| Mating Tab Width: | .63 mm / .025 in |
| Wire Insulation Diameter: | 1.7 - 1.9 mm / .066 - .074 in |
| Wire Size Search: | 18 AWG / 19 AWG / .5 mm² / .6 mm² / .75 mm² |
| Customer Preferred Contact: | No |
| Terminal Transmits: | 0 - 24 A (Low Power) |
| Wire Type: | Copper |
| Sealable: | No |
| Receptacle Style: | 180° |

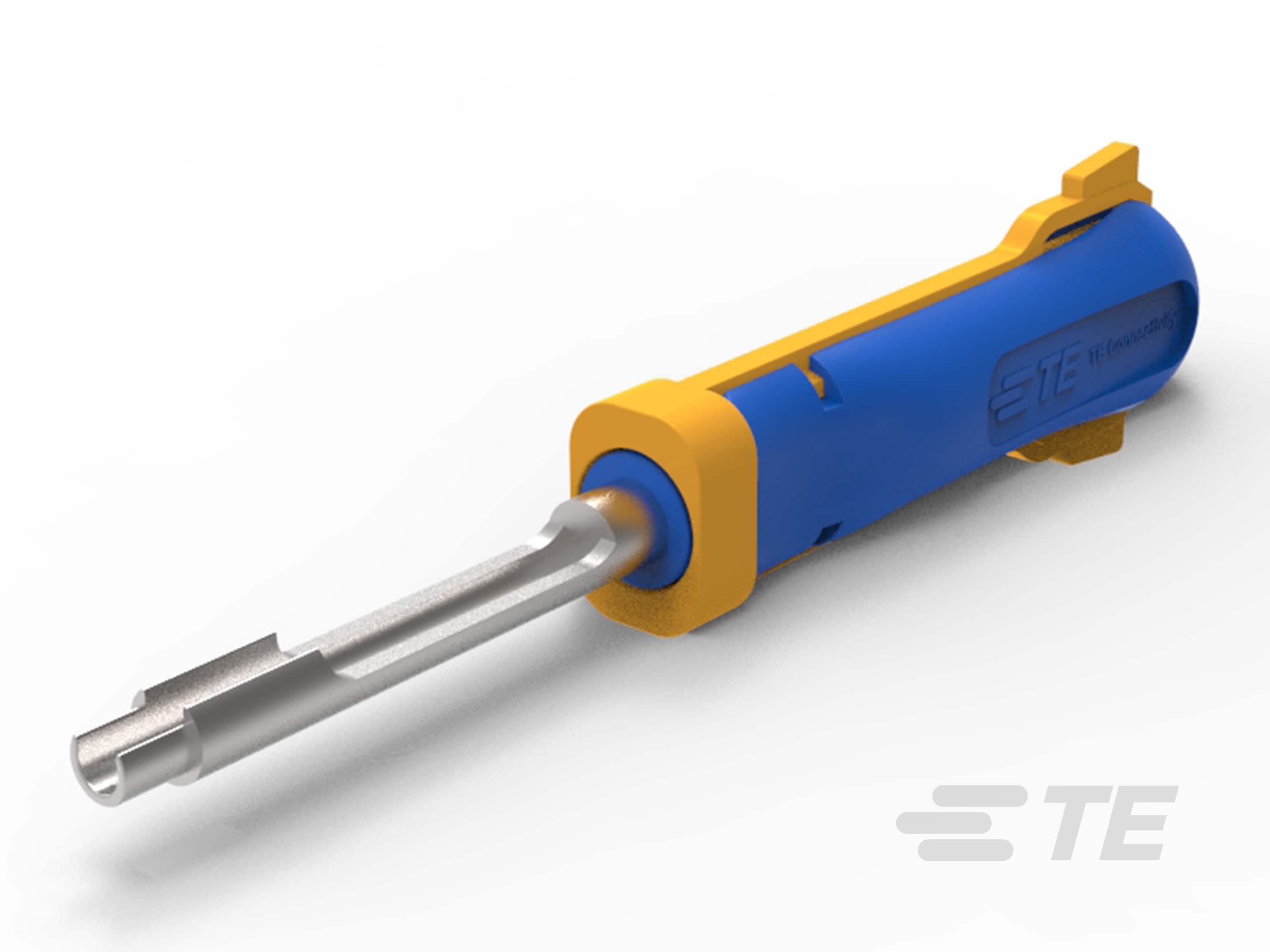

Application Tooling
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
