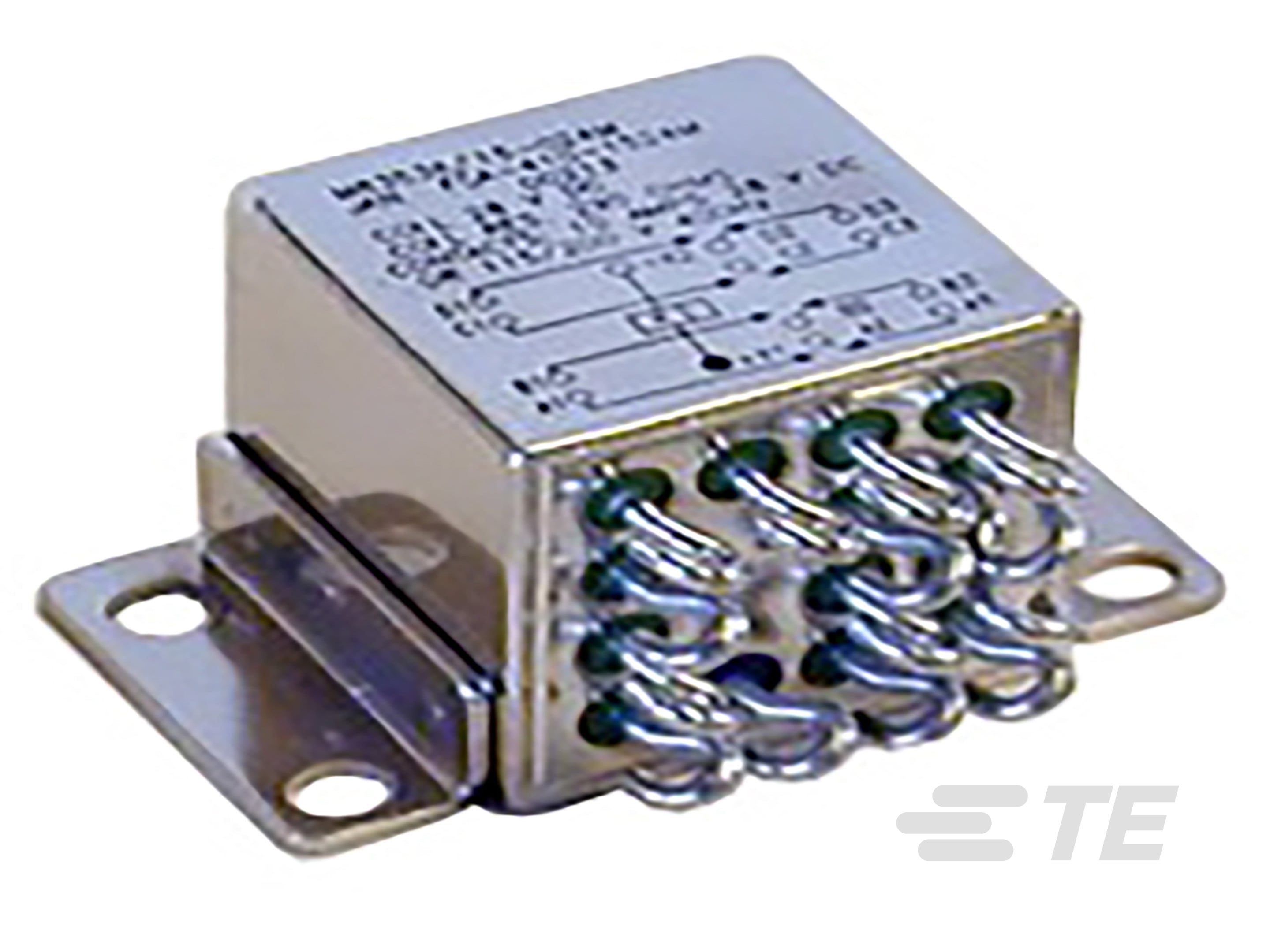

TD228-5001P

Heilind Number:	AMP5-1617805-5
Manufacturer:	TE Connectivity
Manufacturer Number:	TD228-5001P
Datasheet:	3D Model (IGS)
ECAD Model:

Description:

TD228-5001P= TDFO 5 SEC

More >>

Specifications

Attribute	Value
Product Category:	Relays Time Delay Relays & Timing Modules
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity TD228-5001P
Amperage:	10 A at 28 VDC, 115 VAC
Mount Type:	Raised Vertical Flange Mount
Operation Type:	Delay on Operate
Repeatability:	±10%
Termination Type:	Solder Pin Terminal
Status Indicator:	None
Enclosure:	Hermetic Sealed Metallic
Dimensions:	1.015 x 1.015 x 1 in, 25.79 x 25.79 x 25.4 mm
Contact Arrangement:	2 Form C, DPDT, 2 C/O
Delay Time:	5 seconds
Input Voltage:	28 VDC
Control Type:	Fixed
SKU:	AMP5-1617805-5

Detailed Description

Introducing the TD228-5001P Time Delay Relay, a crucial component for precise timing applications in electronic systems. This relay, featuring a 10A rating at 28VDC and 115VAC, boasts a Raised Vertical Flange Mount for easy installation. Its Delay on Operate operation type, with a fixed 5-second delay time, ensures reliable performance in various settings. With a hermetic sealed metallic enclosure and solder pin terminals, this relay guarantees durability and secure connections. The 2 Form C (DPDT) contact arrangement offers versatility, while its compact 1.015 x 1.015 x 1-inch dimensions make it ideal for space-restricted environments. Trust in the TD228-5001P for your time-critical relay needs.
