5-1617543-9
JMSP-5XP=M39016/11-018P
Part Aliases: TE Connectivity M39016/11-018P

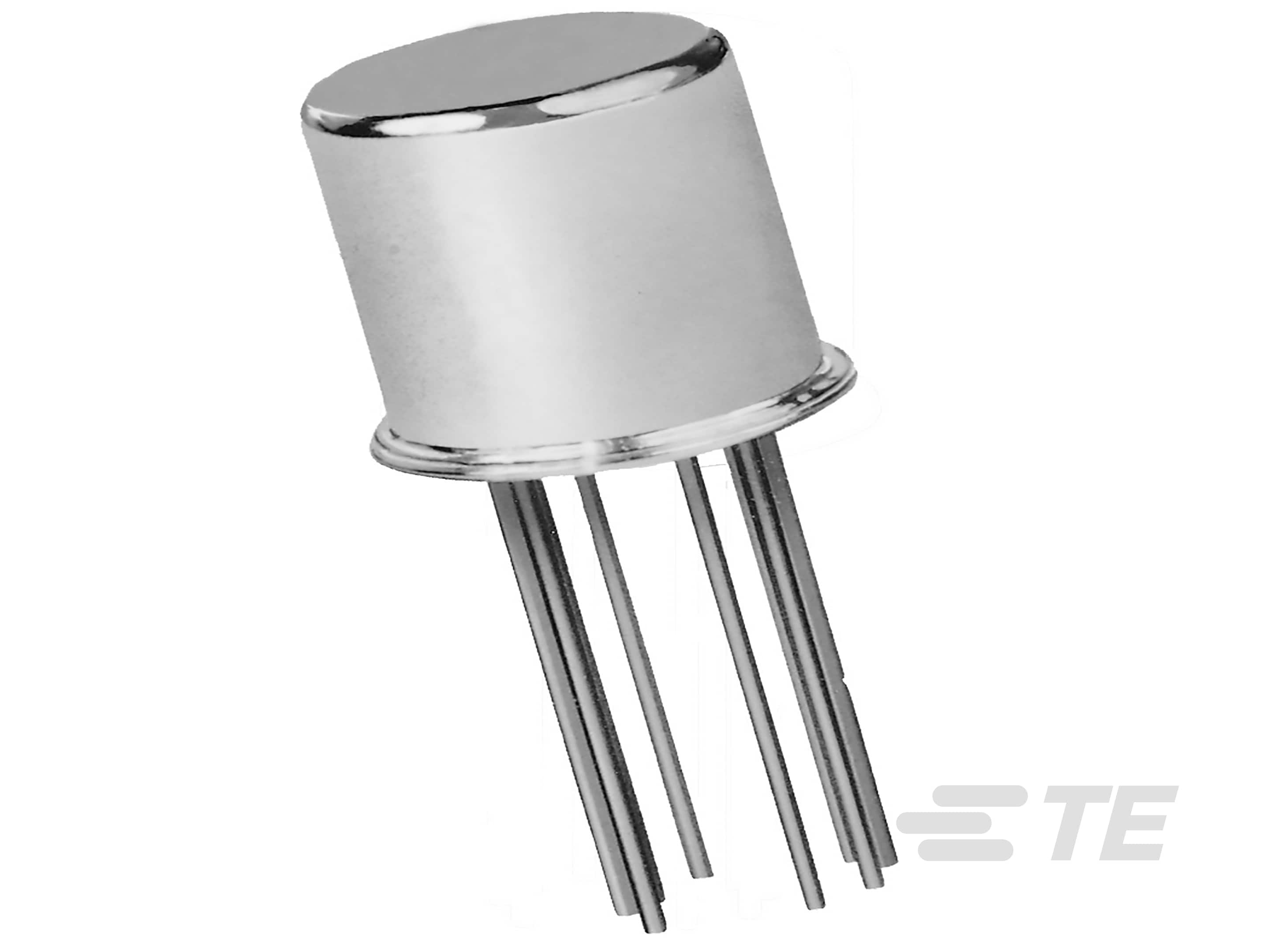

The JMSP-5XP=M39016/11-018P, a high-performance signal and communication relay designed for printed circuit board mounting. With a coil resistance of 100 Ω and a coil voltage of 5 VDC, this relay offers reliable operation in a variety of applications. Featuring a contact configuration of 2 Form C (DPDT, 2 C/O) and a maximum switching voltage of 28 VDC, it ensures efficient signal transmission. The termination type is PC Pin(s), and the contact current rating is 1 A, making it suitable for use in demanding environments. Please note, this product is not RoHS compliant. Also known by its part aliases M39016/11-018P, this relay is a dependable choice for your signal and communication needs.
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 5-1617543-9 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 100 Ω |
| Coil Voltage: | 5 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | PC Pin(s) |
| Contact Current Rating: | 1 A |
| Part Aliases: | M39016/11-018P |
| SKU: | AMP5-1617543-9 |
| Transistor Driver: | Without |
| Contact Current Class: | Low Level - 1 A |
| Actuating System: | DC |
| Coil Magnetic System: | Non-Polarized, Monostable |
| Shock: | 75G's, 6ms |
| Vibration: | 30G's, 10 - 3000Hz |
| Coil Polarity Protection Diode: | Without |
| Coil Power Measurement: | Milliwatts |
| Coil Suppression Diode: | Without |
| TO-5/.100 Grid Relay Coil Power Rating (DC): | 250 mW |
| TO-5/.100 Grid Relay Input Voltage: | 2.6 VDC |
| Product Type: | Relay |
| Relay Type: | Military/Aerospace High Performance |
| Enclosure Type: | Hermetically Sealed |
| MOSFET Driver: | Without |
| Coil Latching: | Without |
| Operating Temperature Range: | -65 - 125 °C |
| Supplier Product: | TO-5/.100 Grid Relays |
| Part Alias: | JMSP-5XP |
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
