| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 5-1617542-3 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 1560 Ω |
| Coil Voltage: | 26.5 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | Long Leads |
| Contact Current Rating: | 1 A |
| Part Aliases: | M39016/20-012L |
| SKU: | AMP5-1617542-3 |
5-1617542-3
| Heilind Number: | AMP5-1617542-3 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 5-1617542-3 |
| ECAD Model: | |
Specifications
Detailed Description

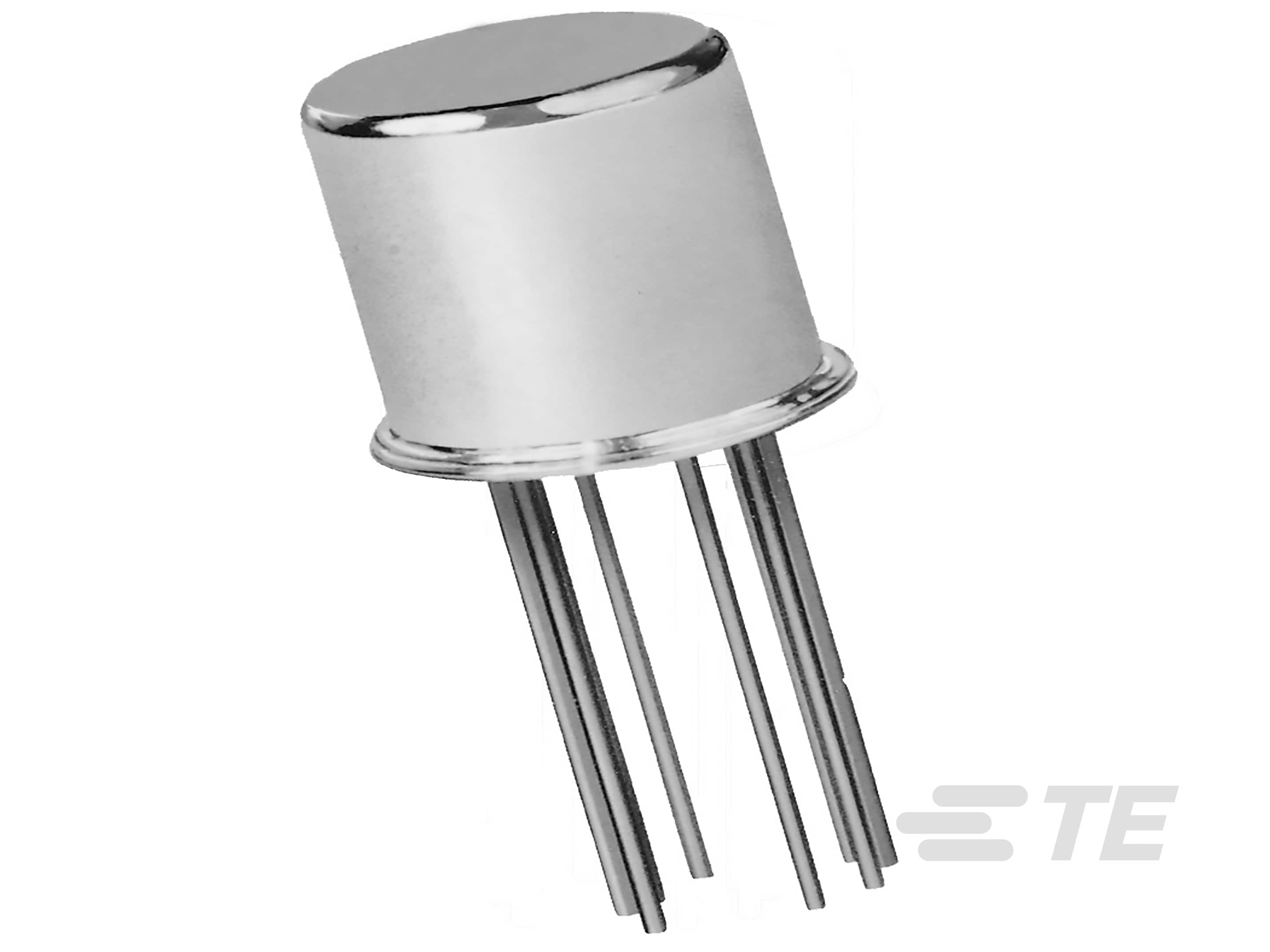

Introducing the JMAWDD-26XL=M39016/20-012L, a high-performance signal and communication relay designed for printed circuit board mounting. With a coil resistance of 1560 Ω and a coil voltage of 26.5 VDC, this relay offers reliable and efficient operation. Featuring a contact configuration of 2 Form C (DPDT, 2 C/O) and a maximum switching voltage of 28 VDC, it is suitable for a wide range of applications. The termination type of long leads ensures easy installation. With a contact current rating of 1 A, this relay is ideal for use in various electronic systems. Please note that this product is not RoHS compliant. Also known by its part aliases M39016/20-012L, it is a must-have component for your signal and communication relay needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 5-1617542-3 |
| Other Names: | M39016/20-012L |
