368087-1
090II NON SLD TAB(SQ0.85-1.25)
The 368087-1, a high-quality automotive terminal designed for reliable connectivity in demanding environments. With a low operating temperature of -40°C and a high of 80°C (-40 - 176°F), this terminal ensures optimal performance in a wide range of conditions. Featuring a 10A amperage rating and a crimp termination method, it offers secure and efficient wire connections. The F-Crimp design accommodates wire sizes ranging from .85 to 1.25mm², with a tab splice type for easy installation. Its clean body and primary locking feature guarantee a stable connection, making it ideal for automotive, truck, bus, and off-road applications. Rest assured, this terminal is RoHS compliant, meeting environmental standards for your peace of mind. Upgrade your connectivity with the 368087-1.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 368087-1 |
| Amperage: | 10 A |
| Termination Method: | Crimp |
| Operating Temperature Range: | -40 - 176 °F, -40 - 80 °C |
| Wire Size: | .85 - 1.25 mm² |
| Crimp Type: | F-Crimp |
| Terminal Primary Locking Feature: | Clean Body |
| Terminal / Splice Type: | Tab |
| Product: | Automotive, Truck, Bus, & Off-Road Terminals |
| SKU: | AMP368087-1 |
| series: | Multilock Connector System |
| Interface Plating: | Tin (Sn) |
| Mating Tab Thickness: | .64 mm / .025 in |
| Mating Tab Width: | 2.3 mm / .09 in |
| Wire Insulation Diameter: | 1.8 - 2.6 mm / .071 - .102 in |
| Wire Size Search: | .85 mm² / 1 mm² / 1.25 mm² |
| Terminal Transmits: | 0 - 24 A (Low Power) |
| Wire Type: | Copper |
| Sealable: | No |
| Insulated: | Yes |
| Receptacle Style: | Straight |

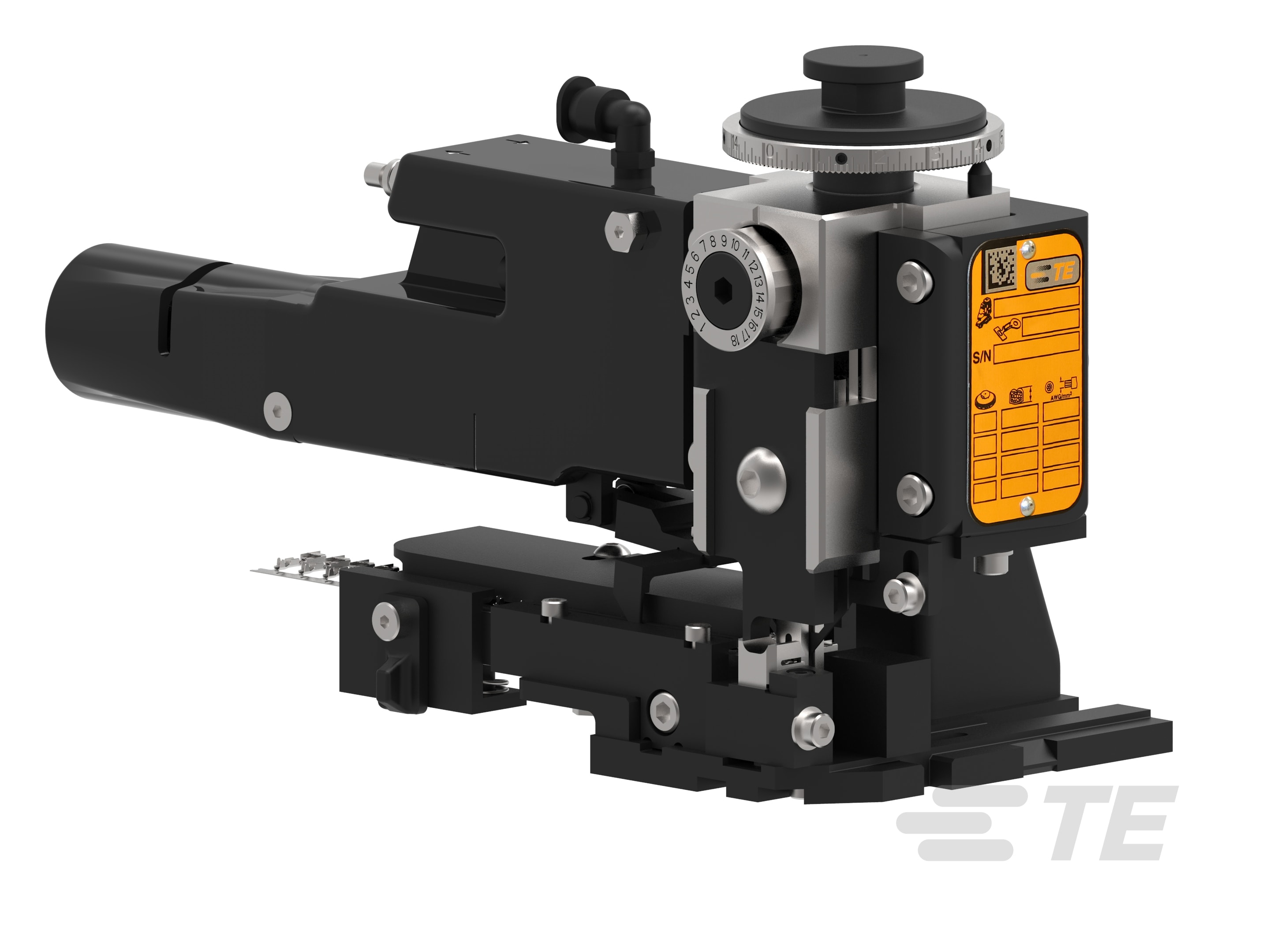

Application Tooling
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
