| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity V23079A2001B301 |
| Series: | Axicom P2 Signal Relay |
| Mount Type: | Printed Circuit Board |
| Terminal Type: | PCB-THT |
| Insertion Loss: | -.02 dB at 100 MHz, -.27 dB at 900 MHz |
| Number of Poles: | 2 |
| Coil Resistance: | 178 Ω |
| Coil Voltage: | 5 VAC |
| Power Consumption: | 140 mW |
| Contact Configuration: | 2 Form C (CO) |
| Maximum Switching Voltage: | 220 VDC, 250 VAC |
| Isolation: | -20.7 dB at 900 MHz, -39 dB at 100 MHz |
| Termination Type: | Through Hole |
| Contact Current Rating: | 5 A |
| Coil Type: | Monostable |
| SKU: | AMP3-1393789-5 |

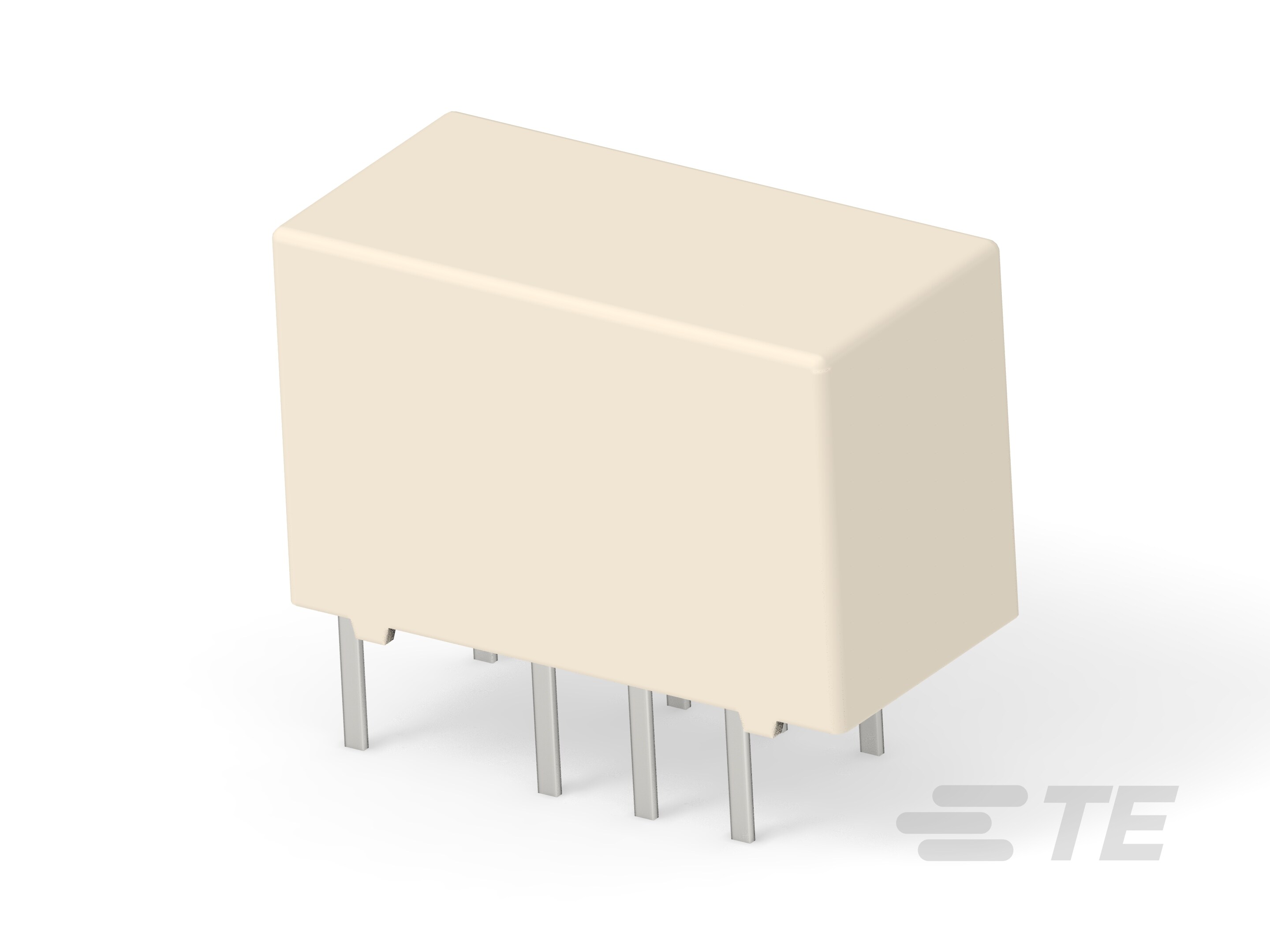

V23079A2001B301
Specifications
Detailed Description
Introducing the V23079A2001B301, a high-performance Axicom P2 Signal Relay designed for printed circuit board mounting. Featuring a durable PCB-THT terminal type, this relay offers minimal insertion loss of -.02 dB at 100 MHz and -.27 dB at 900 MHz, ensuring efficient signal transmission. With two poles and a coil resistance of 178 Ω, it operates reliably at a coil voltage of 5 VAC, consuming just 140 mW of power. The contact configuration of 2 Form C (CO) and a maximum switching voltage of 220 VDC or 250 VAC make it suitable for a variety of applications. With RoHS compliance and current stock availability, this relay is a dependable choice for your signal and communication relay needs.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 09/02/2024 | PCN-24-209137 - Add Alternative Material. To ensure consistent high quality and availability, we intend to add a new alternative plastic material for P2 overmoulding to the current plastic material for P2 overmoulding. While both materials have the same characteristics, have passed the same tests and are both UL, VDE and certified, the new material colour appears slightly lighter. The relay form, features and ratings remain unchanged. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
