292304-3

AMP292304-3
Heilind Number:AMP292304-3
Manufacturer:TE Connectivity
Manufacturer Number:292304-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

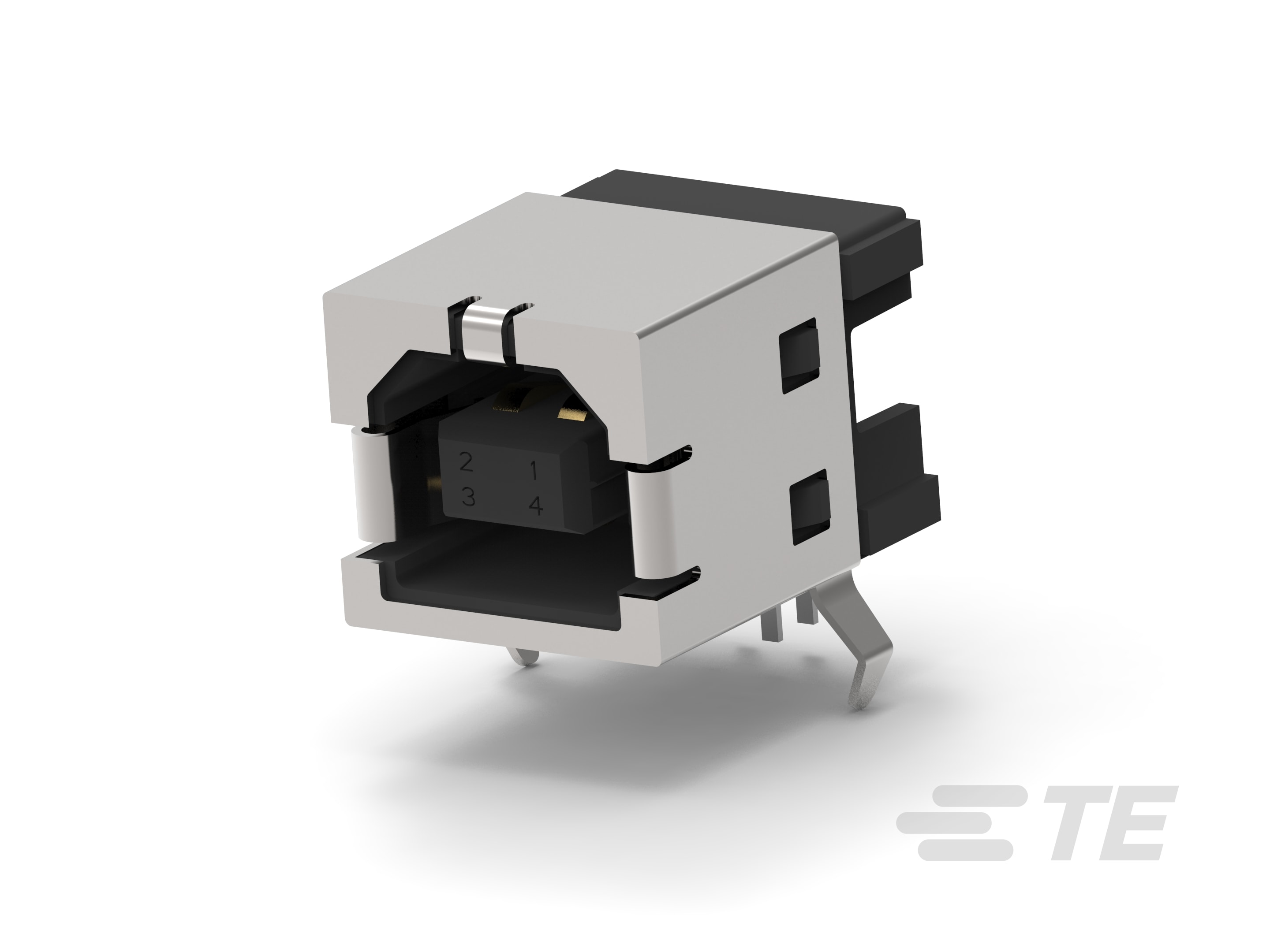

USB B R/A RECP CONNECTOR,LEAD FREE

More >>

Specifications

AttributeValue
Product Category:
IO Connectors USB Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 292304-3
Amperage:1 A
Gender:Receptacle
Housing Material:Thermoplastic
Mount Type:Board Mount
Termination Method:Reflow Solder
Maximum Operating Temperature:85 °C
Body Orientation:Right Angle
Pitch:.098 in, 2.5 mm
Shell Plating:Tin
Number of Ports:1
Orientation:Right Angle
USB Type:B
USB Size:Standard
USB Version:2.0
Mount Location:Top
Contact Amperage:1 A
Number of Positions:4
Housing Color:Black
Termination Type:Through Hole
Tail Length:.119 in, 3.01 mm
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Signal
Contact Mating Area Plating:Gold or Gold Flash over Palladium Nickel
Contact Mating Area Plating Thickness:29.92 µin, .76 µm
Mating Cycles:1500
PCB Thickness (Recommended):1.57 mm
PCB Retention Type:Kinked Legs
Connector and Contact Terminate To:Printed Circuit Board
Connector System:Cable-to-Board
Connector Product Type:Connector
LED Indicator:Without
Offset:0 mm
Shell Plating Finish:Bright
Locating Posts:Without
Maximum Soldering Temperature:260 °C, 500 °F
Locking Latch:Without
Halogen Free:No
Locking Feature:With
PCB Connector Seating:Flush
Standard:USB 2.0
Material Flammability Standard:UL 94V-0
Part Aliases:292304-3
SKU:AMP292304-3

Detailed Description

292304-3 - This USB B R/A Receptacle Connector offers a reliable and lead-free solution for your connectivity needs. With a standard USB Type B design, right-angle orientation, and through-hole termination method, it is suitable for board mount applications. Constructed with thermoplastic housing and tin shell plating, this connector ensures durability and efficient signal transmission. Rated for 1A amperage and compatible with USB 2.0 standards, it is ideal for signal circuit applications. With a mating cycle of 1500 and gold contact plating, it guarantees long-lasting performance. RoHS compliant and packaged in a tray, it is environmentally friendly and easy to integrate into your manufacturing process.
