282873-3

AMP282873-3
Heilind Number:AMP282873-3
Manufacturer:TE Connectivity
Manufacturer Number:282873-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

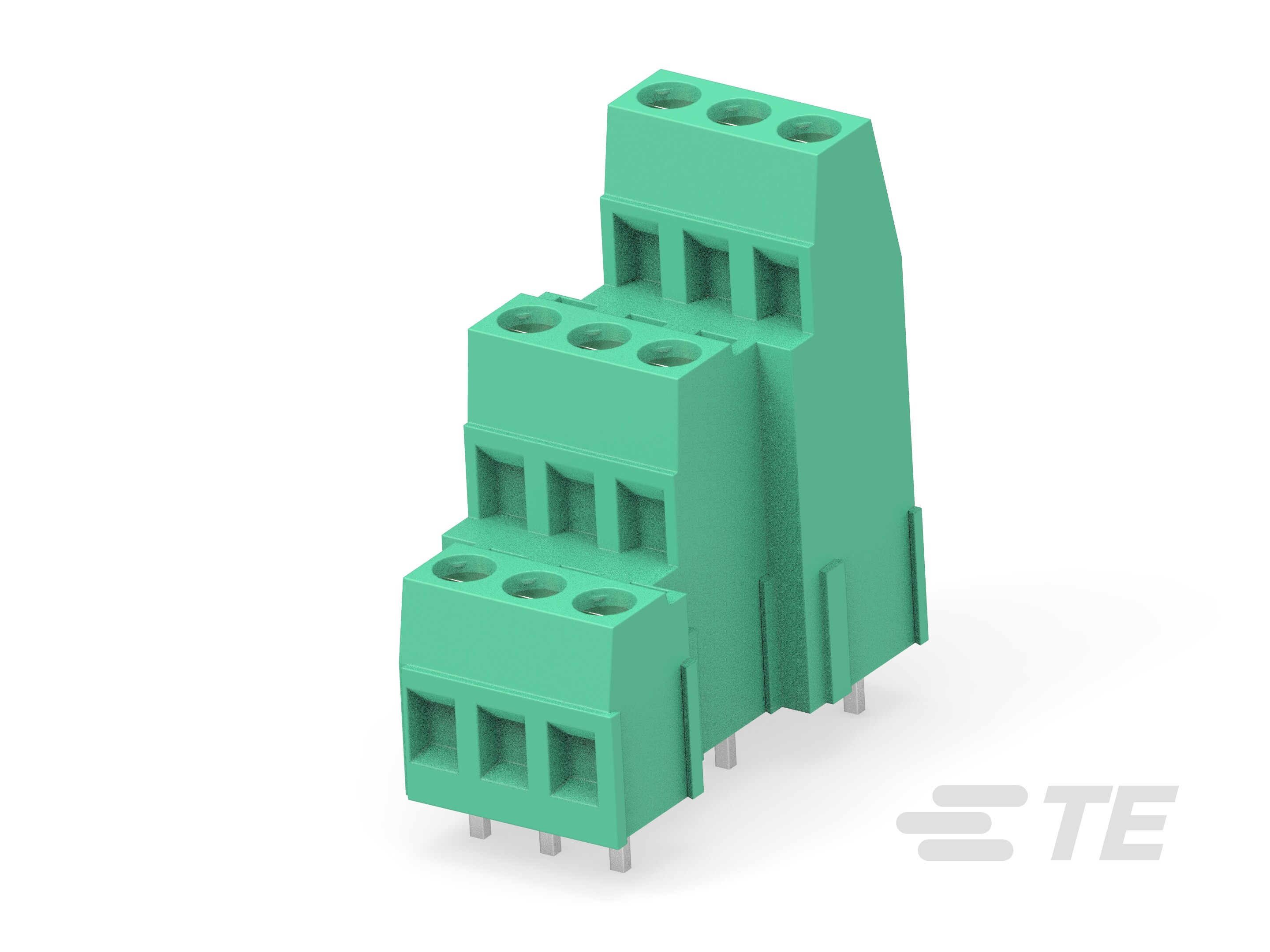

TERMI-BLOK PCB MOUNT 2&3 3P.5,

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282873-3
Amperage:13.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:3
Number of Rows:2
Mount Type:Board Mount
Contact Material:Brass
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:75
Contact Amperage:13.5 A
Number of Positions:3
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 1.31 mm², 16 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Header Type:Header Only
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Level 2/Level 3
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:Yes
Wire Protection:With
Part Aliases:282873-3
SKU:AMP282873-3

Detailed Description

TERMI-BLOK PCB Mount 2&3 3P.5 is a high-performance terminal block header designed for power and signal applications. With a current rating of 13.5 A and a voltage of 300 V AC, this header offers reliable connectivity in industrial settings. Featuring a durable PA 6/6 housing and brass contacts with tin plating, it ensures long-lasting performance even in harsh environments. The vertical mount angle and side stackable configuration allow for efficient PCB assembly, while the M3 screw size offers secure installation. With 3 positions and 2 rows, it provides ample connectivity options. RoHS non-compliant.
