2342843-3

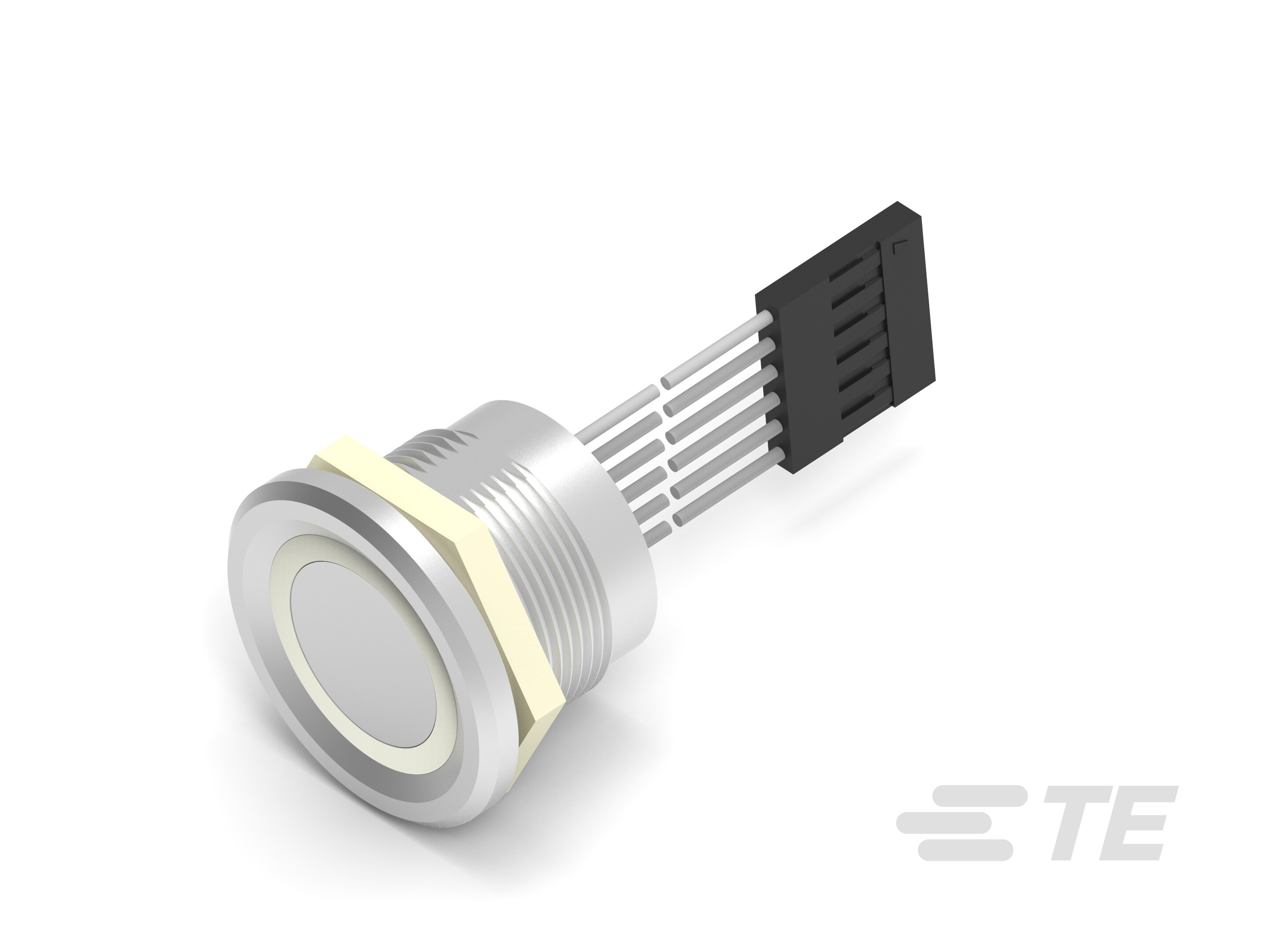

AVP22M CONC. S04 RGB R 500MM/1X6
The AVP22M CONC. S04 RGB R 500MM/1X6 push button switch, a sleek and reliable solution for your panel-mounting needs. This switch, featuring a vertical mount angle and epoxy seal, offers durable performance with a touch of illumination for added convenience. The SPST contact configuration ensures precise control, while the round silver actuator and cap add a touch of sophistication to any design. With a rated voltage of 5-24 VDC and VAC, this switch is versatile and energy efficient. Rest assured, it is also RoHS compliant, making it a responsible choice for your project. Upgrade your control panel with the AVP22M CONC. S04 RGB R switch for seamless operation in any setting.
Details
Product Category: | |
Manufacturer: | TE Connectivity |
Manufacturer Part Number: | TE Connectivity 2342843-3 |
Amperage: | 1 A |
Mount Type: | Panel |
Seal Type: | Epoxy |
Mount Angle: | Vertical |
Illumination: | Yes |
Contact Configuration: | SPST |
Actuator Type: | Round |
Switch Operation: | Off - (On), On - (Off) |
Actuator Color: | Silver |
Cap Color: | Silver |
Rated Voltage: | 5 - 24 VAC, 5 - 24 VDC |
SKU: | AMP2342843-3 |
series: | Alcoswitch AVP22 |
Actuator Force: | 204 - 510 g |
Actuator Material: | Steel |
Actuator Profile: | Flush |
Bushing Style: | Threaded |
Bushing Thread Size: | M22 x 1 |
Case Material: | Stainless Steel |
Ganged: | No |
Number of Actuators: | 1 |
Panel Cutout Size: | 22.2 (Diameter) mm / .87 (Diameter) in |
ESD Grounding Terminal: | Without |
Type of Contact: | 1 pole, NO |
Bushing Diameter: | 22 mm / .87 in |
Bushing Length: | 17 mm / .67 in |
Low Profile: | Yes |
Attachment Method: | Screw-On |
Screw & Hole Thread Size: | M22 x 1 |
Switch Type: | Pushbutton |
Dust Proof: | Yes |
Push Button Switch Product Type: | Vandal Resistant |
Oil-Tight: | No |
Temperature Rating: | Standard |
Supplier Product: | Push Button Switches |
Part Alias: | 2342843-3 |
Compliance
Environmental Initiative Details
Environmental Initiative: | RoHS |
---|---|
Compliant: | Unknown |
Date of this Information: | Unknown |
Notes: |
