2313225-1

AMP2313225-1
Heilind Number:AMP2313225-1
Manufacturer:TE Connectivity
Manufacturer Number:2313225-1
Datasheet:3D Model (STP)
ECAD Model:
3D Model

Description:

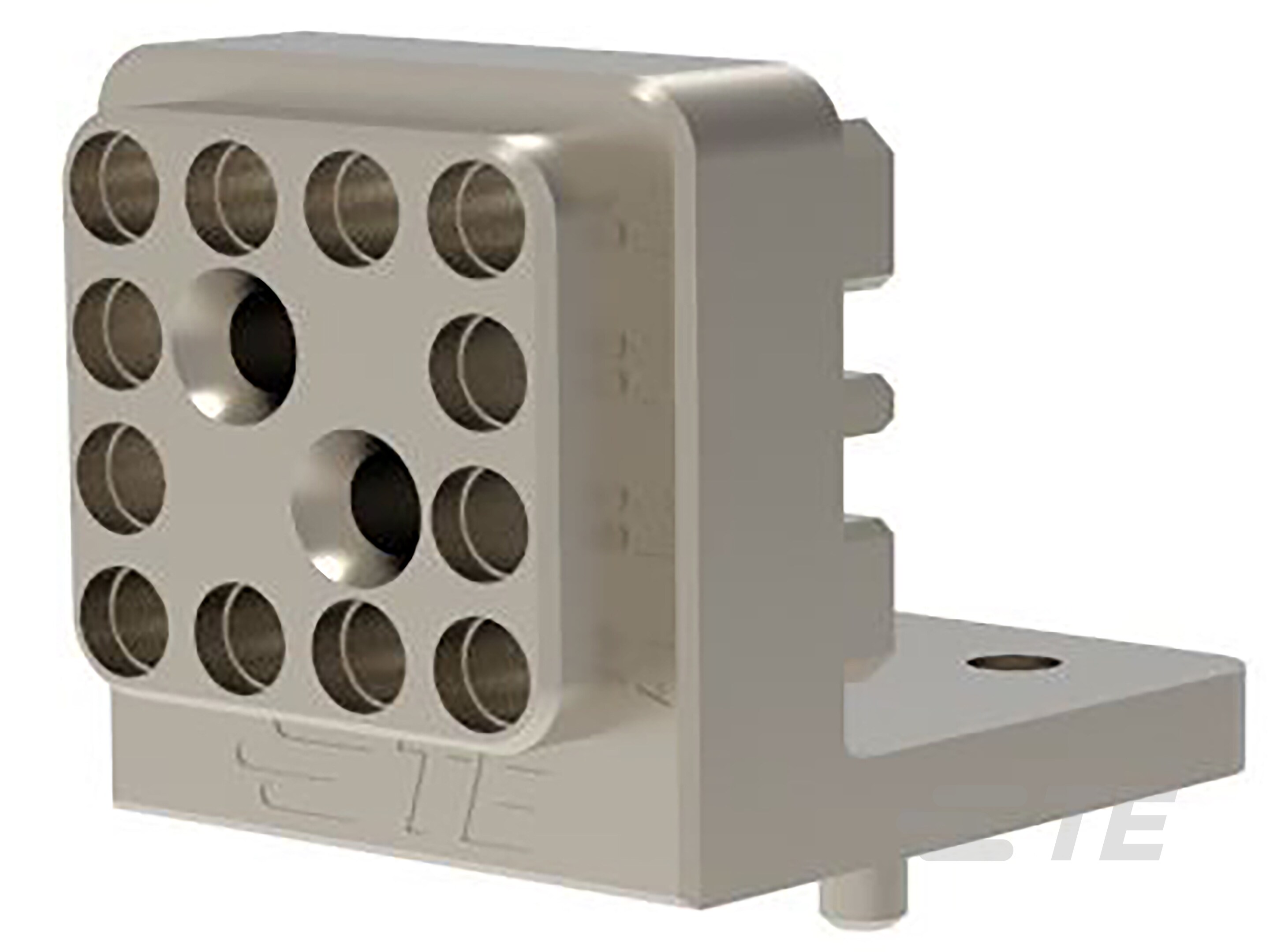

NanoRF, DC, 12 POS, SS

More >>

Specifications

AttributeValue
Product Category:
RF Coaxial Connectors & Accessories RF Coaxial Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2313225-1
Series:NanoRF
Mount Type:Board Mount
Mount Angle:Right Angle
Impedance:50 Ω
Body Material:Stainless Steel
Contact Amperage:1 A
Number of Positions:12
GPL:E25
Operating Temperature Range:-65 - 120 °C, -85 - 248 °F
Circuit Application:Signal
GPL Description:Aerospace Defense & Marine
Connector and Contact Terminate To:Wire & Cable
Product Code:X941
Number of Coaxial Contacts:12
Body Finish:Passivated
Center Contact Material:Beryllium Copper
Connector System:Cable-to-Cable
Contact Spacing:.11 in, 2.79 mm
ECCN:EAR99
Mounting Style:Screw
Part Aliases:2313225-1
SKU:AMP2313225-1

Detailed Description

Introducing the NanoRF DC 12 POS SS connector, a rugged and reliable solution for your signal transmission needs. With a compact board mount design and right-angle mount angle, this connector is perfect for space-constrained applications. Featuring 50 Ω impedance and a contact amperage of 1 A, it ensures efficient and secure connections. Constructed from high-quality stainless steel with a passivated body finish, it offers excellent durability even in harsh environments. Suitable for aerospace, defense, and marine applications, this connector is also RoHS compliant, making it a sustainable choice for your projects. Trust in the NanoRF DC connector for high-performance connectivity in demanding conditions.
