2308107-4

Heilind Number:	AMP2308107-4
Manufacturer:	TE Connectivity
Manufacturer Number:	2308107-4
Datasheet:	Statement of Compliance
ECAD Model:

Description:

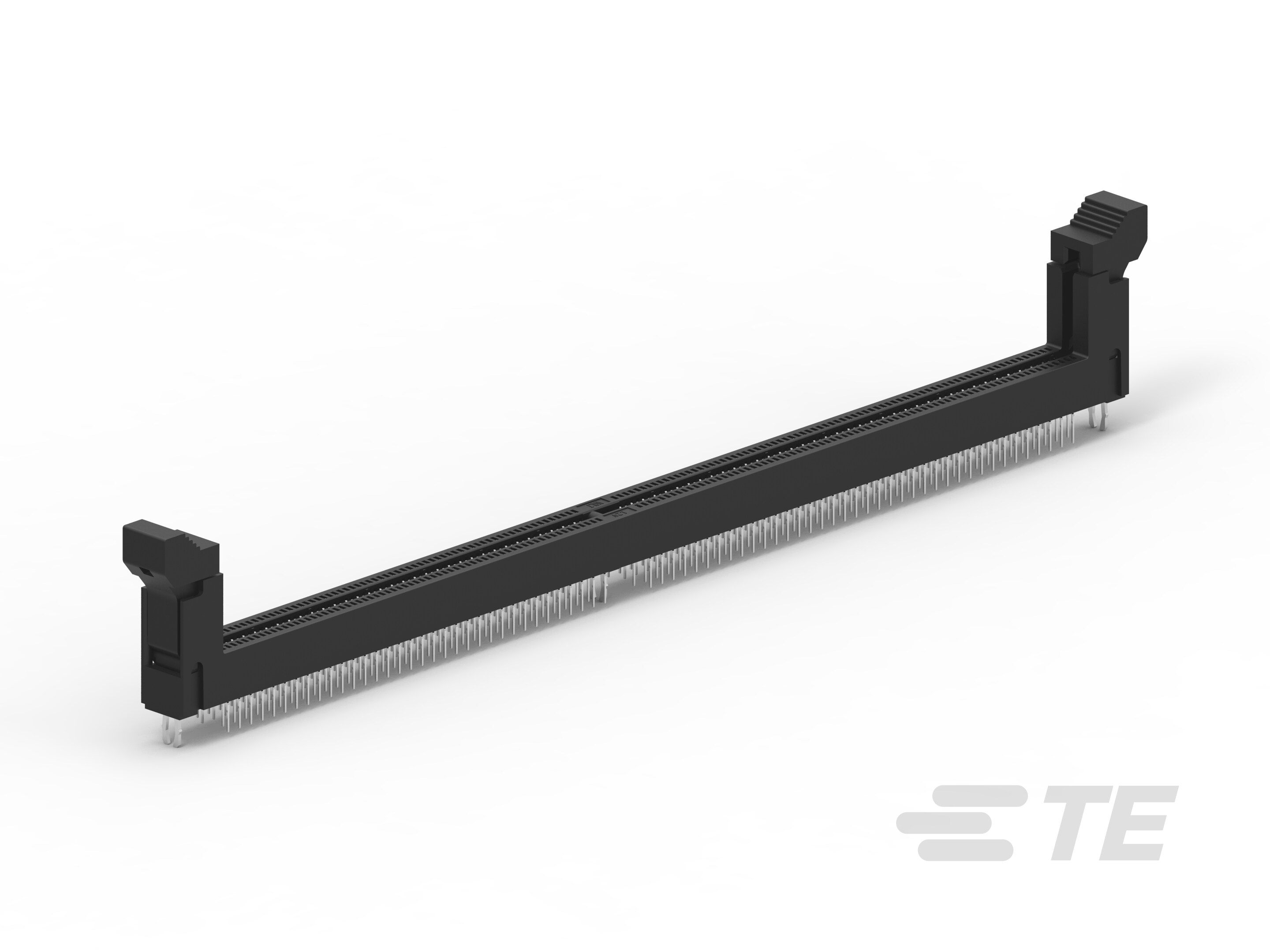

DDR4 DIMM 288 PIN TH TYPE

More >>

Specifications

Attribute	Value
Product Category:	Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2308107-4
Series:	DDR4 DIMM
Amperage:	.75 A
Connector Type:	DIMM
Housing Material:	High Temperature Thermoplastic
Number of Contacts:	288
Number of Rows:	2
Mount Type:	Board Mount
Contact Material:	Copper Alloy
Maximum Operating Temperature:	105 °C
Body Orientation:	Straight
Pitch:	.033 in, .85 mm
Voltage:	1.2 V
Socket Type:	Memory Card
Keying:	Standard
Card Orientation:	Vertical
Key Type:	Offset Right
Latch Material:	High Temperature Thermoplastic
Contact Amperage:	.75 A
Number of Positions:	288
Housing Color:	Black
GPL:	053
Profile:	Standard
Packaging:	Soft Tray
Operating Temperature Range:	-55 - 105 °C, -67 - 221 °F
Circuit Application:	Signal
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	30 µin, .76 µm
PCB Retention:	With
PCB Retention Type:	Boardlock
Boardlock Material:	Stainless Steel
Sealable:	No
GPL Description:	Data and Devices
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	E449
Connector System:	Board-to-Bus Bar
Connector Product Type:	Socket
ECCN:	EAR99
Ejector Type:	Standard
Card Insertion Style:	Direct Insert
PCB Mounting Style:	Through Hole
Ejector Location:	Both Ends
Ejector Material:	High Temperature Thermoplastic
Ejector Color:	Black
Latch Color:	Black
Center Key:	Offset Right
Center Post:	Without
DRAM Type:	DDR4
Standards Met:	UL 94V-0
Material Flammability Standard:	UL 94V-0
Part Aliases:	2308107-4
SKU:	AMP2308107-4

Detailed Description

The DDR4 DIMM 288 PIN TH TYPE is a high-performance memory module designed for seamless integration into your system. With a voltage rating of 1.2V and operating temperature range of -55 to 105°C, this DDR4 DIMM ensures reliable performance even in demanding environments. Featuring a standard keying and offset right key type, it guarantees proper alignment and secure connection. The 288 copper alloy contacts with gold plating offer excellent conductivity and signal transmission. Its UL 94V-0 housing material and boardlock PCB retention provide enhanced durability and stability. Ideal for data and device applications, this RoHS-compliant DDR4 DIMM is a dependable solution for your memory socket needs.
