2110759-1

AMP2110759-1
Heilind Number:AMP2110759-1
Manufacturer:TE Connectivity
Manufacturer Number:2110759-1
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

PT CONN ASSY 20 POS 16G SFP

More >>

Specifications

AttributeValue
Product Category:
High Speed Connectors & Components High Speed Cage & Connector Assemblies
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2110759-1
Termination Method:Surface Mount
Pitch:.031 in, 8 mm
Number of Positions:20
Data Rate:16 Gb/s
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
PCB Mounting Style:Surface Mount
Product:SFP/SFP+/zSFP+
Product Type:Connector
SKU:AMP2110759-1
Contact Mating Area Plating Material:Gold
Contact Mating Area Plating Thickness:15 µin
Contact Current Rating (Max):.5 A
UL Flammability Rating:UL 94V-0
Connector Mounting Type:Board Mount
Circuit Application:Signal
For Use With Pluggable I/O Products:SFP+ Cage
Pluggable I/O Applications:SFP
Connector and Contact Terminates To:Printed Circuit Board
Connector System:Cable-to-Board
Sealable:No
Form Factor:SFP+

Detailed Description

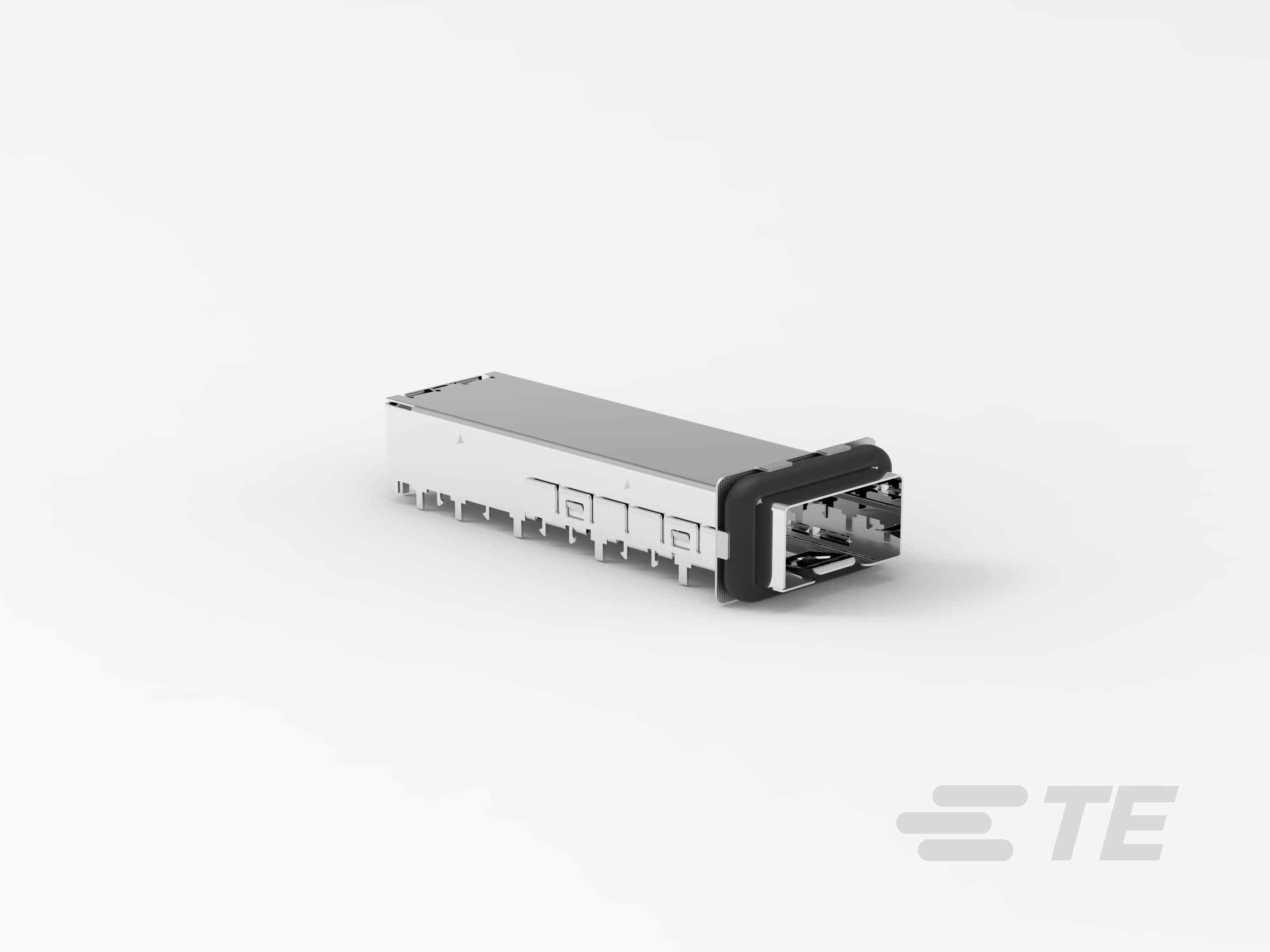

The 2110759-1 is a high-performance 20-position connector assembly designed for use with 16G SFP modules. Featuring a surface mount termination method and a pitch of .8mm, this connector ensures secure and reliable connections in a variety of applications. With a data rate of 16Gb/s, it is ideal for high-speed networking and telecommunications systems. Operating within a wide temperature range of -55 to 85°C, this connector is suitable for use in harsh environments. RoHS compliant and part of the SFP/SFP+/zSFP+ product line, the 2110759-1 guarantees both performance and environmental responsibility.
