205201-7

AMP205201-7
ICC Number:AMP205201-7
Manufacturer:TE Connectivity
Manufacturer Number:205201-7
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

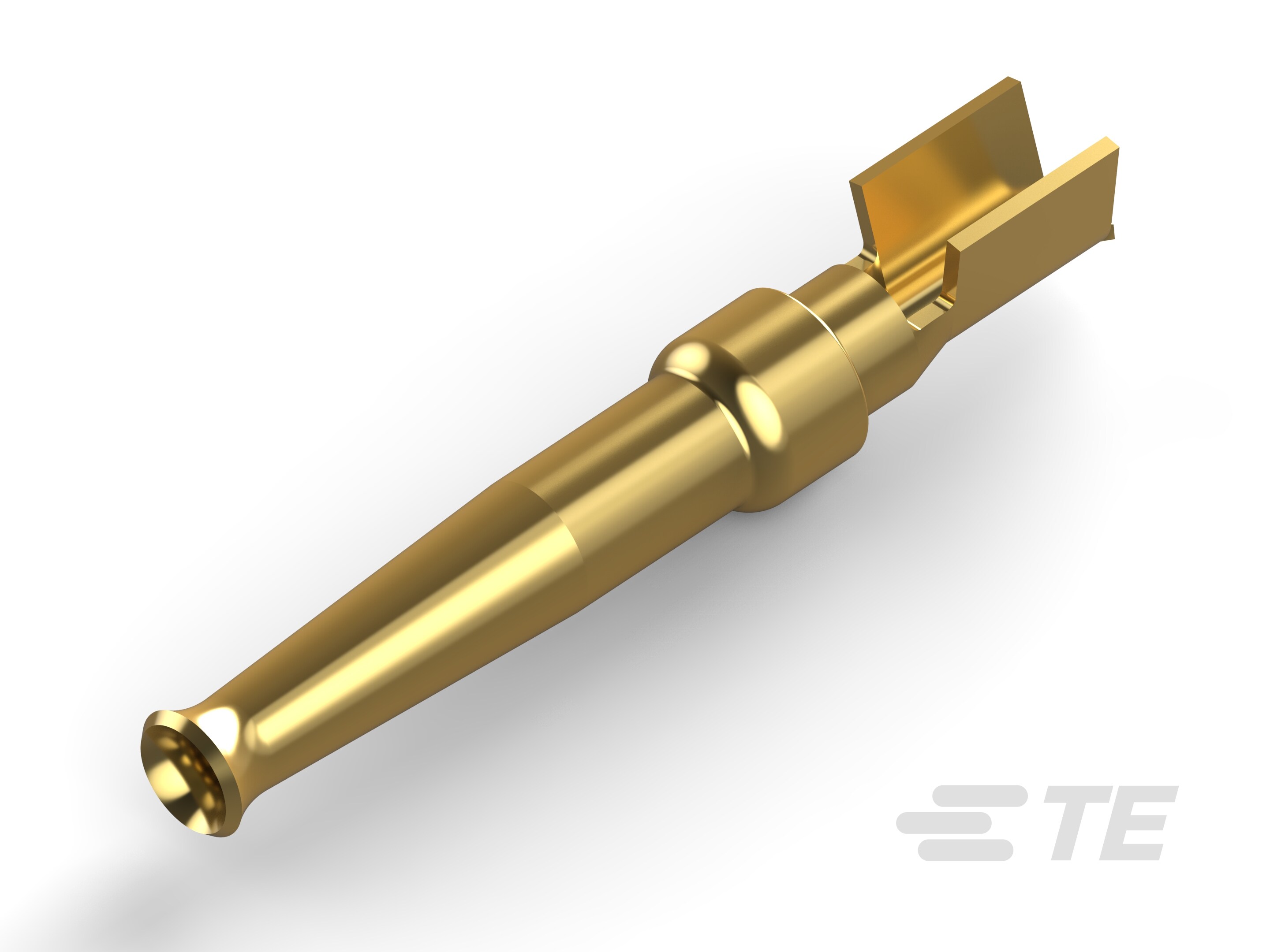

SOCKET CONT.

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connector Contacts
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 205201-7
Gender:Female
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Size:20
Contact Type:Socket
Pin Diameter:.04 in
Contact Amperage:2 A
GPL:035
Packaging:Loose Piece
Operating Temperature Range:-55 - 105 °C, -67 - 221 °F
Circuit Application:Signal
Contact Mating Area Plating:Gold Flash
Contact Underplating Material:Nickel
PCB Contact Termination Area Plating:Gold Flash
GPL Description:Data and Devices
Connector and Contact Terminate To:Wire & Cable
Product Code:4995
Wire Size:20 - 24 AWG, .2 - .6 mm²
Product Grade:Standard
Connector System:Cable-to-Cable
Connector Product Type:Contact
ECCN:EAR99
Wire Insulation Support:Without
Accepts Wire Insulation Diameter:.068 in
Insulation Diameter:.068 in
Contact Retention Type in Housing:Crimp Snap-In
Color Code:Red
Part Aliases:205201-7
SKU:AMP205201-7

Detailed Description

Introducing the 205201-7, a high-quality SOCKET CONT. for your connectivity needs. This female socket features a durable copper alloy construction with a crimp termination method, ensuring secure and reliable connections. Rated for 2A contact amperage, it is suitable for signal applications. The gold flash plating on the contact mating area and PCB termination enhances conductivity and corrosion resistance. Designed for 20-24 AWG wire, this contact is compatible with a wide range of cables. With its red color code and ROHS compliance, it is easy to identify and environmentally friendly. Trust in the 205201-7 for your cable-to-cable connector systems.
