205201-5

AMP205201-5
ICC Number:AMP205201-5
Manufacturer:TE Connectivity
Manufacturer Number:205201-5
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

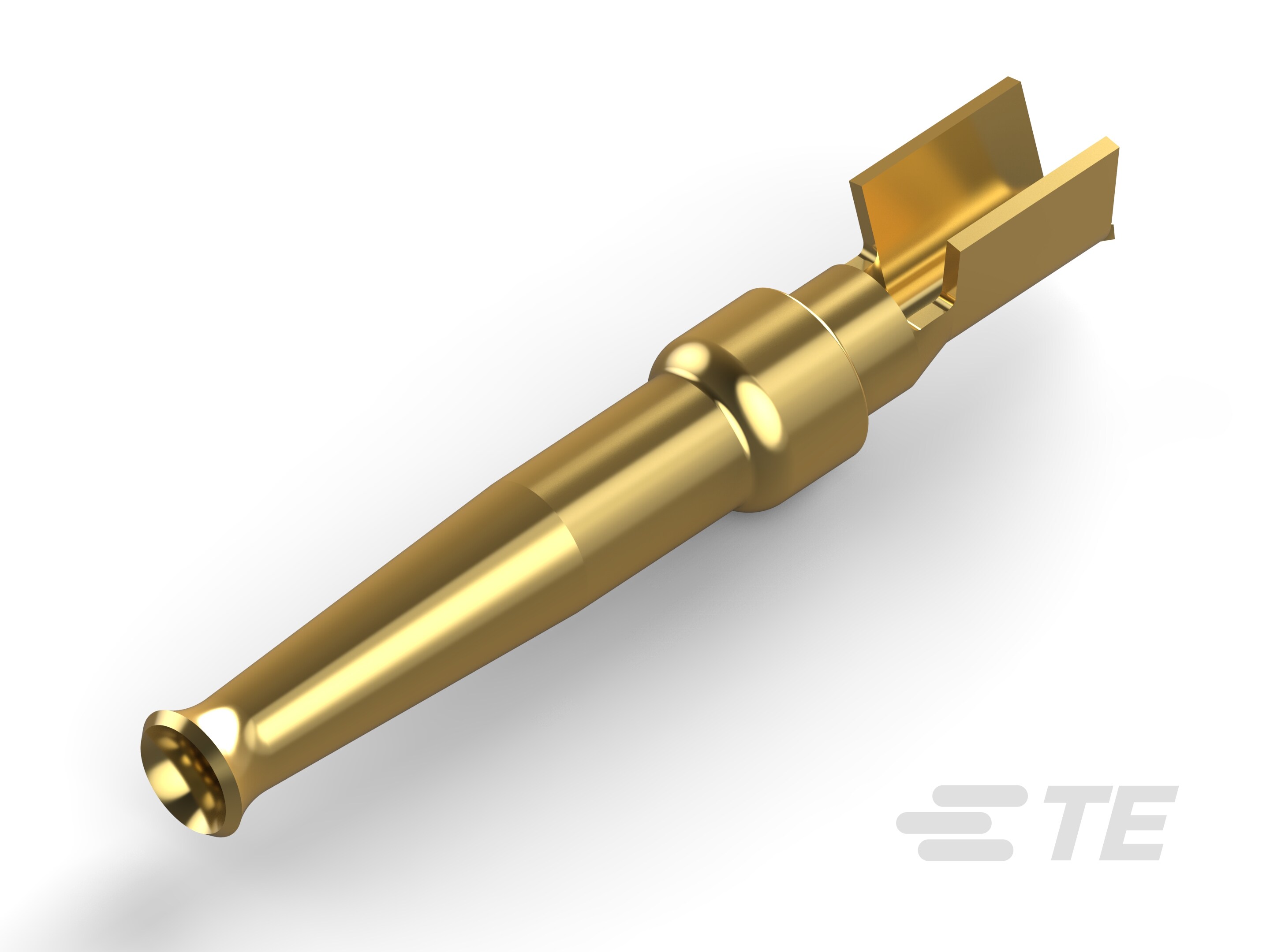

SOCKET CONT. 20 DF

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connector Contacts
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 205201-5
Gender:Female
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Size:20
Contact Type:Socket
Pin Diameter:.04 in
Contact Amperage:2 A
GPL:035
Packaging:Loose Piece
Operating Temperature Range:-55 - 105 °C, -67 - 221 °F
Circuit Application:Signal
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:30 µin
Contact Underplating Material:Nickel
PCB Contact Termination Area Plating:Gold Flash
GPL Description:Data and Devices
Connector and Contact Terminate To:Wire & Cable
Product Code:4995
Wire Size:20 - 24 AWG, .2 - .6 mm²
Product Grade:Standard
Connector System:Cable-to-Cable
Connector Product Type:Contact
ECCN:EAR99
Wire Insulation Support:Without
Accepts Wire Insulation Diameter:.068 in
Insulation Diameter:.068 in
Contact Retention Type in Housing:Crimp Snap-In
Color Code:Red
Part Aliases:205201-5
SKU:AMP205201-5

Detailed Description

Introducing the SOCKET CONT. 20 DF, a female connector designed for reliable signal transmission in electronic devices. Featuring a crimp termination method and constructed with durable copper alloy, this contact ensures secure and efficient connectivity. With a contact size of 20 and a pin diameter of .04 inches, it is compatible with various wire sizes ranging from 20 to 24 AWG. The gold-plated contact mating area offers superior conductivity, while the nickel underplating enhances durability. Operating in a wide temperature range from -55 to 105°C, this connector is suitable for diverse applications. RoHS compliant and color-coded for easy identification, the SOCKET CONT. 20 DF is a dependable solution for your connectivity needs.
