2013978-1

Heilind Number:	AMP2013978-1
Manufacturer:	TE Connectivity
Manufacturer Number:	2013978-1
Datasheet:	Datasheet
ECAD Model:

Description:

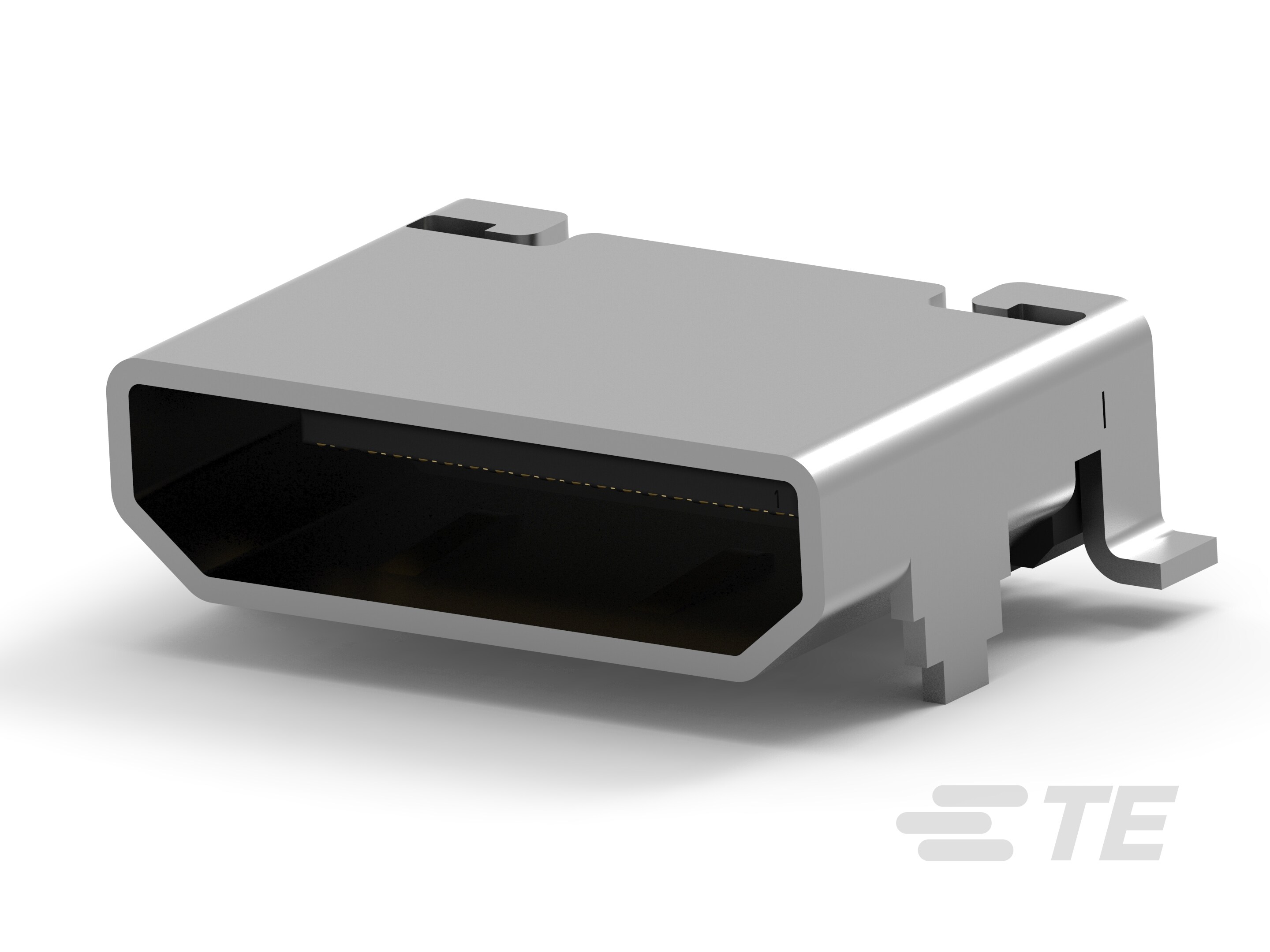

HDMI C TYPE REC ASSY DIP-SMT TYPE

More >>

Specifications

Attribute	Value
Product Category:	Audio, Video & Broadcast Connectors & Accessories Audio, Video & Broadcast Connectors
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2013978-1
Color:	Black
Series:	HDMI Type C Mini
Amperage:	.5 A
Gender:	Receptacle
Mount Type:	Board Mount
Termination Method:	Solder
Contact Plating:	Gold
Pitch:	.015 in, 4 mm
Connector Size:	Miniature
Shell Plating:	Tin over Nickel
Number of Ports:	1
Orientation:	Right Angle
Mount Location:	Top
Size:	Mini
Contact Amperage:	.5 A
Number of Positions:	19
Housing Color:	Black
Termination Type:	Surface Mount
GPL:	450
Tail Length:	.021 in, 5 mm
Packaging:	Tape & Reel
Operating Temperature Range:	-13 - 158 °F, -25 - 70 °C
Circuit Application:	Signal
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.1 µm, 3.937 µin
Mating Cycles:	5000
PCB Thickness (Recommended):	.063 in, 1.6 mm
PCB Retention Type:	Straight Leg
GPL Description:	Data and Devices
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	K567
Preloaded:	Yes
Connector System:	Cable-to-Board
ECCN:	EAR99
Shell Plating Finish:	Matte
Stacked:	No
PCB Mounting Style:	Surface Mount
Locating Posts:	Without
Assembly Process Feature:	Tape
Maximum Soldering Temperature:	250 °C
Part Aliases:	2013978-1
SKU:	AMP2013978-1

Detailed Description

Introducing the 2013978-1 HDMI C TYPE REC ASSY DIP-SMT TYPE connector, a versatile and high-performance solution for your audio and video connectivity needs. This Mini HDMI receptacle features a right angle, surface mount design with a low profile black housing, perfect for space-constrained applications. With gold contact plating and a current rating of .5 A, this connector ensures reliable signal transmission. Its 19 positions and single port configuration accommodate various cable setups, while its durable construction, featuring tin over nickel shell plating, guarantees long-lasting performance. RoHS compliant and suitable for operating temperatures ranging from -25 to 70°C, this connector is ideal for a wide range of applications in data and device connectivity. Available in Tape & Reel packaging, the 2013978-1 is ready for automated assembly, making it the perfect choice for high-volume production. Upgrade your audio and video systems with this premium Mini HDMI connector, your reliable link to seamless connectivity.
