| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2-2176246-4 |
| Size Code: | 2512 |
| Power Rating: | 1.5 W |
| Termination Type: | Solder |
| Resistance: | 82 Ω |
| Rated Voltage: | 250 V |
| Mounting Style: | Surface Mount |
| Dimensions: | 6.35 x 3.2 x .55 mm |
| Product: | Surface Mount Resistors |
| Product Type: | General Purpose Resistor |
| Element Type: | Thick Film |
| Tolerance: | 5% |
| Number of Terminations: | 2 |
| SKU: | AMP2-2176246-4 |
2-2176246-4
| Heilind Number: | AMP2-2176246-4 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 2-2176246-4 |
| ECAD Model: | |
Specifications
Detailed Description

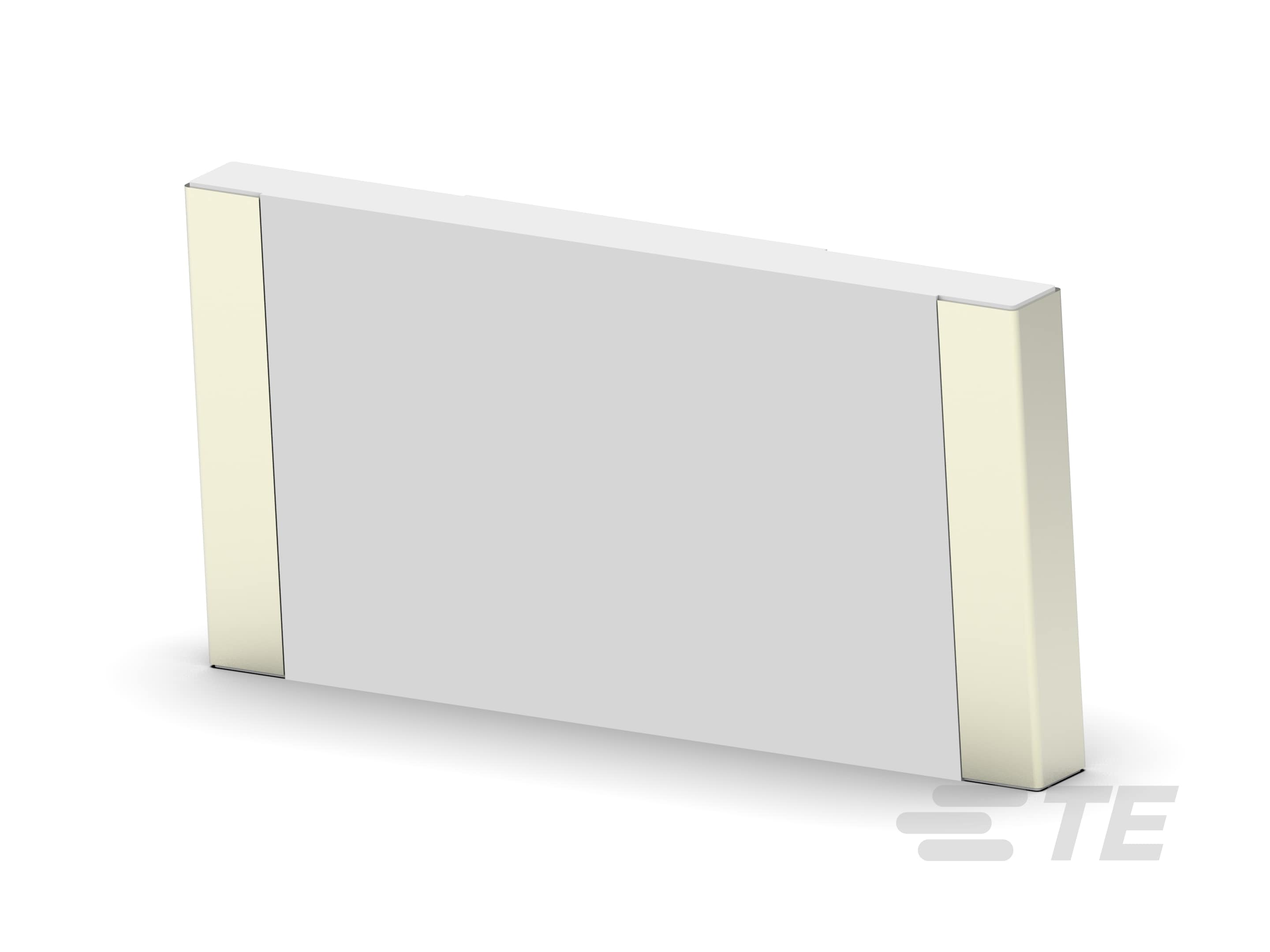

Introducing the CRGS2512 5% 82R Surface Mount Resistor, a high-quality component designed for general purpose applications. With a power rating of 1.5 W and a resistance of 82 Ω, this resistor is capable of handling up to 250 V. Its compact 2512 size and surface mount termination make it easy to integrate onto circuit boards, saving valuable space. Crafted with thick film technology, it offers reliable performance with a tight tolerance of 5%. The CRGS2512 is RoHS non-compliant and is not suitable for high-rel applications. Trust in its quality and efficiency for your electronic projects.
