| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2-1617031-1 |
| Mount Type: | Printed Circuit Board |
| Coil Voltage: | 26.5 VDC |
| Input Voltage: | 26.5 VDC |
| Coil Resistance: | 700 Ω |
| Termination Type: | PC Pin(s) |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Contact Current Rating: | 2 A |
| Part Aliases: | M39016/6-109M HFW1201K45M |
| SKU: | AMP2-1617031-1 |
2-1617031-1
Specifications
Detailed Description

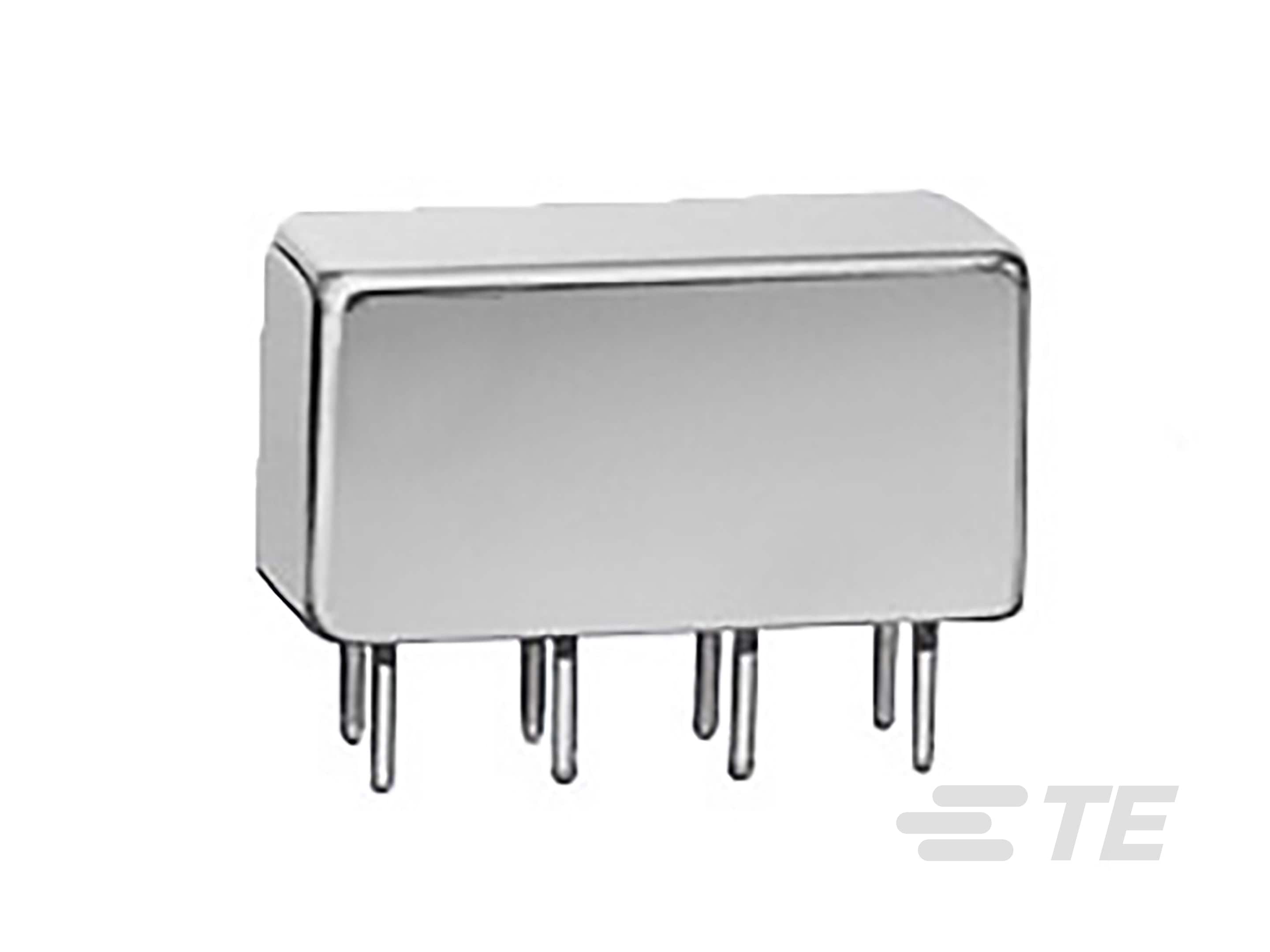

Introducing the HFW1201K45M, also known as M39016/6-109M, a high-performance signal relay designed for printed circuit board mounting. Featuring a low coil resistance of 700 Ω and a reliable 26.5 VDC coil voltage, this DPDT relay offers 2 Form C contact configuration with 2 C/O contacts, ensuring robust and efficient signal switching. Termination is made easy with PC Pin connectors, accommodating up to 2 A of current. With its military-grade construction and non-RoHS compliance, the HFW1201K45M is a dependable choice for critical applications in aerospace, defense, and telecommunications.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 06/05/2020 | P-20-018874 - Cage Code Change. clerical update to the cage code for the TE Connectivity/CII Guardian Cochin, India facility. The current Cate Code SX916 will expire on June 5, 2020 and will be replaced by Cage Code 1263Y. There will be no change in manufacturing location, only the identifying code associated with this manufacturing location will be updated. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 2-1617031-1 |
| Other Names: | M39016/6-109M HFW1201K45M |
