2-1472973-4
7012PILL=RLY,STD,ON,2P,125VDC,60MIN,LL

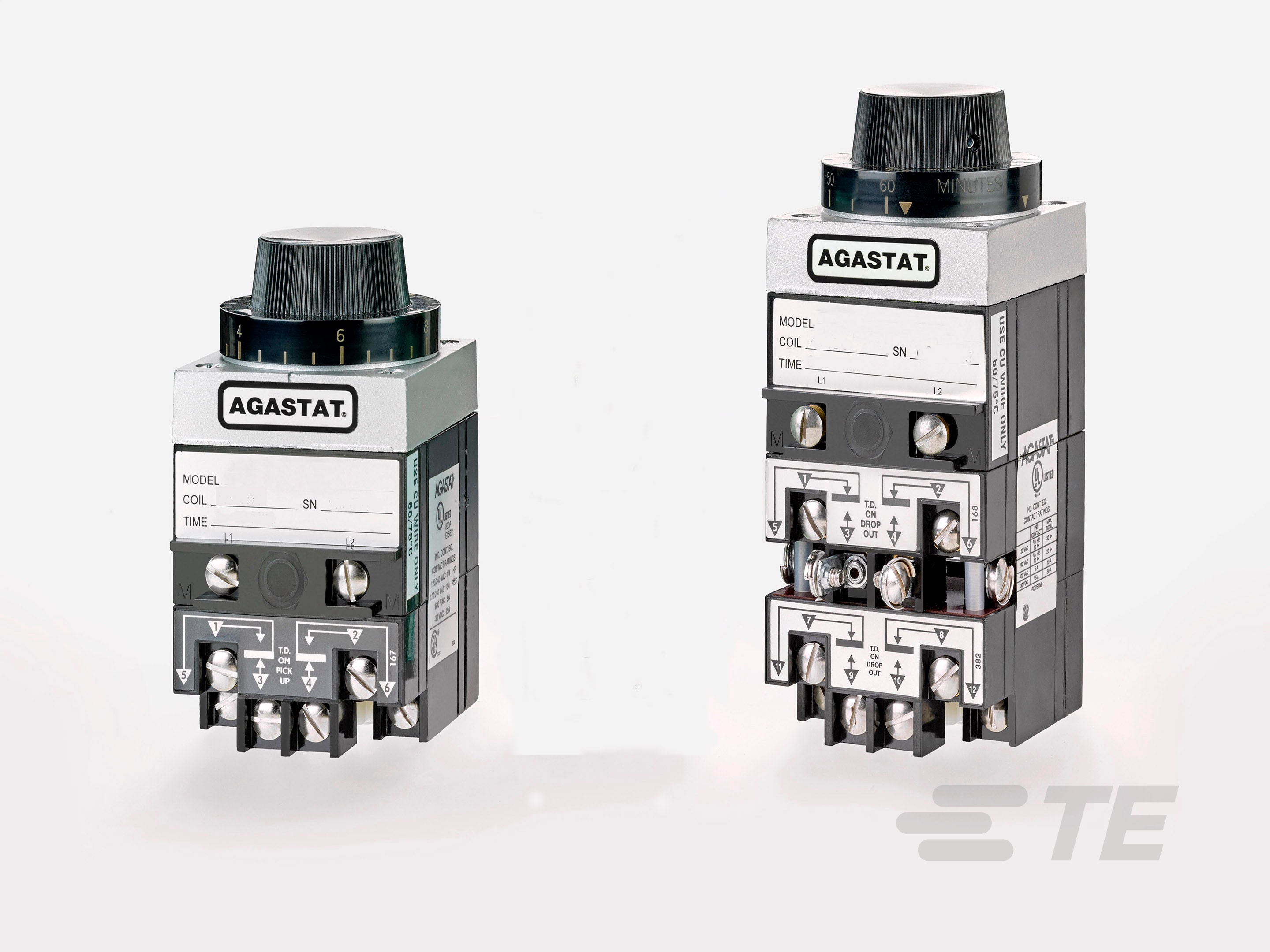

The 2-1472973-4 Time Delay Relay, a versatile and reliable solution for your control panel needs. This high-performance relay features a 10A capacity at 240VAC, with a mounting bracket for easy installation. Operating on a precise on-delay mechanism with a repeatability of ±10%, it ensures accurate timing in your system. The screw terminals allow for secure connections, while the compact dimensions of 4.52 x 3.25 x 3.09 inches make it ideal for space-constrained applications. With a contact arrangement of 2 Form C (DPDT), 2 C/O, and a delay time range of 6-60 minutes, this relay offers flexibility for various functions. The control knob input voltage of 125VDC and non-rohs compliance make it suitable for a wide range of industrial settings. Trust in the reliability and performance of the 2-1472973-4 Time Delay Relay for seamless operation in your control systems.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2-1472973-4 |
| Amperage: | 10 A at 240 VAC |
| Mount Type: | Mounting Bracket |
| Operation Type: | On-Delay |
| Repeatability: | ±10% |
| Termination Type: | Screw Terminals |
| Dimensions: | 114.8 x 82.55 x 78.48 mm, 4.52 x 3.25 x 3.09 in |
| Contact Arrangement: | 2 Form C, DPDT, 2 C/O |
| Delay Time: | 6 - 60 minutes |
| Input Voltage: | 125 VDC |
| Control Type: | Knob |
| SKU: | AMP2-1472973-4 |
| Multiple Timing Ranges: | Without |
| Actuating System: | DC |
| Option: | Two Auxiliary Switches - Instant Transfer on model 7014 only |
| Product Category: | Electromechanical Relays |
| Product Type: | Relay |
| Relay Type: | Time Delay |
| Magnetic Blow-Out Device: | Without |
| Operating Temperature Range: | -30 - 75 °C |
| Supplier Product: | Time Delay Relays |
| Part Alias: | 7012PILL |
Use With
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
