2-1462051-6

AMP2-1462051-6
Heilind Number:AMP2-1462051-6
Manufacturer:TE Connectivity
Manufacturer Number:2-1462051-6
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

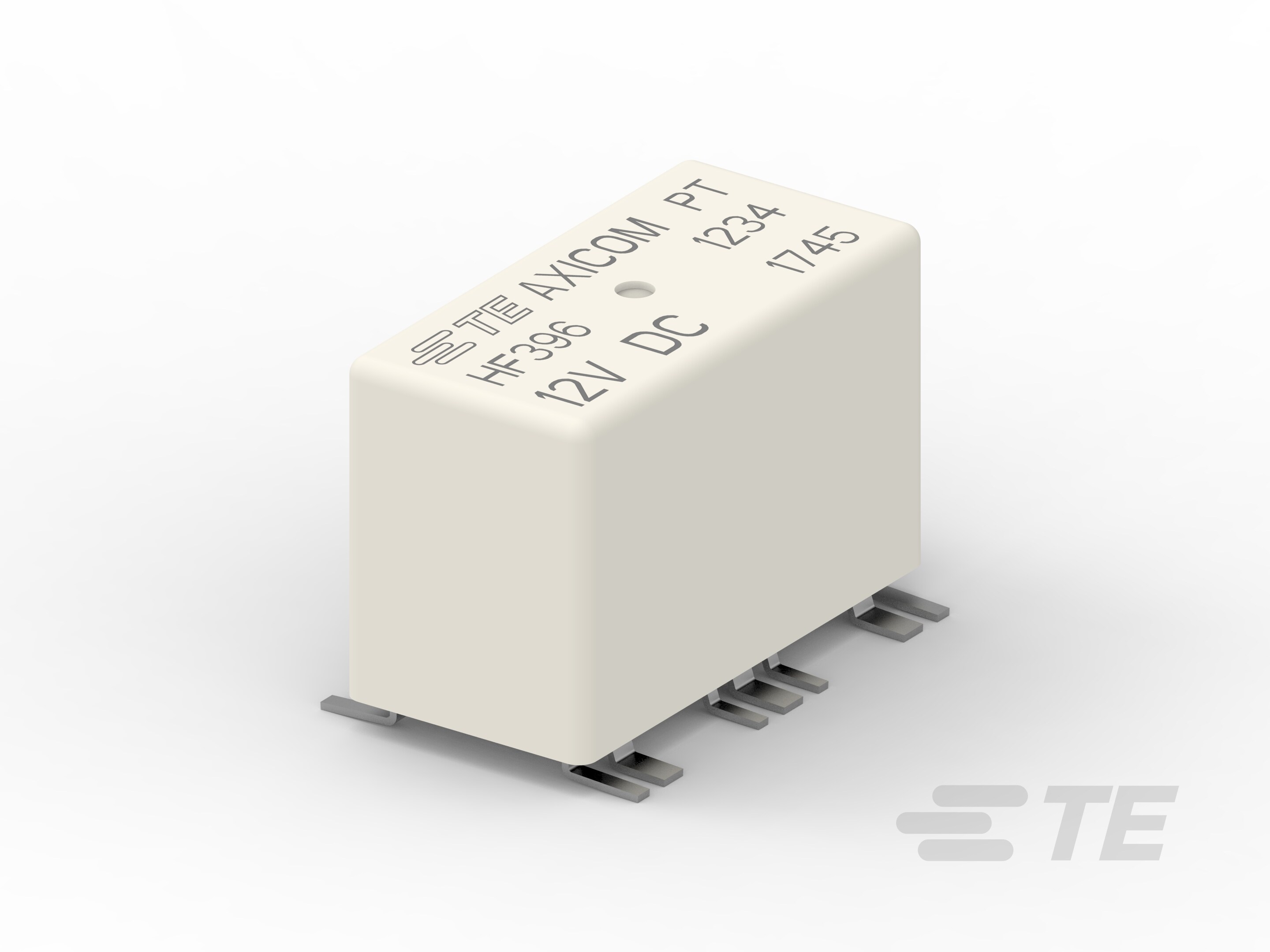

HF3 96S=50OHM 140MW 12V BIST 2COIL

More >>

Specifications

AttributeValue
Product Category:
Relays Signal & Communication Relays
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2-1462051-6
Series:Axicom HF3
Mount Type:Printed Circuit Board
Terminal Type:PCB-SMT
Insertion Loss:-.03 dB at 100 MHz, -.12 dB at 900 MHz, -.3 dB at 3 GHz
Number of Poles:1
Coil Resistance:1028 Ω
Coil Voltage:12 VAC
Contact Configuration:1 Form C (CO)
Maximum Switching Voltage:220 VDC, 250 VAC
Isolation:-55 dB at 3 GHz, -80 dB at 900 MHz, -95 dB at 100 MHz
Contact Current Rating:2 A
Dimensions:14.9 x 7.5 x 10.5 mm, .586 x .295 x .413 in
Coil Type:Bistable, 2 Coils
SKU:AMP2-1462051-6

Detailed Description

Introducing the Axicom HF3 96S=50OHM 140MW 12V BIST 2COIL relay, a high-performance signal and communication component designed for printed circuit board mounting. This 1 Form C (CO) relay boasts a low insertion loss of -.03 dB at 100 MHz, -.12 dB at 900 MHz, and -.3 dB at 3 GHz, ensuring efficient operation in demanding applications. With a coil resistance of 1028 Ω and a coil voltage of 12 VAC, it offers reliable performance in HVAC systems and other industrial settings. The relay features two bistable coils for enhanced functionality and has a compact footprint of .586 x .295 x .413 inches (14.9 x 7.5 x 10.5 mm). With a contact current rating of 2 A and a maximum switching voltage of 220 VDC or 250 VAC, this RoHS non-compliant relay is ideal for use in a variety of high-power applications. Trust the Axicom HF3 relay for dependable and efficient signal switching in your projects.
