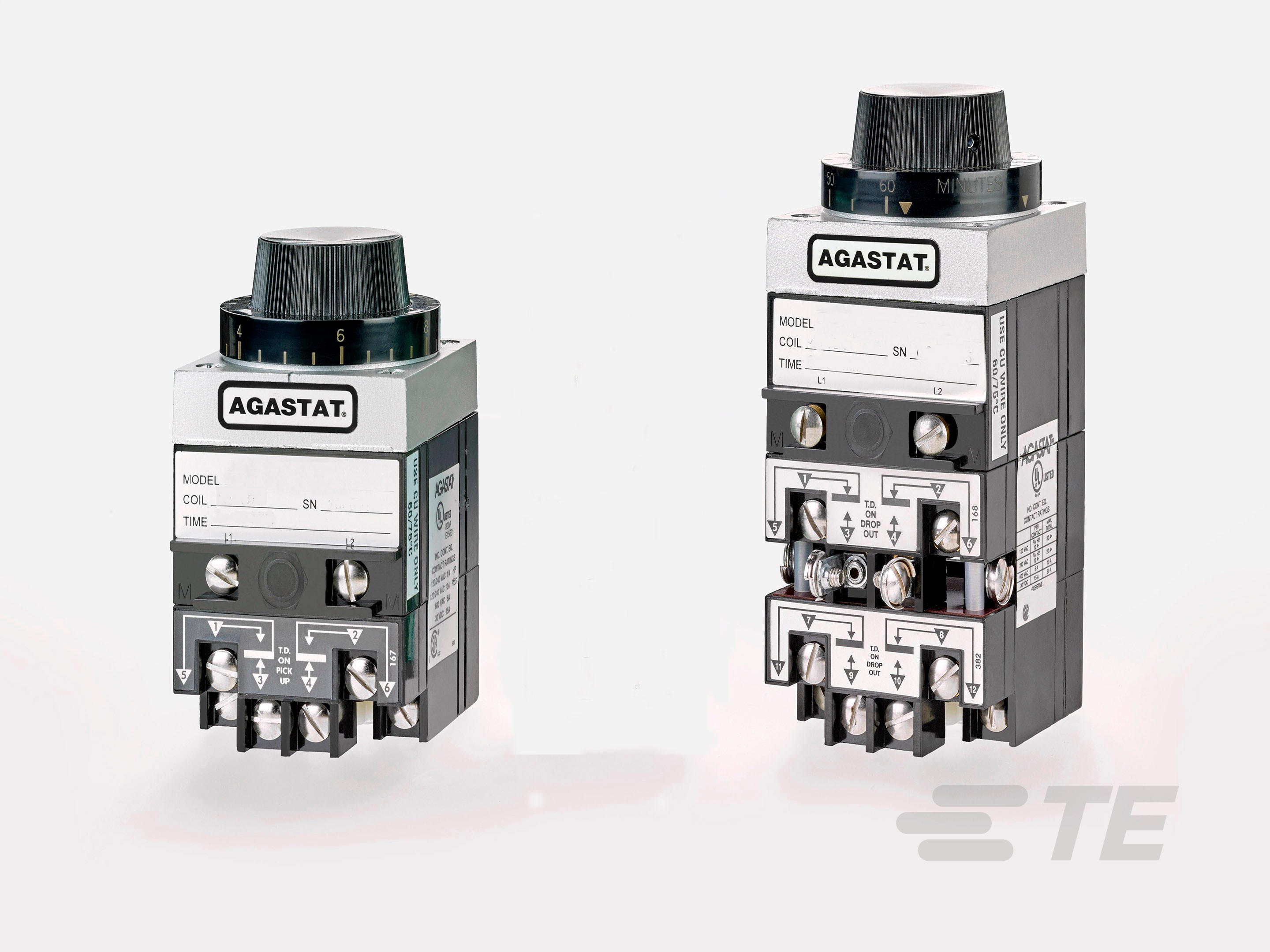

2-1423164-7
7022PF=RLY,STD,OFF,2P,125VDC,1
The 2-1423164-7, a high-performance time delay relay designed for precision control applications. Operating at 10 A and 240 VAC, this relay offers reliable performance in various systems. Featuring a convenient mounting bracket, installation is a breeze. With an off-delay operation type and ±10% repeatability, it ensures accurate timing functions. The screw terminals allow for easy and secure connections, while the compact dimensions of 114.8 x 65.3 x 71.9 mm (4.523 x 2.572 x 2.832 in) make it suitable for space-restricted environments. Boasting a contact arrangement of 2 Form C (DPDT, 2 C/O) and an input voltage of 125 VDC, it provides versatility for different setups. Control is effortless with the knob interface. Please note, this product is not RoHS compliant. Elevate your relay system with the 2-1423164-7.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2-1423164-7 |
| Amperage: | 10 A at 240 VAC |
| Mount Type: | Mounting Bracket |
| Operation Type: | Off-Delay |
| Repeatability: | ±10% |
| Termination Type: | Screw Terminals |
| Dimensions: | 114.8 x 65.3 x 71.9 mm, 4.523 x 2.572 x 2.832 in |
| Contact Arrangement: | 2 Form C, DPDT, 2 C/O |
| Input Voltage: | 125 VDC |
| Control Type: | Knob |
| SKU: | AMP2-1423164-7 |
| Multiple Timing Ranges: | Without |
| Actuating System: | DC |
| Timing Range (Off-Time): | 60 - 600 seconds |
| Product Category: | Electromechanical Relays |
| Product Type: | Relay |
| Relay Type: | Time Delay |
| Magnetic Blow-Out Device: | Without |
| Operating Temperature Range: | -30 - 75 °C |
| Supplier Product: | Time Delay Relays |
| Part Alias: | 2-1423164-7 |
Use With
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
