2-1393771-0

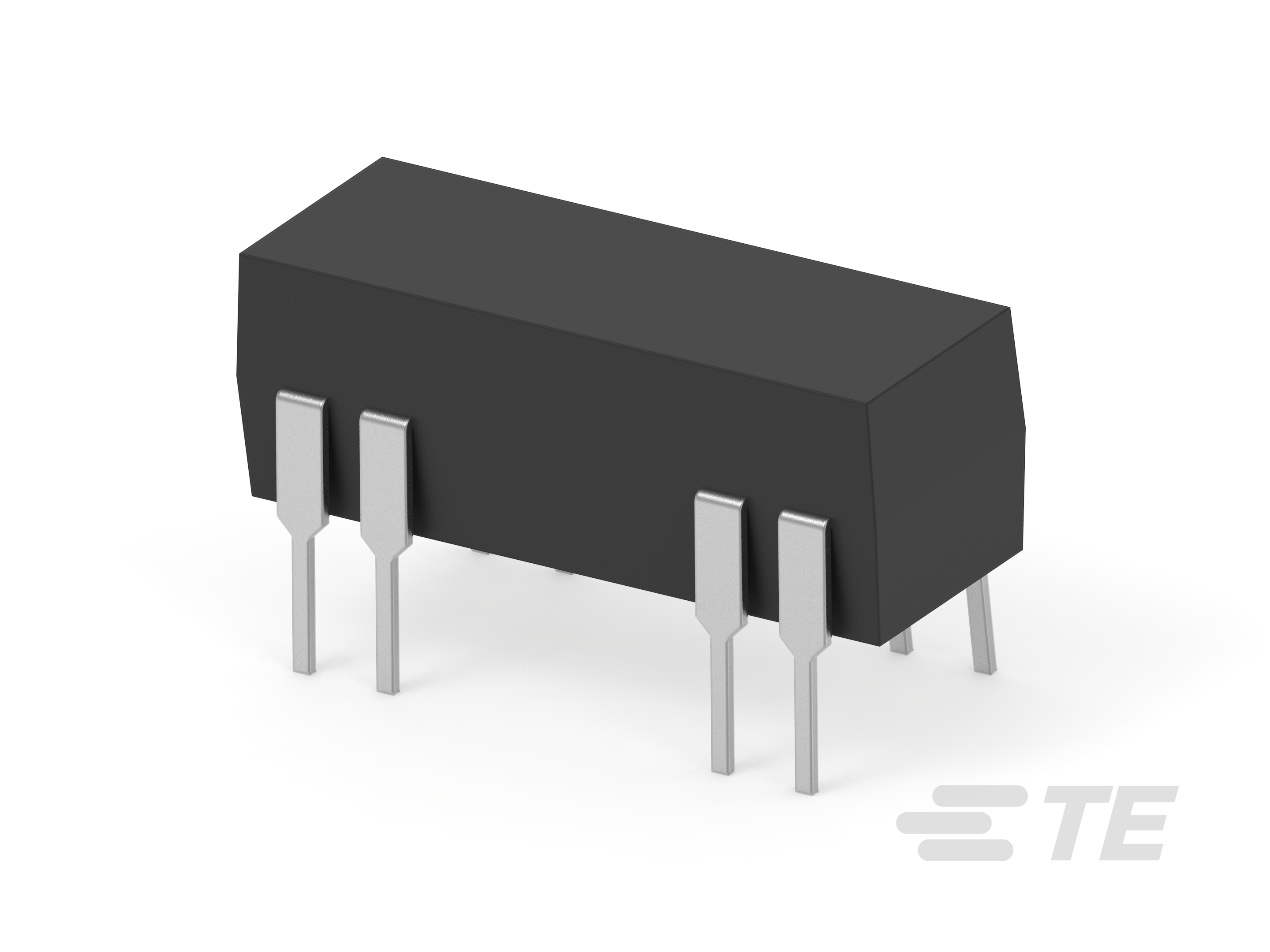

JWD-171-5=REED RELAYS

The JWD-171-5 Reed Relays, a reliable and high-performance solution for your signal switching needs. Part of the Potter & Brumfield JWD Series, these relays are designed for easy installation on printed circuit boards with through-hole terminals. Boasting low insertion loss of -.02 dB at 100 MHz and -.27 dB at 900 MHz, they ensure efficient signal transmission. With a single pole, normally open contact configuration, they offer versatility for various applications. The coil operates at 24 VAC or 24 VDC, with a low power consumption of 50-288 mW. Rated for a maximum switching voltage of 100 VDC and a contact current of .4 A, these relays guarantee reliable performance. RoHS compliant and suitable for HVAC applications, the JWD-171-5 is the ideal choice for high-reliability signal switching in your projects.
AVAILABILITY
Immediate Shipment:NA
Stock Location:In Stock
Factory Stock:Call for Stock
Factory Lead:
Unit Of Measure:
Minimum/Multiple:1/1
Pricing
CALL: 800.422.3911
Invalid quantity value
Details
Product Category:
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2-1393771-0
Series:Potter & Brumfield JWD Series
Mount Type:Printed Circuit Board
Terminal Type:PCB-THT
Insertion Loss:-.02 dB at 100 MHz, -.27 dB at 900 MHz
Number of Poles:1
Coil Resistance:2150 Ω
Coil Voltage:24 VAC, 24 VDC
Power Consumption:50 - 288 mW
Contact Configuration:1 Form A (NO)
Maximum Switching Voltage:100 VDC
Isolation:-20.7 dB at 900 MHz, -39 dB at 100 MHz
Termination Type:Through Hole
Contact Current Rating:4 A
Coil Type:Monostable
SKU:AMP2-1393771-0
Weight:.0811 oz
Contact Current Class:0 - 2 A
Contact Plating Material:Ruthenium
Contact Material:Ruthenium
Contact Special Features:Reed Contacts
Height:8 mm / .315 in
Length:20.3 mm / .799 in
Width:7.62 mm / .3 in
Height Class (Mechanical):7 - 8 mm
Length Class (Mechanical):16 - 20 mm
Width Class (Mechanical):6 - 8 mm
Actuating System:DC
Coil Power Rating Class:200 - 300 mW
Coil Special Features:UL Coil Insulation
Contact Switching Load (Min):10mA @ .01V
Contact Voltage Rating:20 VDC
Contact Limiting Breaking Current:.5 A
Contact Limiting Continuous Current:.5 A
Contact Limiting Making Current:.5 A
Contact Limiting Short-Time Current:.5 A
Insulation Initial Resistance:1000000 MΩ
Insulation Initial Dielectric Between Open Contacts:250 Vrms
Insulation Initial Dielectric Between Coil/Contact Class:0 - 500 V
Insulation Initial Dielectric Between Contacts and Coil:500 Vrms
Signal Relay Coil Magnetic System:Monostable, DC
Signal Relay Coil Power Rating (DC):400 mW
Performance Type:Standard
Product Type:Relay
Relay Type:JWD/JWS Series Reed Relay
Relay Style:JWD/JWS Series Reed Relays
Environmental Ambient Temperature (Max):85 °C / 85 °F
Operating Temperature Range:-35 - 85 °C
Environmental Category of Protection:RTIII
Environmental Ambient Temperature Class:70 - 85°C
Supplier Product:Signal Relays
Part Alias:2-1393771-0

Environmental Initiative Details

Environmental Initiative:RoHS
Compliant:Unknown
Date of this Information:Unknown
Notes:
