2-1393763-3

AMP2-1393763-3
Heilind Number:AMP2-1393763-3
Manufacturer:TE Connectivity
Manufacturer Number:2-1393763-3
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

V23100V4305C11

More >>

Specifications

AttributeValue
Product Category:
Relays Signal & Communication Relays
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2-1393763-3
Series:Axicom Reed Relay V23100 -V4
Mount Type:Printed Circuit Board
Terminal Type:PCB-THT
Insertion Loss:-.02 dB at 100 MHz, -.27 dB at 900 MHz
Number of Poles:1
Coil Resistance:200 Ω
Coil Voltage:5 VDC
Power Consumption:50 - 288 mW
Contact Configuration:1 Form A (NO)
Maximum Switching Voltage:175 VDC
Isolation:-20.7 dB at 900 MHz, -39 dB at 100 MHz
Termination Type:Through Hole
Contact Current Rating:4 A
Coil Type:Monostable
SKU:AMP2-1393763-3

Detailed Description

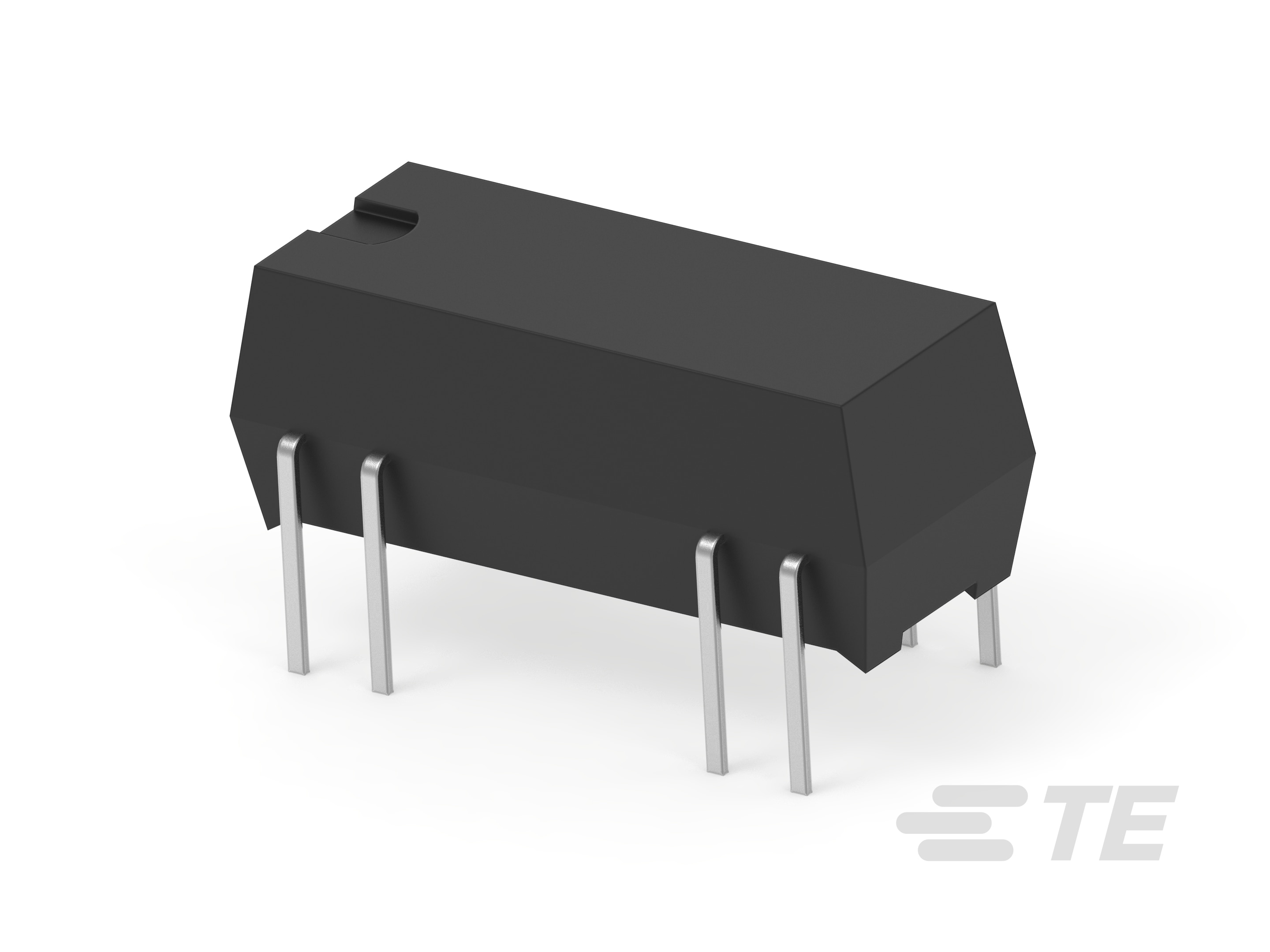

The V23100V4305C11 is a high-performance Axicom Reed Relay from the V23100-V4 series, designed for reliable signal switching on printed circuit boards. Featuring a durable PCB-THT terminal type, this relay offers low insertion loss of -0.02 dB at 100 MHz and -0.27 dB at 900 MHz, ensuring efficient signal transfer. With a single pole configuration and 1 Form A (NO) contact arrangement, it is suitable for a wide range of applications. The coil resistance of 200 Ω and 5 VDC coil voltage, with a power consumption of 50-288 mW, provide optimal performance. Rated for a maximum switching voltage of 175 VDC and a contact current rating of 0.4 A, this relay guarantees reliable operation. With RoHS compliance, it meets environmental standards, making it an ideal choice for various industries.
