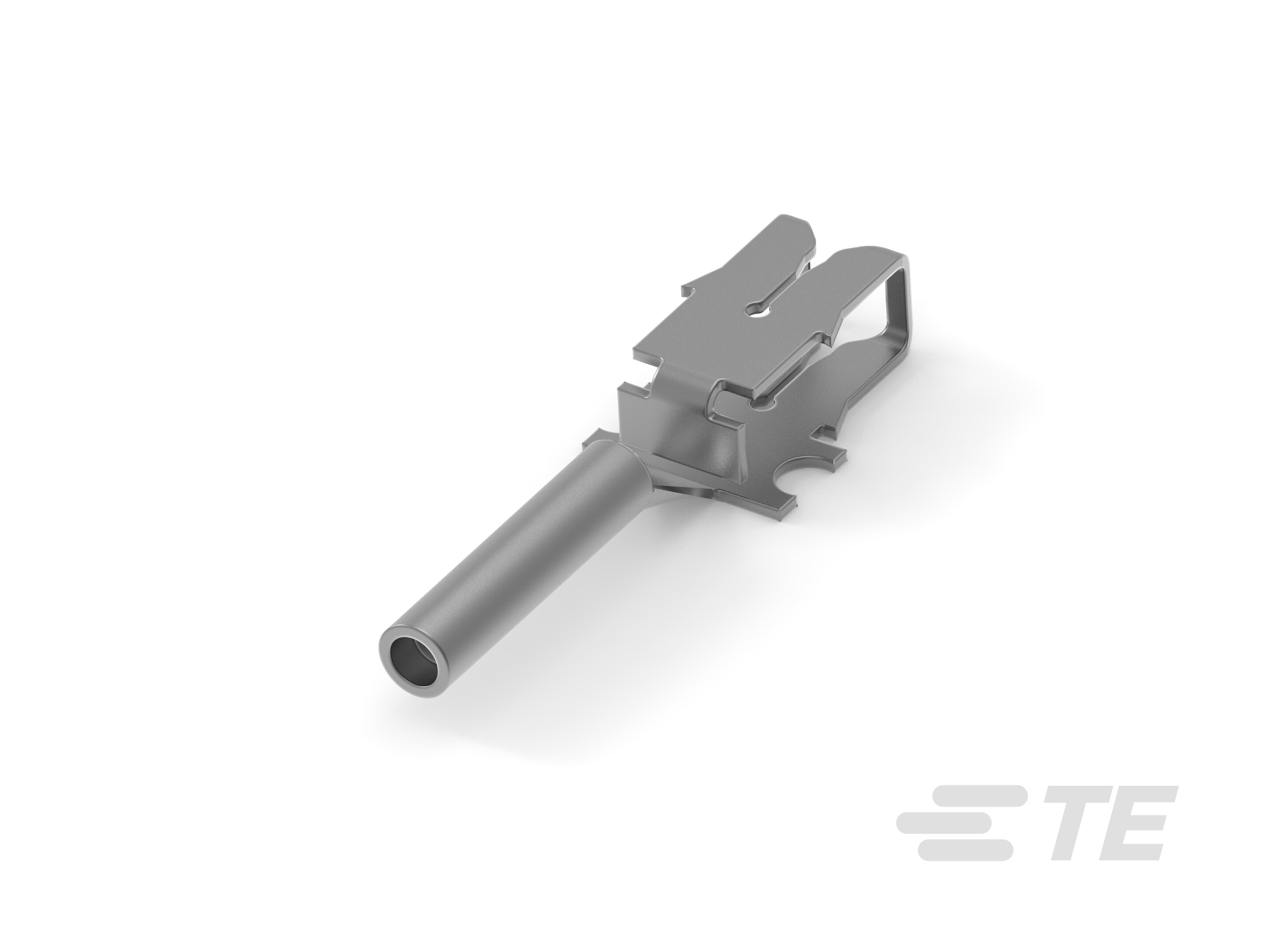

1987501-1
MAG-MATE WITH SOLDER PIN SIZE 0.187
The MAG-MATE with Solder Pin, featuring a convenient size of 0.187 for efficient connectivity. This versatile push wire terminal, part of the MAG-MATE series, offers reliable performance with an IDC Standard termination method. Crafted with a durable solder post terminal type, it ensures secure connections, while the mating retention type with barbs enhances stability. The terminal splice type of Tab further facilitates easy installation. A must-have for various applications, this product is a trusted solution for professionals in need of high-quality magnet wire terminals. Rest assured, it is fully RoHS compliant for environmentally friendly operations. Update your toolkit with the 1987501-1 for seamless connectivity.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1987501-1 |
| Series: | MAG-MATE |
| Termination Method: | IDC Standard |
| Terminal Type: | Solder Post |
| Mating Retention Type: | Barbs |
| Terminal / Splice Type: | Tab |
| Product: | Magnet Wire Terminals |
| SKU: | AMP1987501-1 |
| Plating Material: | Phosphor Bronze / Pre-Tin |
| Cavity Size: | Size 1 |
| Terminal Orientation: | Straight |
| Mating Tab Width: | 1 mm / .039 in |
| Mating Tab Thickness: | .32 mm / .012 in |
| Material Thickness: | .33 mm / .013 in |
| Overall Length: | 7.1 mm / .28 in |
| Magnet Wire Size: | 27 - 25 AWG / .36 - .45 mm |
| Stock Thickness (Magnet Wire Side): | .32 mm / .0125 in |
| Terminal Height: | 3.4 mm / .133 in |
| Wire/Cable Type: | Magnet Wire |
| Sealable: | No |
| Operating Temperature Range: | -65 - 150 °C / -85 - 302 °F |
Use With
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
