| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1924579-3 |
| Termination Method: | Crimp |
| Contact Plating: | Nickel |
| Wire Size: | 18 - 20 AWG, .51 - .82 mm² |
| Crimp Type: | F-Crimp |
| Terminal / Splice Type: | Pin |
| Product: | Automotive, Truck, Bus, & Off-Road Terminals |
| SKU: | AMP1924579-3 |
| series: | AMPSEAL 16 |
| Interface Plating: | Nickel (Ni) |
| Mating Pin Diameter: | 1.58 mm / .0625 in |
| Wire Insulation Diameter: | 1.27 - 2.71 mm / .05 - .107 in |
| Wire Size Search: | 18 AWG / 19 AWG / 20 AWG / .5 mm² / .6 mm² / .75 mm² |
| Customer Preferred Contact: | No |
| Terminal Transmits: | 25 - 40 A (Power) |
| Wire Type: | Copper |
| Sealable: | No |
1924579-3
| Heilind Number: | AMP1924579-3 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1924579-3 |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 1924579-3, a high-quality PIN CONTACT WIRE TO WIRE NICKE terminal designed for automotive, truck, bus, and off-road applications. This terminal features a durable Nickel contact plating, ensuring reliable conductivity in harsh environments. With a termination method of Crimp and a crimp type of F-Crimp, it offers secure and efficient wire connections. Suitable for 18-20 AWG (0.51-0.82 mm²) wires, this terminal is a perfect choice for automotive wiring systems. Please note that this product is not RoHS compliant. Upgrade your vehicle's electrical connections with the 1924579-3 terminal.
Application Tooling
| Product | Part # | Description | Stock |
|---|---|---|---|

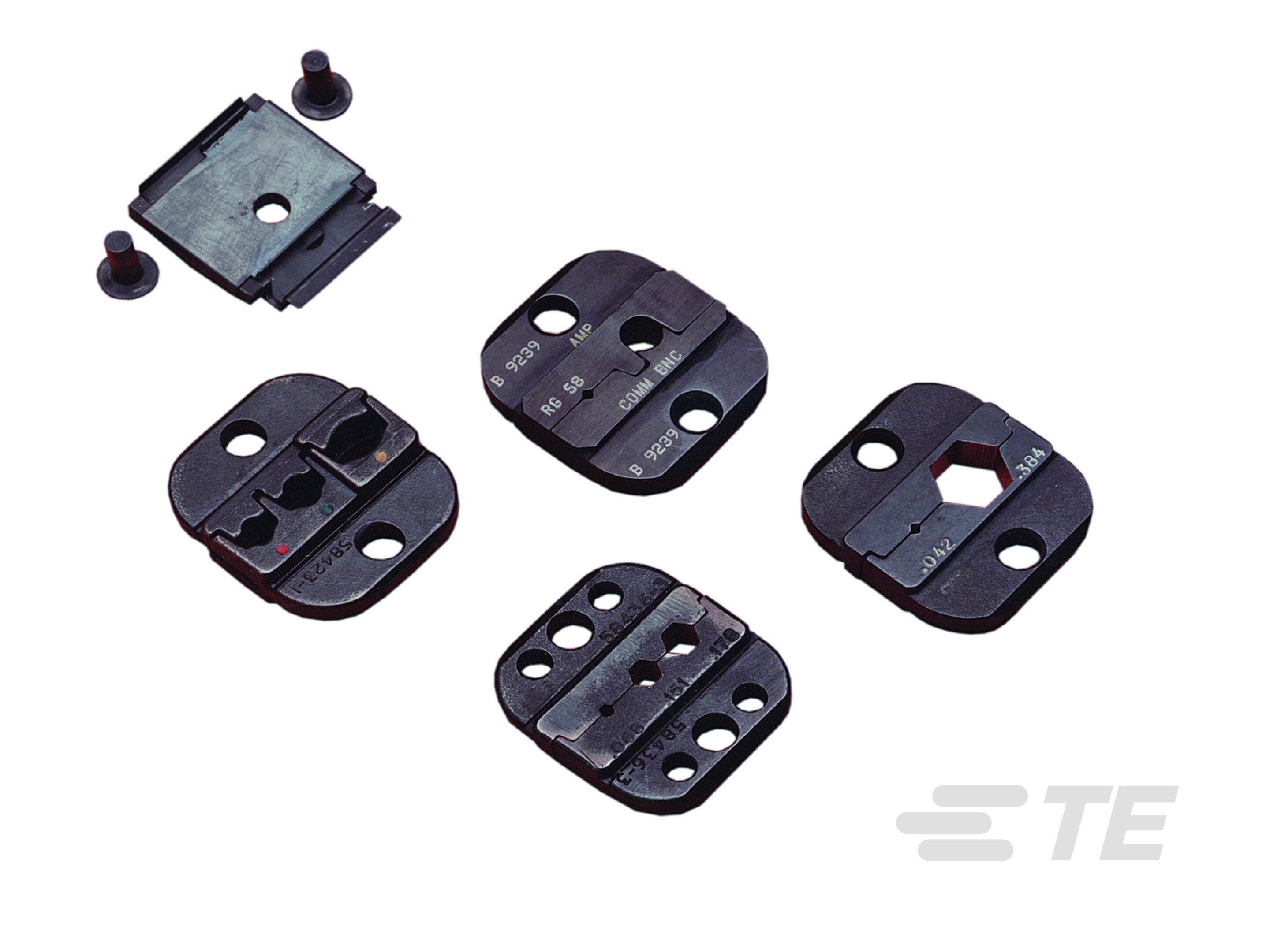

 | TE Connectivity 2119118-1 |  | |
 | TE Connectivity 2119118-2 | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 05/24/2022 | PCN-22-133829 - Additional Raw Material supplier. In order to prevent disruptions due to raw material shortage, we're adding a new raw material supplier. | Download | |||
