1827855-1
0.50 SERIES CONNECTER RECEPTACLE CONTACT
The 1827855-1, a high-quality automotive, truck, bus, and off-road terminal designed for reliable performance in a wide range of applications. This crimp termination method connector features a durable construction and is RoHS compliant, ensuring it meets environmental standards. With an operating temperature range of -30 to 90°C (-22 to 194°F), it is suitable for use in various conditions. The F-Crimp type and receptacle splice make for easy and secure connections, while the terminal's clean body and primary locking feature enhance safety and stability. Ideal for automotive professionals, this connector accommodates wire sizes ranging from .22 to .35 mm², providing versatility and convenience in installation. Trust in the 1827855-1 for your connectivity needs in demanding automotive environments.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1827855-1 |
| Termination Method: | Crimp |
| Operating Temperature Range: | -22 - 194 °F, -30 - 90 °C |
| Wire Size: | .22 - .35 mm² |
| Crimp Type: | F-Crimp |
| Terminal Primary Locking Feature: | Clean Body |
| Terminal / Splice Type: | Receptacle |
| Product: | Automotive, Truck, Bus, & Off-Road Terminals |
| SKU: | AMP1827855-1 |
| series: | 0.50 Connector System |
| Interface Plating: | Tin (Sn) |
| Mating Tab Thickness: | .4 mm / .016 in |
| Mating Tab Width: | .5 mm / .02 in |
| Wire Insulation Diameter: | .95 - 1.2 mm / .037 - .047 in |
| Wire Size Search: | 22 AWG / 23 AWG / .22 mm² / .25 mm² / .3 mm² / .35 mm² |
| Terminal Transmits: | 0 - 24 A (Low Power) |
| Wire Type: | Copper |
| Sealable: | No |

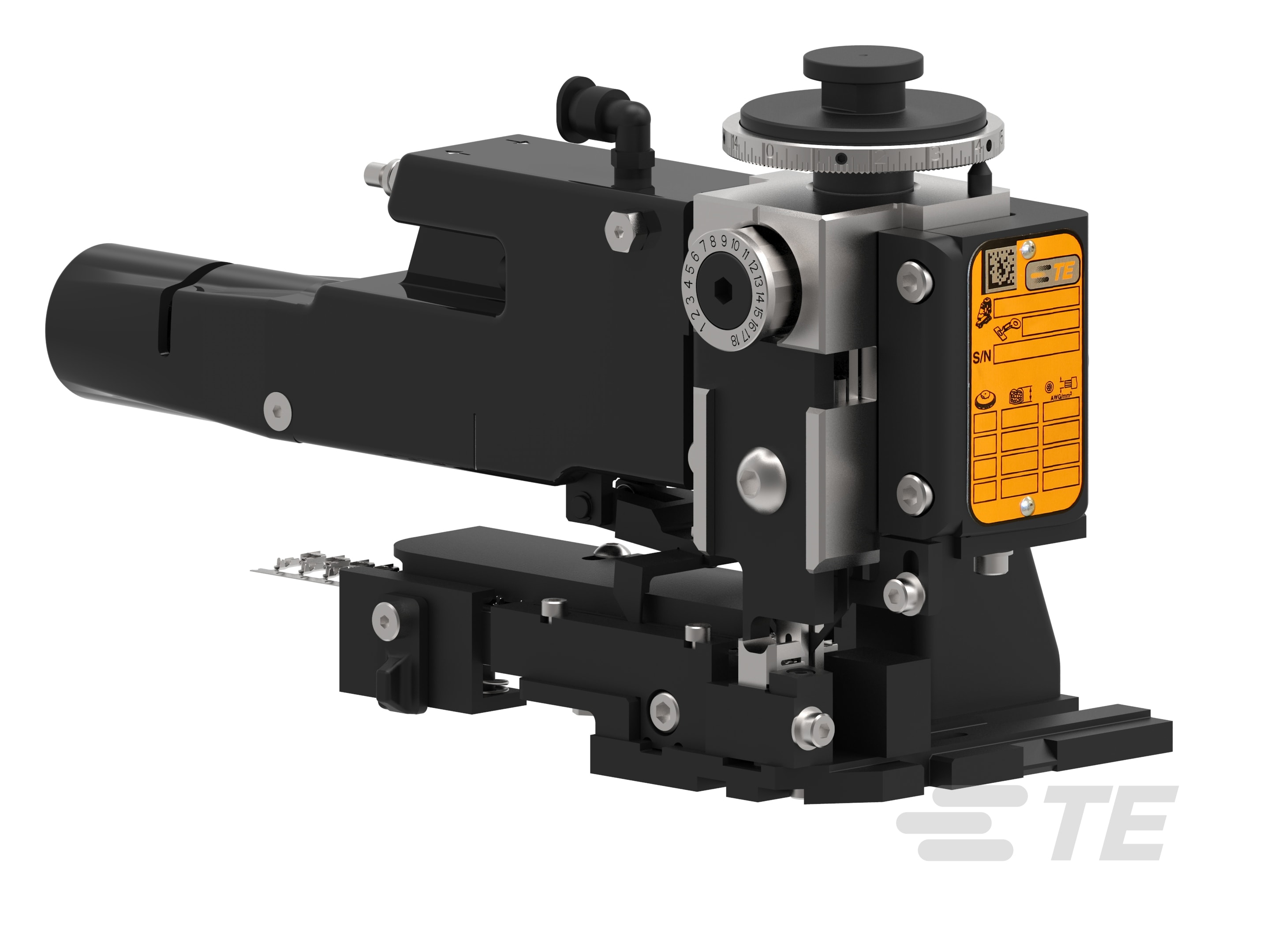

Application Tooling
Use With
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
