175269-1
070 REC (M) FOR NSCC
The 175269-1, a high-quality automotive terminal designed for optimal performance in demanding environments. This crimp termination method ensures secure and reliable connections, while the tin contact plating offers excellent conductivity and corrosion resistance. With an operating temperature range of -30 to 105 °C (-22 to 221 °F), this terminal is suitable for a wide range of applications. The F-Crimp design accommodates wire sizes from .5 to 1.25 mm², making it versatile for various projects. Featuring a receptacle splice type and a clean body primary locking feature, this terminal guarantees a stable and secure connection. RoHS compliant and suitable for automotive, truck, bus, and off-road use, the 175269-1 is a trusted solution for your connectivity needs.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 175269-1 |
| Termination Method: | Crimp |
| Contact Plating: | Tin |
| Operating Temperature Range: | -22 - 221 °F, -30 - 105 °C |
| Wire Size: | .5 - 1.25 mm² |
| Crimp Type: | F-Crimp |
| Terminal Primary Locking Feature: | Clean Body |
| Terminal / Splice Type: | Receptacle |
| Product: | Automotive, Truck, Bus, & Off-Road Terminals |
| SKU: | AMP175269-1 |
| series: | Multilock Connector System |
| Interface Plating: | Tin (Sn) |
| Mating Tab Thickness: | .64 mm / .025 in |
| Mating Tab Width: | 1.8 mm / .071 in |
| Wire Insulation Diameter: | 1.8 - 2.6 mm / .071 - .102 in |
| Wire Size Search: | 16 AWG / 17 AWG / 18 AWG / 19 AWG / .5 mm² / .6 mm² / .75 mm² / .85 mm² / 1 mm² / 1.25 mm² |
| Terminal Transmits: | 0 - 24 A (Low Power) |
| Sealable: | No |
| Receptacle Style: | 180° |
| Part Alias: | 0-0175269-1 |

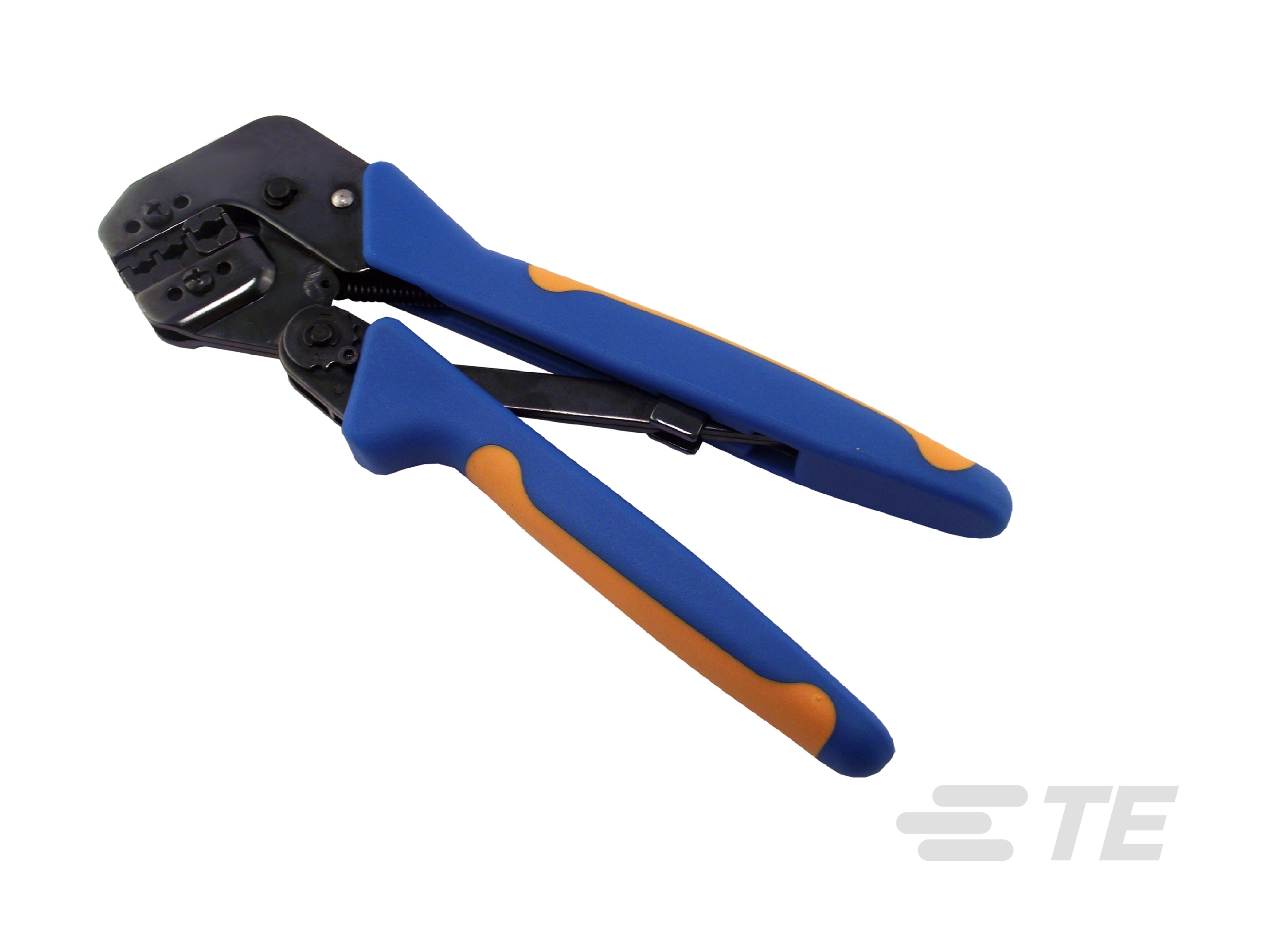

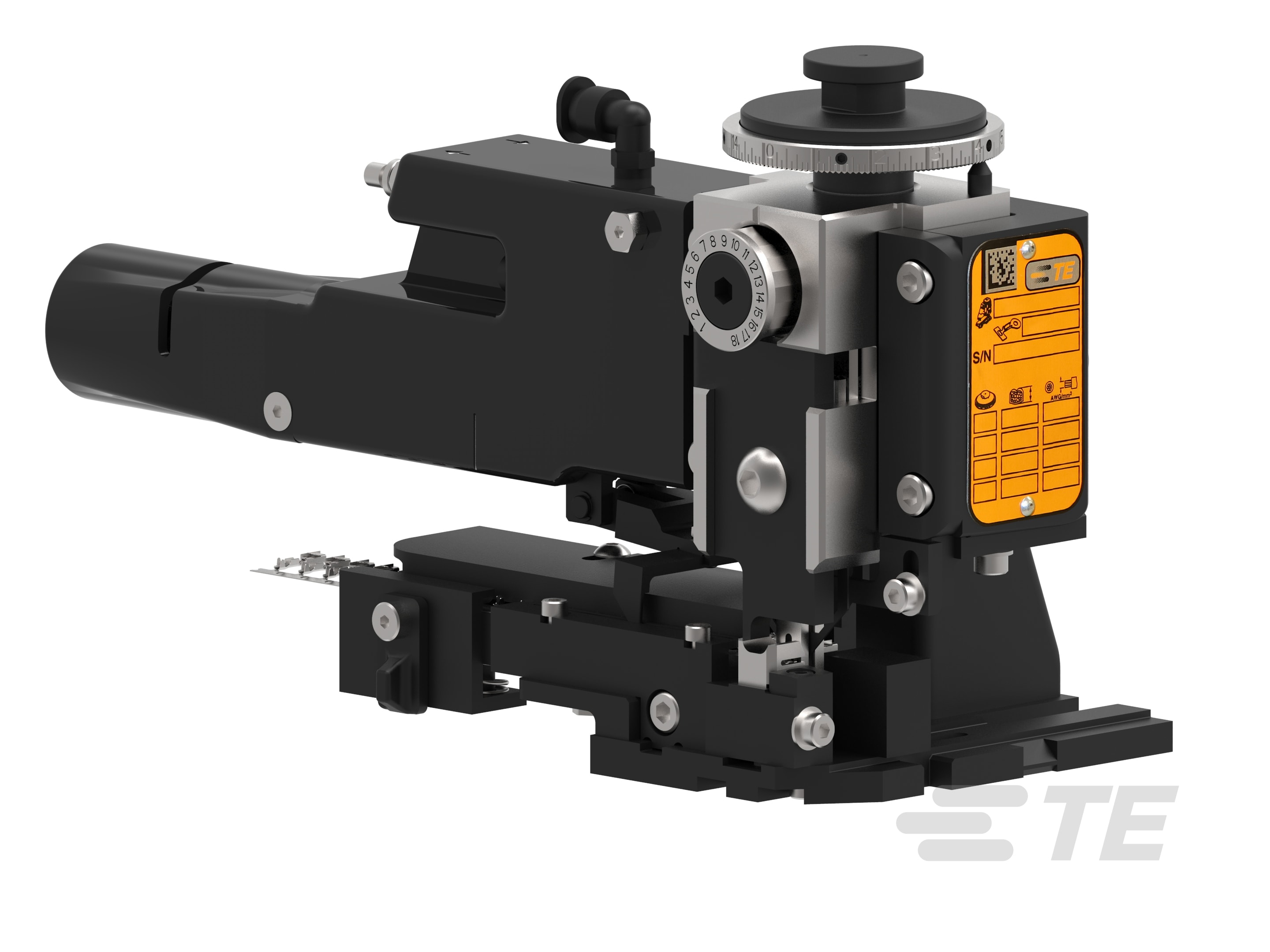

Application Tooling
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 07/20/2021 | P-21-020936 - Packing Spec Changes. Paper reel: Standardization from dobule flute Φ227mm core to single flute Φ156mm core. Reeling Qty: Reduces the process of replacing the reels and contributes to the efficiency of the work process. Outerbox: Standardization to standard box | Download |
| 09/30/2020 | P-20-018730 - Product Improvement. Transfer of stamping dies from Burgess Rd. to further improve our Supply Chain towards our customers. The transfer follows a strict procedure, which fully maintains quality, ability to supply and form-fit-function of the concerned products. The receiving manufacturing location operates under a certified quality management system in accordance with standard automotive requirements. | Download |
| 07/21/2018 | P-18-015502 - Product improvement. In order to meet all specification requirements to cover increasing market demand and better service our customers. | Download |
| 07/06/2018 | P-18-016050 - Product improvement Cancelled. Were hereby to inform you that PCN P-18-015502 will be cancelled. | Download |
