1676309-2
RN 0805 348R 0.1% 10PPM 1KRL

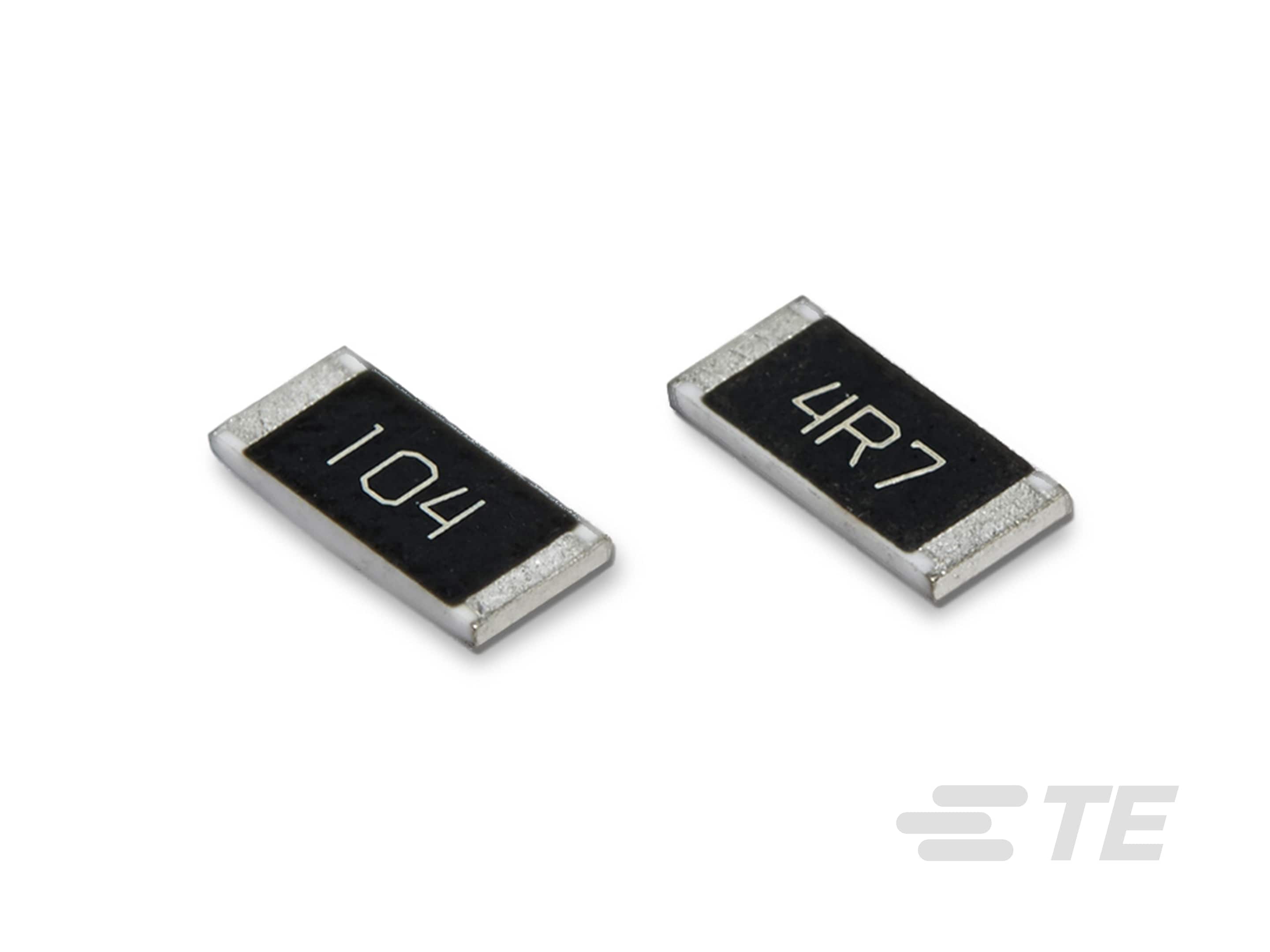

The 1676309-2, a high-precision surface mount resistor designed for exceptional performance in electronic applications. This thin film resistor, with a size code of 0805, boasts a low power rating of .1 W and a resistance of 348 Ω, ensuring reliable operation even in demanding conditions. With a tolerance of .1% and a low temperature coefficient of 10PPM, this resistor guarantees accurate and stable performance over time. Its compact dimensions of 2 x 1.25 x .55 mm and solder termination make it easy to install on circuit boards. Rated for a voltage of 100 V, it is suitable for a wide range of applications. RoHS non-compliant.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1676309-2 |
| Size Code: | 0805 |
| Power Rating: | .1 W |
| Termination Type: | Solder |
| Resistance: | 348 Ω |
| Rated Voltage: | 100 V |
| Mounting Style: | Surface Mount |
| Dimensions: | 2 x 1.25 x .55 mm |
| Product: | Surface Mount Resistors |
| Product Type: | Precision Resistor |
| Element Type: | Thin Film |
| Tolerance: | .1% |
| Number of Terminations: | 2 |
| SKU: | AMP1676309-2 |
| series: | Holswothy RN73 |
| Number of Resistors: | 1 |
| Resistance Range: | Up to 1kΩ Ω |
| Product Type: | Fixed Resistor |
| Temperature Coefficient: | ±10 ppm/°C |
| Part Alias: | 1676309-2 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
