| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1617038-9 |
| Mount Type: | Panel Mount |
| Coil Resistance: | 40 Ω |
| Coil Voltage: | 6 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | Solder Hook Terminals |
| Contact Current Rating: | 2 A |
| Input Voltage: | 6 VDC |
| Part Aliases: | M39016/22-021M |
| SKU: | AMP1617038-9 |
1617038-9
| ICC Number: | AMP1617038-9 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1617038-9 |
| ECAD Model: | |
Specifications
Detailed Description

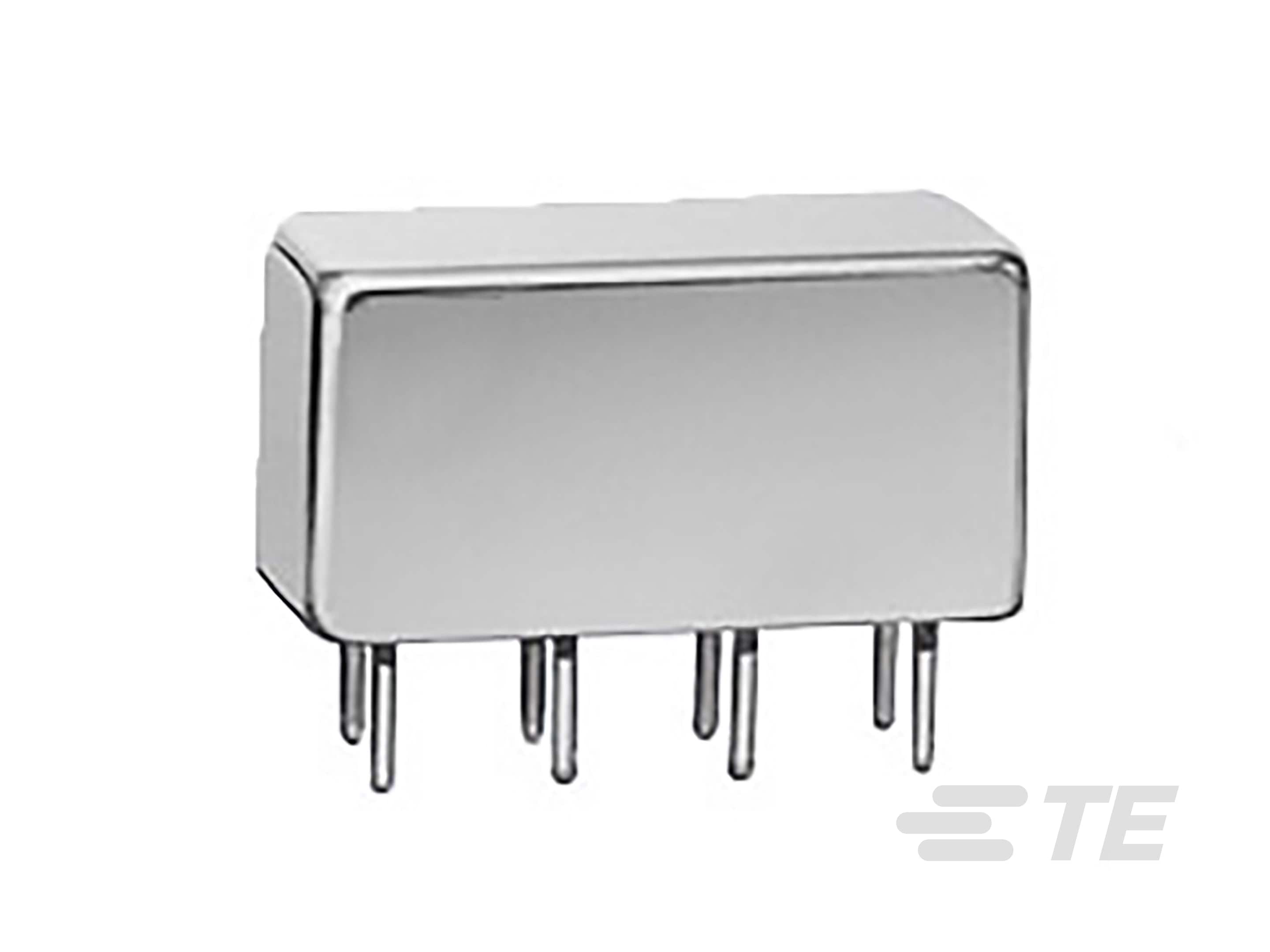

The HMB1131F01M, also known as M39016/22-021M, is a high-quality signal relay designed for reliable performance in a variety of applications. Featuring a durable panel mount construction, this DPDT relay offers 2 C/O contact configuration with a low coil resistance of 40 Ω, ensuring efficient operation. With a coil voltage of 6 VDC and a contact current rating of 2 A, it is suitable for controlling signal circuits with precision. The termination type is solder hook terminals, guaranteeing secure connections. While not RoHS compliant, this relay is a dependable choice for non-environmentally sensitive projects. The HMB1131F01M is a part of the Signal & Communication Relays category, with the part aliases M39016/22-021M and SKU 1617038-9.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 1617038-9 |
| Other Names: | M39016/22-021M |
