| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1418844-1 |
| Termination Method: | Crimp |
| Operating Temperature Range: | -40 - 130 °C, -40 - 266 °F |
| Wire Size: | 22 - 24 AWG, .25 - .35 mm² |
| Crimp Type: | F-Crimp |
| Terminal Primary Locking Feature: | Clean Body |
| Terminal / Splice Type: | Receptacle |
| Product: | Automotive, Truck, Bus, & Off-Road Terminals |
| SKU: | AMP1418844-1 |
| series: | MCON Interconnection System |
| Interface Plating: | Tin (Sn) |
| Mating Tab Thickness: | .6 mm / .024 in |
| Mating Tab Width: | 1.2 mm / .047 in |
| Wire Insulation Diameter: | 1.1 - 1.75 mm / .043 - .069 in |
| Wire Size Search: | 22 AWG / .25 mm² / .3 mm² / .35 mm² |
| Terminal Transmits: | 0 - 24 A (Low Power) |
| Wire Type: | Copper |
| Sealable: | Yes |
| Receptacle Style: | 180° |
1418844-1
| Heilind Number: | AMP1418844-1 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1418844-1 |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the MCON 1.2 CB REC SWS SN, a high-quality automotive terminal designed for reliable performance in harsh environments. With a crimp termination method and a wide operating temperature range of -40 to 130°C (-40 to 266°F), this terminal is perfect for use in a variety of automotive, truck, bus, and off-road applications. Suitable for 22-24 AWG (0.25-0.35 mm²) wire sizes, it features a secure F-Crimp design with a Clean Body primary locking feature for added durability. This RoHS-compliant terminal is a must-have for any automotive project requiring a dependable and long-lasting electrical connection.
Application Tooling
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 964972-1 |  | |
 | TE Connectivity 967067-1 | | |
 | TE Connectivity 2098582-1 | | |

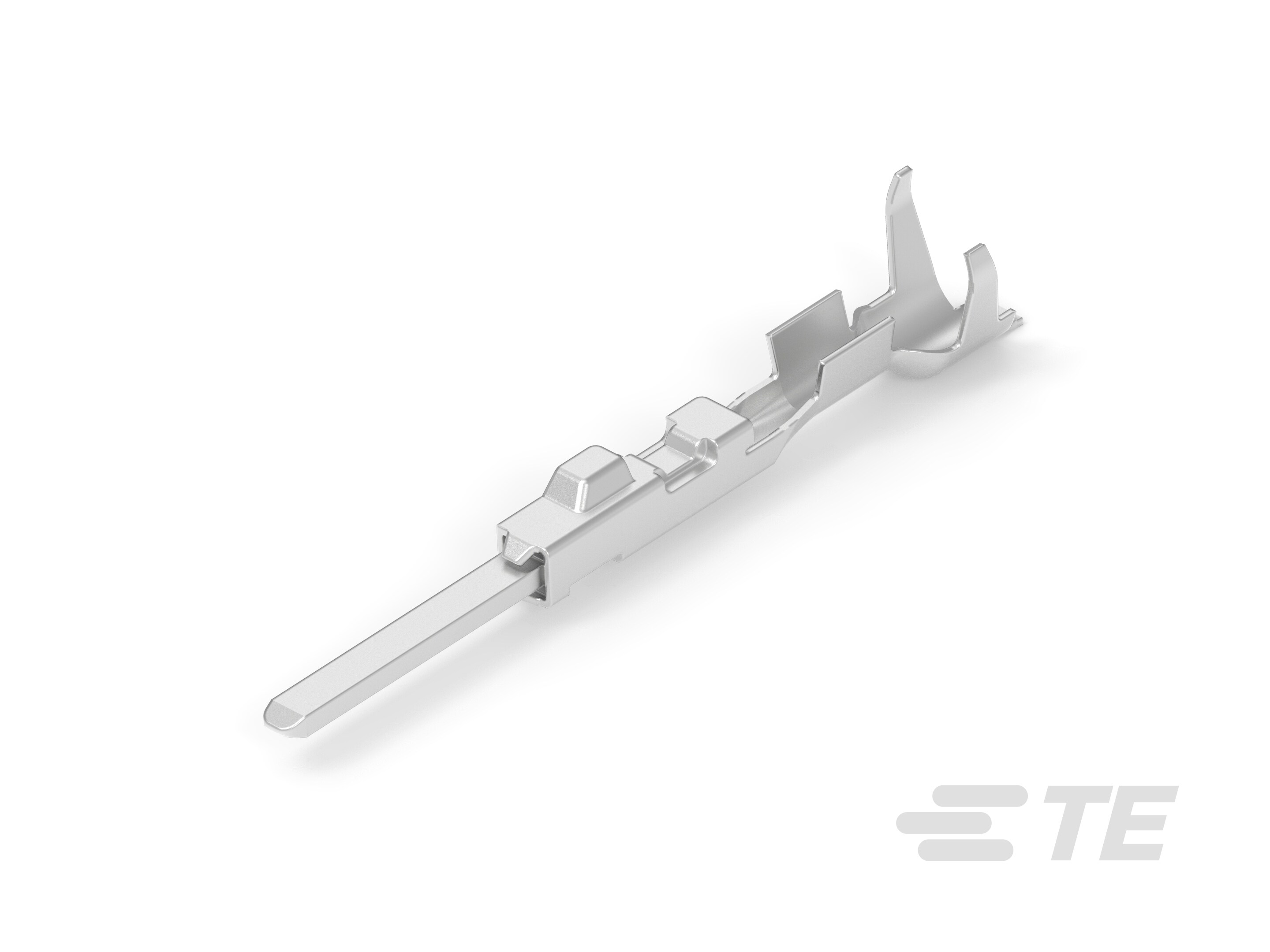

 | TE Connectivity 2141116-1 | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/20/2024 | P-23-025379 - MOQ & DU Change. To inform you about a change in delivery unit & minimum order quantity (MOQ) impacting PNs listed below in this PCN. As of February 20, 2024 we will increase the delivery unit & the minimum order quantity according to attached file. The order quantity should therefore be not less than the MOQ and should be dividable through the MOQ. Dimensions and material of product and shipping box will stay the same. The change has no impact to form-fit-function. TE Change process follows a strict procedure, which fully maintains quality and ability to supply. The product in scope of this PCN is TE general sales / catalogue product, therefore TE reserves the right to determine delivery unit & MOQ. No PPAP will be submitted for this PCN. It is kindly requested to adjust order quantities before the activation on February 20, 2024 to avoid blocked orders in case adjustments have not taken place in time. | Download | |||
| 04/21/2023 | P-22-023798 - Product Improvement. Inserts adjustment to improve mold performance. Transfer tool from EMP to HMO to keep production. | Download | |||
| 03/31/2023 | P-23-023963 - Additional Die added. TE is informing you about the planned delivery of listed PNs from additional die 11-1935134 in China (Suzhou plant) which is currently serving predominantly regional demands. In the new target supply setup, stated PNs are delivered to EMEA customers from both the currently released production plant(s) and, additionally, from the additional die out of our Suzhou plant. | Download | |||
| 03/31/2023 | P-23-023964 - Additional Die added. TE is informing you about the planned delivery of listed PNs from additional die 11-1942565 in China (Suzhou plant) which is currently serving predominantly regional demands. In the new target supply setup, stated PNs are delivered to EMEA customers from both the currently released production plant(s) and, additionally, from the additional die out of our Suzhou plant | Download | |||
| 12/26/2022 | P-22-023797 - Product Improvement. To continue supporting customer demand it is important that we qualify all global supply sources of product to drive quicker supply chain recovery. The scope is to approve the tool that runs in our China region for parts that are currently purchased to aid in speedy recovery of parts and have a greater ability to service demand spikes in the future | Download | |||
| 10/22/2022 | P-22-023438 - Shipping Point Change. This change is for customers from North America only. Change the shipping point from EP20 and WCDC to HL20 | Download | |||
| 03/25/2021 | P-21-020510-2 - New Specification. TE Suzhou Process Label scan system update. TE Suzhou label Layout optimize and QR Code & Barcode optimize Barcode change to LT(3S) CODE QR code change to Part Number+ Package QTY+ PO Number+ Ver +date code+ Serial Number（0001~9999） This label change Not accept re-submit PPAP/PSW request | Download | |||
| 02/25/2021 | P-21-020510 - New specification, New specification. TE Suzhou label Layout opƟmize and QR Code & Barcode opƟmize Barcode change to LT(3S) CODE QR code change to Part Number+ Package QTY+ PO Number+ Ver +date code+ Serial Number（0001~9999） This label change Not accept re-submit PPAP/PSW request | Download | |||
| 02/01/2021 | P-21-020362 - New Production Tool Duplication.we hereby inform you about a new duplication production tool (11-1942565 ) in TE Suzhou plant for production , TE part number 1670146-1&1670146-3 &1418844-1&1418844-3,This die capability only cover Asia-Pacific market currently. EMEA customer do not need to change to China part, only keep original EMEA part. | Download | |||
