| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1-794617-0 |
| Series: | Micro MATE-N-LOK |
| Housing Material: | Nylon 66/6 |
| Number of Rows: | 2 |
| Mount Type: | Cable Mount (Free-Hanging) |
| Termination Method: | Crimp |
| Pitch: | .118 in, 3 mm |
| Voltage: | 250 V AC, 250 V DC |
| Contact Type: | Socket |
| Row Spacing: | .118 in, 3 mm |
| Package Quantity: | 1 |
| Number of Positions: | 10 |
| Housing Color: | Black |
| GPL: | 239 |
| Packaging: | Package |
| Operating Temperature Range: | -40 - 105 °C, -40 - 221 °F |
| Circuit Application: | Power & Signal |
| Sealable: | No |
| GPL Description: | Appliances |
| Connector and Contact Terminate To: | Wire & Cable |
| Product Code: | A310 |
| Connector System: | Wire to Board, Wire to Wire |
| CSA Agency Certification: | LR7189 |
| Connector Product Type: | Housing |
| ECCN: | EAR99 |
| Contact Retention: | Without |
| Glow Wire Rating: | Standard Part - Not Glow Wire |
| VDE Tested: | Yes |
| Connector and Housing Type: | Receptacle |
| Standards Met: | CSA UL |
| Material Flammability Standard: | UL 94V-0 |
| Part Aliases: | 1-794617-0 BACA-AMP-136 |
| SKU: | AMP1-794617-0 |
1-794617-0
Specifications
Detailed Description
Introducing the Micro MATE-N-LOK 1-794617-0, a CSA and UL certified housing for power and signal applications. With two rows and 10 positions featuring crimp termination sockets, this black Nylon 66/6 connector offers reliable performance in a cable mount setup. Operating at temperatures ranging from -40 to 105°C, it is suitable for a variety of environments. VDE tested and RoHS compliant, this connector ensures safety and environmental responsibility. Perfect for appliances and other wire-to-wire or wire-to-board connections, the 1-794617-0 guarantees quality and performance.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 1-794610-1 | MICRO MNL RPT CNT,LS PC 15AU L |  |
 | TE Connectivity 1-794617-2 | 12POS,MICRO MNL,RCPT HSG | |
 | TE Connectivity 1-794617-6 | 16POS,MICRO MNL,RCPT HSG | |
 | TE Connectivity 104257-1 | 02 MTE RCPT HSG SR LATCH .100 | |
 | TE Connectivity 104257-3 | 04 MTE RCPT HSG SR LATCH .100 | |
 | TE Connectivity 1445022-2 | MICRO MNL RECEPT HSG SINGLE R | |
 | TE Connectivity 1445022-3 | MICRO MNL RFECEPT HSG SINGLE R | |
 | TE Connectivity 1445022-4 | MICRO MNL RFECEPT HSG SINGLE R | |
 | TE Connectivity 1445022-5 | MICRO MNL RFECEPT HSG SINGLE R | |
 | TE Connectivity 1445022-6 | MICRO MNL RFECEPT HSG SINGLE R | |
 | TE Connectivity 1445049-2 | FREE HANG SNGL ROW HSG 2 POS | |
 | TE Connectivity 170311-1 | CONTACT FOR DRAWER CONN | |

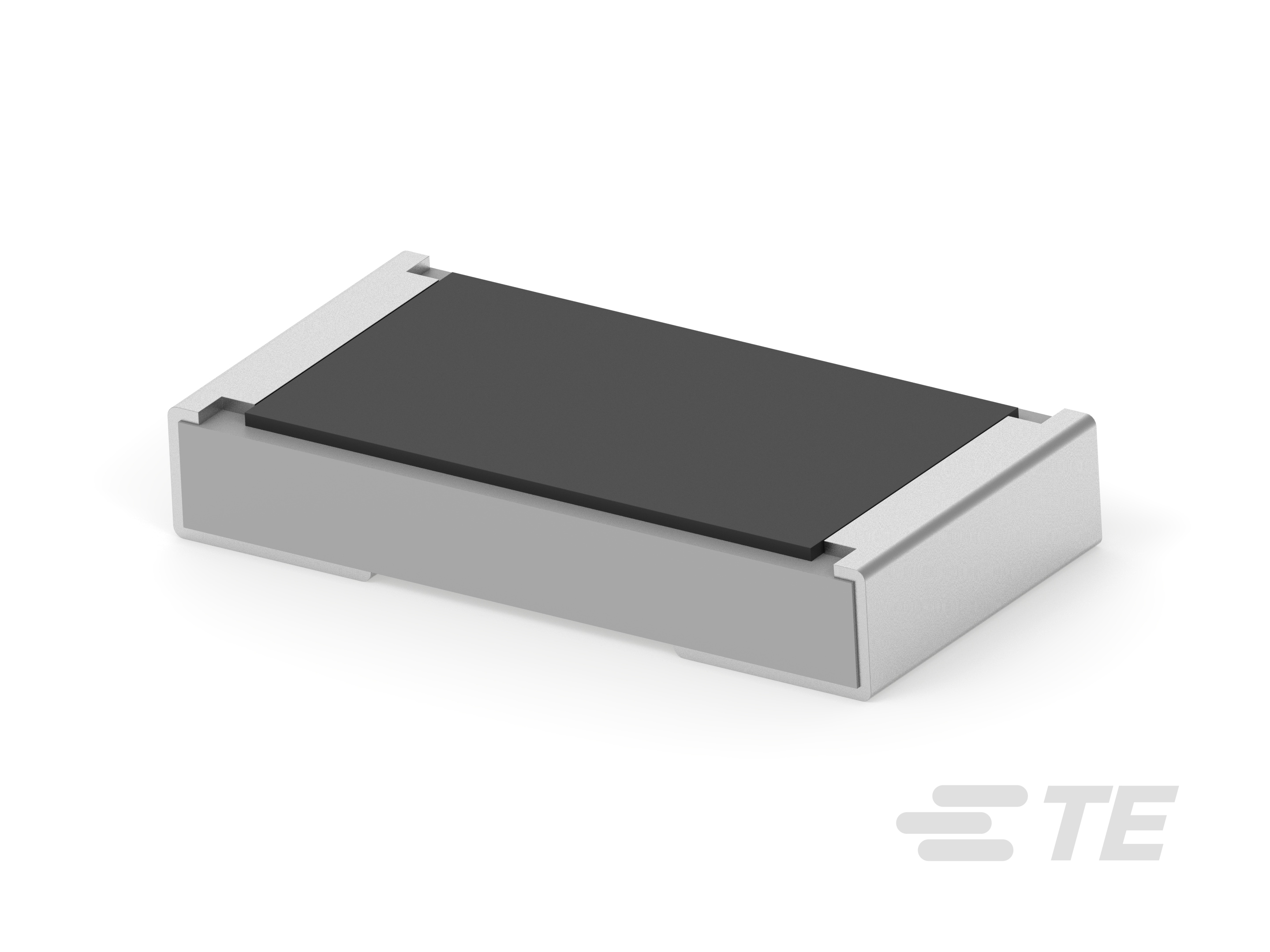

 | TE Connectivity 2-2176230-6 | 3522 100R 5% 3W | |
 | TE Connectivity 205203-3 | CRIMP SNAP RCPT ASSY,SIZE 1 | |
 | TE Connectivity 350777-1 | 02P UMNL PLUG HSG | |
 | TE Connectivity 794617-4 | 4POS,MICRO MNL,RCPT HSG | |
 | TE Connectivity 794617-6 | 6POS,MICRO MNL,RCPT HSG | |
 | TE Connectivity 794617-8 | 8POS,MICRO MNL,RCPT HSG | |
For Use With
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 03/30/2022 | PCN-22-130788 - Revision Update. Please be aware the listed documents have been updated to improve clarity (not affecting specification of product). Before:PN 3-794617-6 AND 3-...-0 revision J, PN 3-...-8 revision L and all other dashes PNs revision J1 After: all dashes revision M | Download | |||
| 10/15/2019 | P-19-017592 - Product improvement. Change of shipping location from HL20 to WCDC. | Download | |||
| 12/31/2018 | E-18-011946 - Product Improvement. The symbol update is to eliminate errors in production and to improve tool change over time. No change in Form, Fit and function. | Download | |||
| 10/01/2018 | P-18-016264 - Product Improvement. Shipping location for parts attached will be changed to TE's HL20 warehouse in Hermosillo, Mexico. | Download | |||
| 02/15/2017 | E-16-013818 - Product Improvement. A product improvement is being implemented on all Micro MATE-N-LOK receptacle plug housings. The change enhances the housing silos with additional material and optimized step height to provide improved terminal retention. This modification will have no impact to fit or function in product applications, and no change to product specifications. | Download | |||
| 04/15/2015 | E-14-019269 - Product improvement. Increasing moisture per TE moisture spec and changing packaging to heat sealed. To improve product performance (No form fit function change involved). | Download | |||
