| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity ORWH-SH-105D1F000 |
| Amperage: | 15 A |
| Mount Type: | Printed Circuit Board |
| Contact Material: | Silver Zinc Oxide (AgZnO) |
| Number of Poles: | 1 |
| Coil Resistance: | 70 Ω |
| Coil Current: | .071 A |
| Coil Voltage: | 5 VDC |
| Maximum Output Voltage: | 277 V |
| Maximum Switching Voltage: | 277 VAC, 28 VDC |
| Termination Type: | Printed Circuit Terminals |
| Contact Voltage: | 250 VAC, 28 VDC |
| Operating Temperature Range: | -22 - 158 °F, -30 - 70 °C |
| Contact Arrangement: | 1 Form C (CO) |
| Part Aliases: | ORWH-SH-105D1F,000 |
| SKU: | AMP1-1721150-0 |

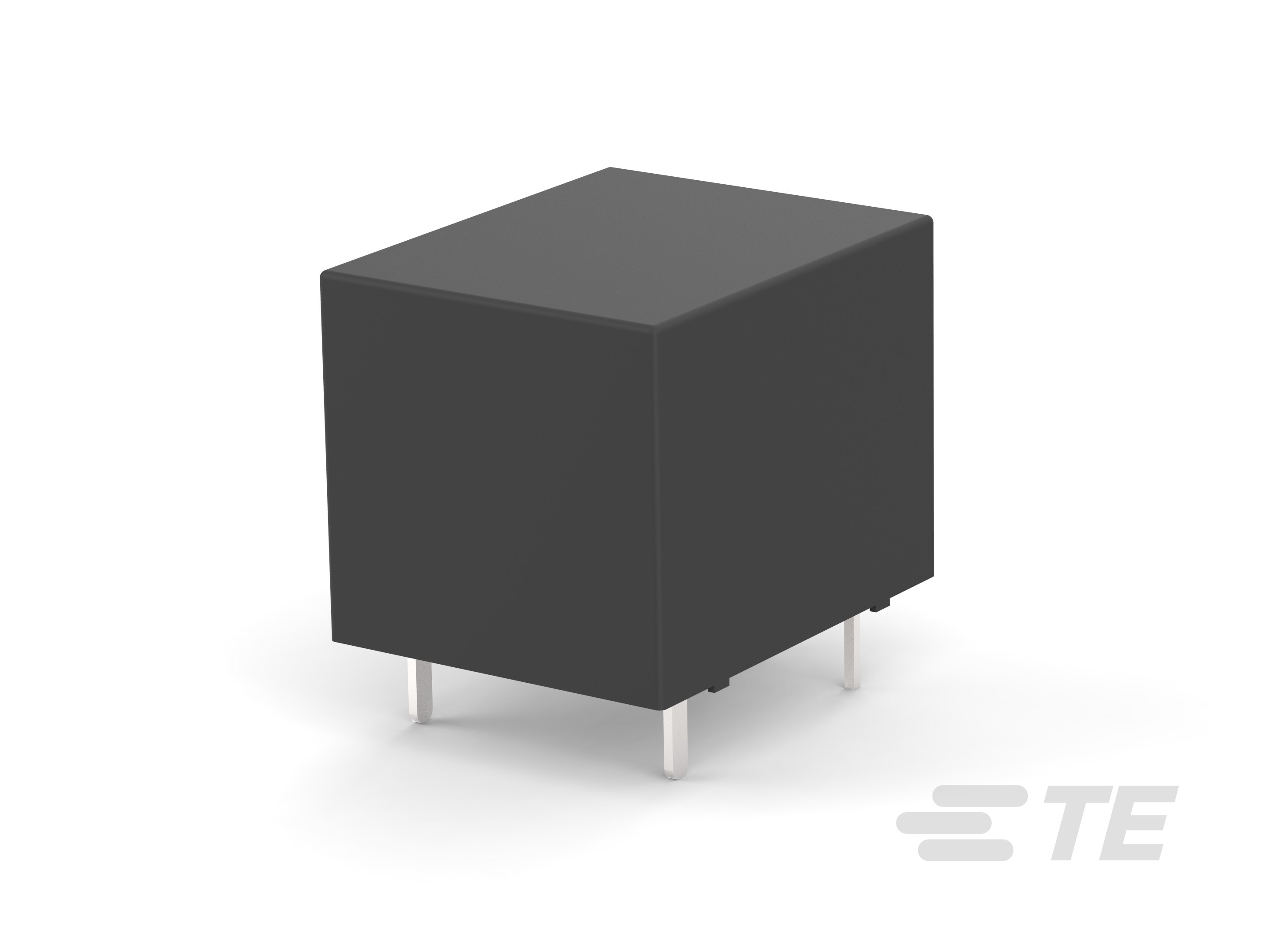

ORWH-SH-105D1F000
Specifications
Detailed Description
Introducing the ORWH-SH-105D1F,000 Power Relay, a high-performance electronic component designed for printed circuit board applications. With a low amperage of 15 A, this relay features a single pole configuration and contact material made of Silver Zinc Oxide (AgZnO) for enhanced conductivity. Operating at a coil voltage of 5 VDC, it offers a maximum output voltage of 277 VAC, making it suitable for a wide range of power switching tasks. The ORWH-SH-105D1F,000 is RoHS compliant and operates efficiently in temperatures ranging from -30 to 70 °C, making it a reliable choice for various industrial and commercial applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | ORWH-SH-105D1F000 |
| Other Names: | ORWH-SH-105D1F 000 |
