| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1-1623789-6 |
| Mount Type: | Radial Leaded |
| Power Rating: | 7 W |
| Termination Type: | Tinned Copper Leads |
| Resistance: | 4.7 Ω |
| Operating Temperature Range: | -55 - 250 °C |
| Dimensions: | 39 x 13 x 9 mm |
| Element Type: | Wirewound |
| Tolerance: | 5% |
| Number of Terminations: | 2 |
| Temperature Coefficient: | ±300 ppm/°C |
| SKU: | AMP1-1623789-6 |
| series: | CGS SQ |
| Number of Resistors: | 1 |
| Resistance Class: | Up to 1kΩ |
| Product Type: | Fixed Resistor |
| Resistor Type: | Power Resistor |
| Supplier Product: | Through-Hole Resistors |
| Part Alias: | 1-1623789-6 |
1-1623789-6
| Heilind Number: | AMP1-1623789-6 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1-1623789-6 |
| ECAD Model: | |
Specifications
Detailed Description

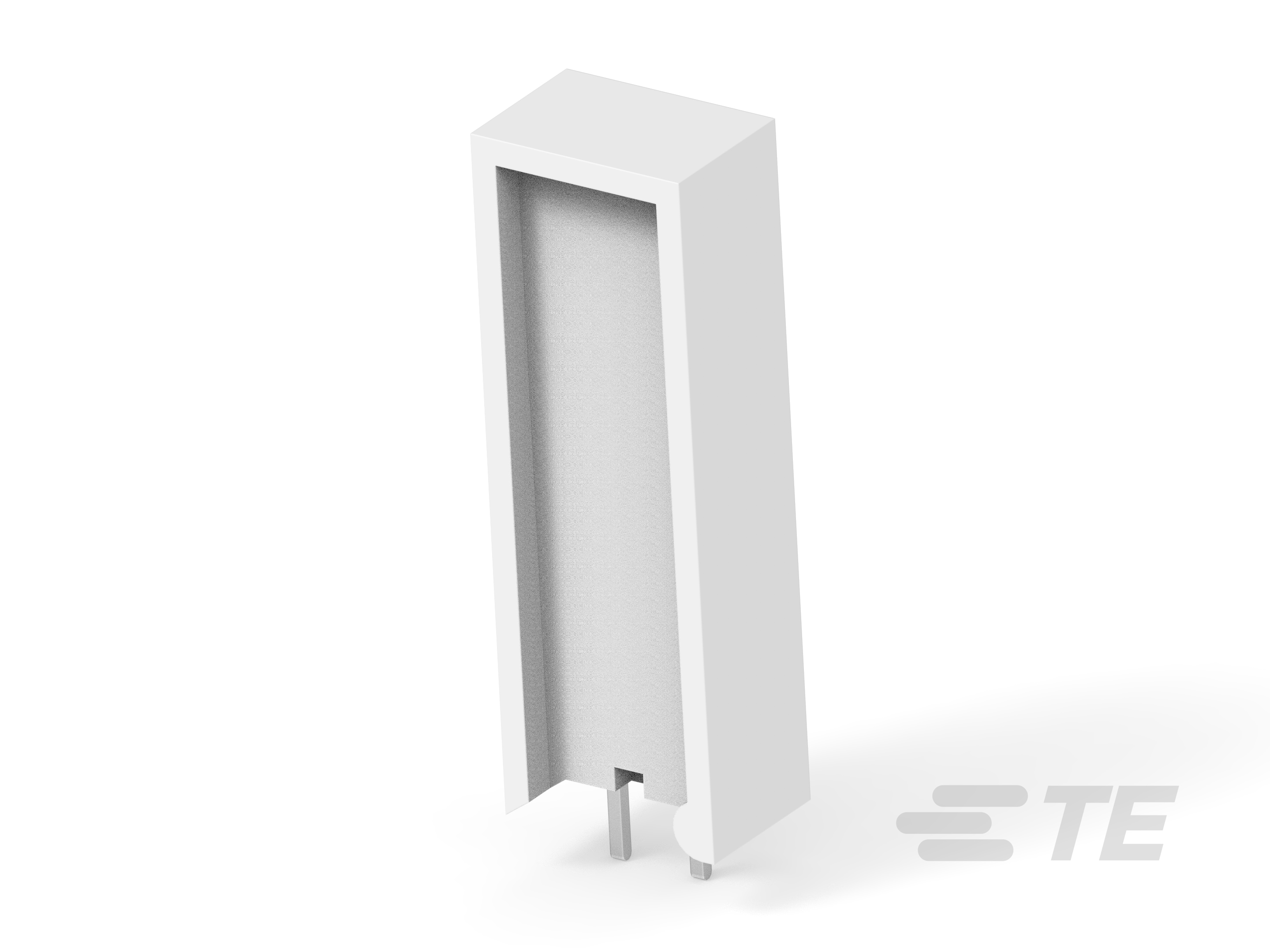

Introducing the 1-1623789-6, a high-performance SQM7 4R7 5% (WIRE) radial leaded resistor. With a robust power rating of 7 W, this resistor is designed for reliable and efficient operation in a wide range of electronic applications. Featuring tinned copper leads for easy and secure installation, it offers a low resistance of 4.7 Ω with a tolerance of 5%. Built to withstand extreme conditions, the 1-1623789-6 has an operating temperature range of -55 to 250 °C and a temperature coefficient of ±300 ppm/°C. Its compact dimensions of 39 x 13 x 9 mm and wirewound element type make it ideal for space-constrained environments. Please note, this product is not RoHS compliant.
