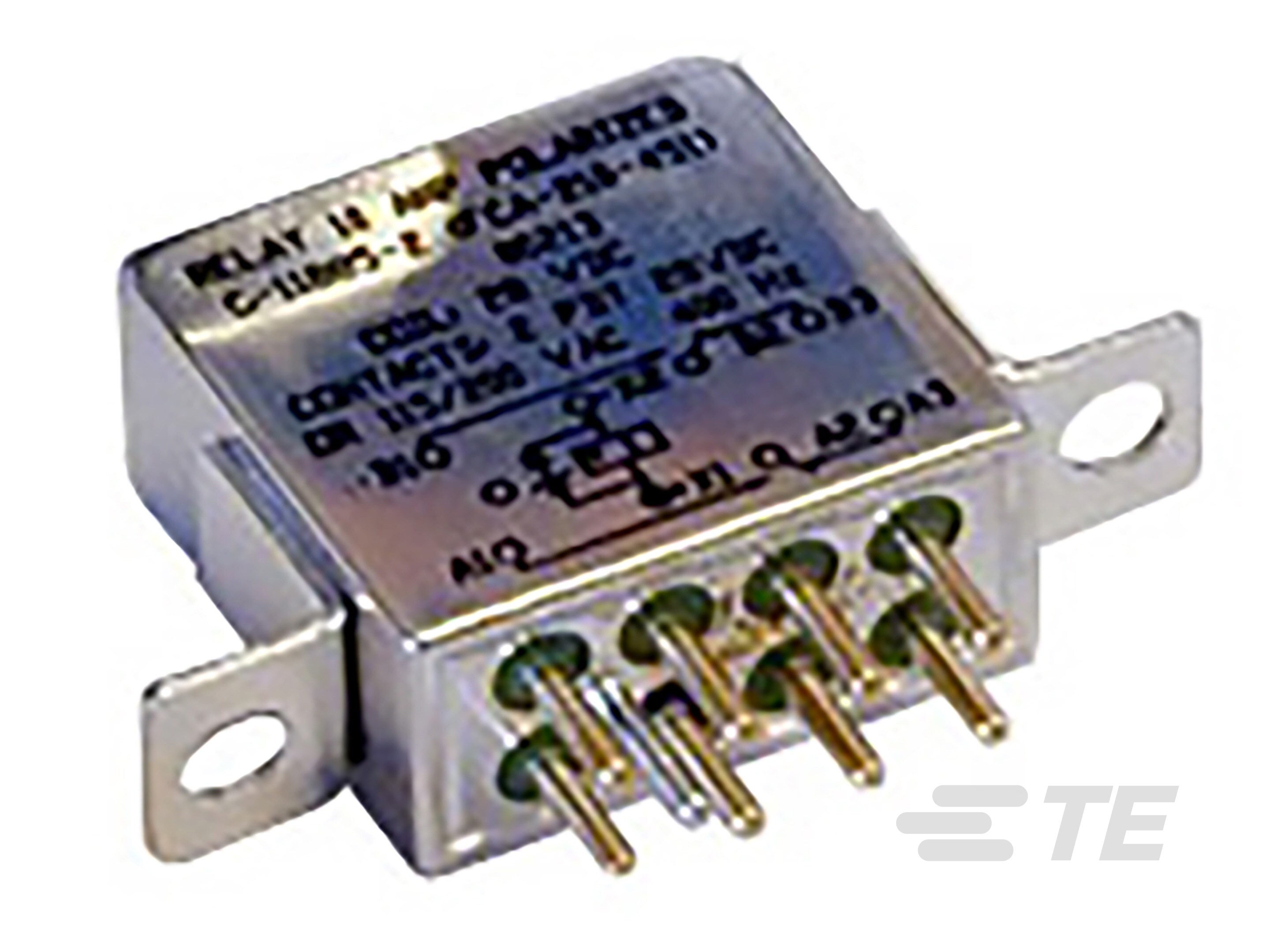

FCA-210-1019M
FCA-210-1019M=M83536/10-019M
Part Aliases: TE Connectivity M83536/10-019M
The FCA-210-1019M=M83536/10-019M, a high-performance power relay designed for rugged industrial applications. This relay boasts a low amperage rating of 10 A, making it ideal for controlling power to sensitive electronic components. Featuring a contact arrangement of 2 Form C (DPDT) with 2 C/O contacts, it offers versatile switching capabilities. Constructed with silver cadmium oxide (AgCdO) contacts and rated for a wide operating temperature range of -70 to 125 °C, this relay ensures reliable performance in harsh environments. With RoHS compliance and solder pin terminals for easy installation, the FCA-210-1019M=M83536/10-019M is the perfect choice for demanding power control tasks.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity FCA-210-1019M |
| Amperage: | 10 A |
| Mount Type: | No Brackets |
| Contact Material: | Silver Cadmium Oxide (AgCdO) |
| Coil Resistance: | 320 Ω |
| Coil Voltage: | 28 VDC |
| Operating Temperature Range: | -70 - 125 °C |
| Terminal Configuration: | Solder Pins |
| Contact Arrangement: | 2 Form C, DPDT, 2 C/O |
| Part Aliases: | M83536/10-019M |
| SKU: | AMP1-1617749-3 |
| series: | CII FCA-125 Series |
| Auxiliary Contacts: | Without |
| Terminal Plating: | Tin-Lead |
| Actuating System: | DC |
| Coil Magnetic System: | Polarized, Monostable |
| Shock: | 200G's, 6ms |
| Vibration: | 30G's, 10 - 3000Hz |
| Back EMF Suppression: | With |
| Coil Suppression Diode: | With |
| Product Type: | Relay |
| Relay Type: | Military/Aerospace Mid-Range |
| Enclosure Type: | Hermetically Sealed |
| Supplier Product: | Mid-Range Relays |
| Part Alias: | 1-1617749-3 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 01/01/2018 | P-17-014880 - Manufacturing Location Change. Following Part Numbers will be transferred from TE Connectivity Dinkelsbuehl (D) to TE Connectivity Oostkamp. | Download |
